Yardistry YM12842 - Lower Shelf Assembly - Back Wall

78 support@yardistrystructures.com
F20.7

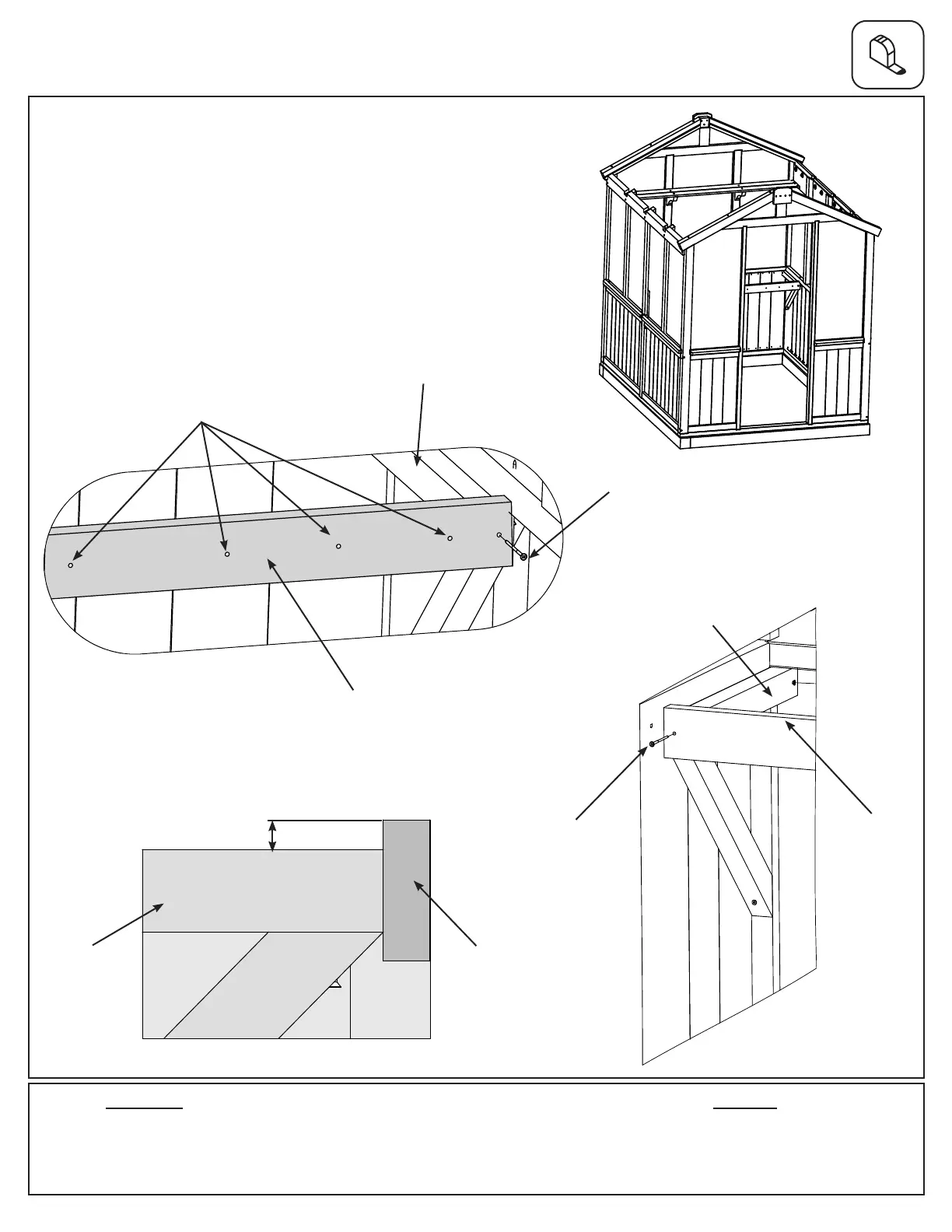

C: Place one (1132) Shelf Front against each
(1137) Long Shelf Joist so it sits 5/8” (1.59 cm)
above the joists. Notice the four holes are on the
same side as where the Side Wall Shelf will go.
Attach (1132) Shelf Front to (1137) Long Shelf
Joists with two #8 x 2-1/2” Wood Screws. (F20.5,
F20.6, F20.7 and F20.8)
F20.5
F20.6
Step 20: Lower Shelf Assembly - Back Wall
Part 3
Back Wall
Side Shelf Side
Notice 4 holes on
same side as Side
Wall Shelf
#8 x 2-1/2”
Wood Screw
(1137) Long
Shelf Joist
(1137) Long
Shelf Joist
(1132) Shelf Front
Hardware
2 x #8 x 2-1/2” Wood Screw
Wood Parts
1 x (1132) Shelf Front
5/8”
#8 x 2-1/2”
Wood Screw
(1132)
Shelf
Front
Roof removed
for clarity
F20.8
(1.59 cm)
(1137) Long
Shelf Joist
(1132)
Shelf
Front
