Step 2: Front Wall Assembly
Part 8

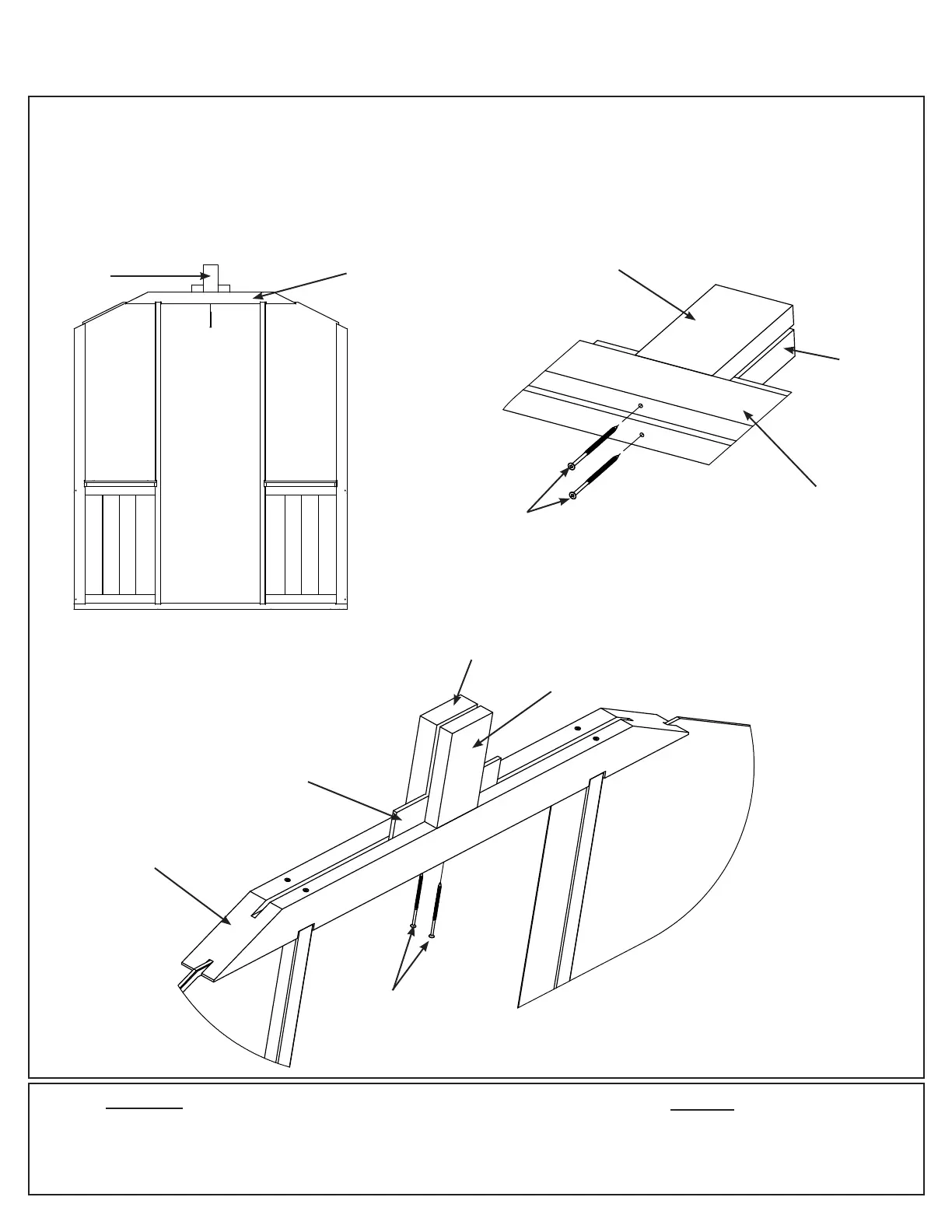

K: Place one (1121) Upright Inside and one (1122) Upright Outside centred on the top of (1143) Front Gable
Beam. Use one (1188) Guide Spacer in the grooves of (1143) Front Gable Beam for proper spacing of Uprights.
Attach Beam to Uprights with one #10 x 4” Wood Screw per upright. Remove (1188) Guide Spacer. (F2.17,
F2.18 and F2.19)
#10 x 4” ” Wood Screws
MAKE SURE TO USE GUIDE SPACER
FOR SEPARATION OF UPRIGHTS
INSIDE AND OUT.
#10 x 4” ” Wood Screws
MAKE SURE TO USE GUIDE SPACER
FOR SEPARATION OF UPRIGHTS
INSIDE AND OUT.
#10 x 4” ” Wood Screws
MAKE SURE TO USE GUIDE SPACER
FOR SEPARATION OF UPRIGHTS
INSIDE AND OUT.
Wood Parts
1 x (1121) Upright Inside
1 x (1122) Upright Outside
(1188) Guide
Spacer
Guide Spacer to sit in grooves of
Front Gable Beam for proper spacing
of Uprights, then to be removed.
Hardware
2 x #10 x 4” Wood Screw
#10 x 4”
Wood Screw
(1143) Front
Gable Beam
F2.17
(1143) Front
Gable Beam
(1143) Front
Gable Beam
#10 x 4”
Wood Screw
(1121) Upright
Inside
(1121)
Upright
Inside
(1122)
Upright
Outside
(1122)
Upright
Outside
(1122)
Upright
Outside
F2.18
F2.19
To Next Page
