Step 3: Back Wall Assembly
Part 11

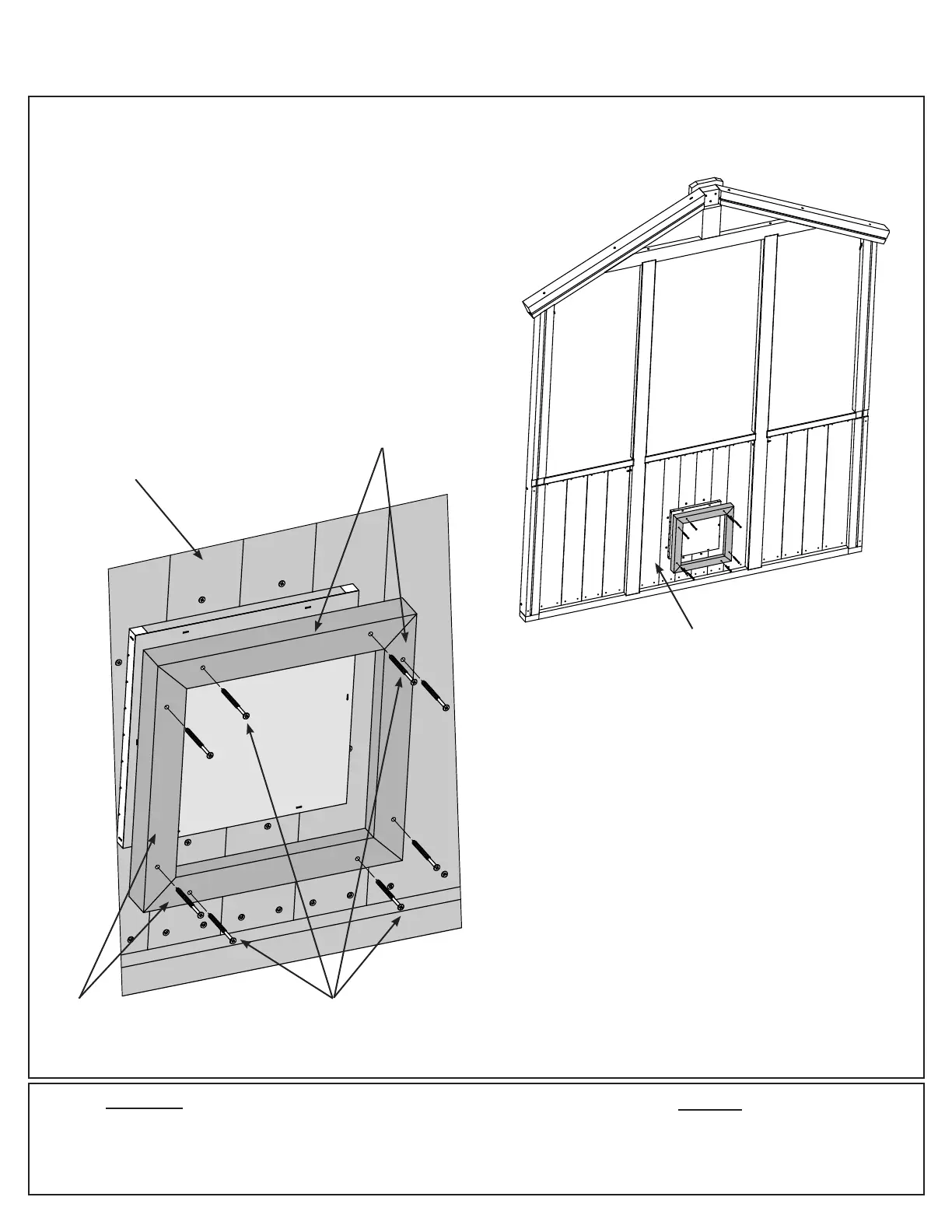

Q: On the inside of the frame attach four (1136) Inside Vent Trims around opening in (1155) Vent Wall Panel
using two #8 x 2-1/2” Wood Screws per trim. (F3.25 and F3.26)
#8 X 2-1/2” Wood Screws
Connects INSIDE VENT TRIM TO
VENT WALL PANEL
#8 X 2-1/2” Wood Screws
Connects INSIDE VENT TRIM TO
VENT WALL PANEL
Wood Parts
4 x (1136) Inside Vent Trim
Hardware
8 x #8 x 2-1/2” Wood Screw
#8 x 2-1/2”
Wood Screw
x 8
(1155) Vent
Wall Panel
(1155) Vent
Wall Panel
(1136) Inside
Vent Trim
(1136) Inside
Vent Trim
F3.25
F3.26
Inside View
