Step 8: Attach Corner Brackets
Part 2
Hardware
16 x #10 x 1-1/4” Pan Screw
Components
8 x Corner Bracket
#10 x 1-1/4”
Pan Screw
Corner
Bracket

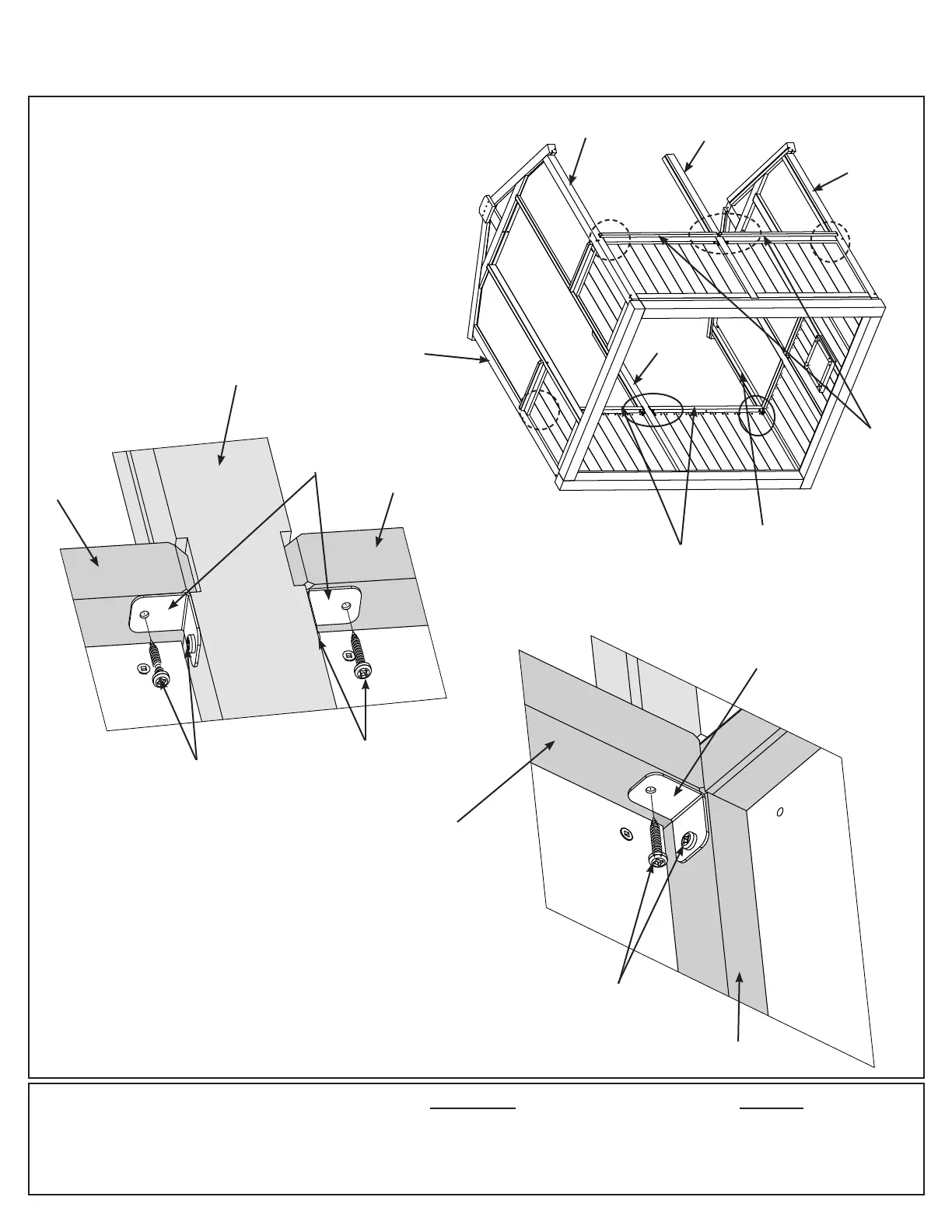

B: On the inside of the assembly,
underneath each (1107) Side Wall Sill,
using one Corner Bracket per corner
connect each (1108) Left Post, (1109)
Right Post and (1110) Mid Post to
each (1107) Side Wall Sill with two
#10 x 1-1/4” Pan Screws per bracket.
(F8.3, F8.4 and F8.5)
(1110) Mid
Post
(1109) Right Post
(1108) Left
Post
(1107) Side
Wall Sill
(1109) Right
Post
(1108) Left
Post
(1107) Side
Wall Sill
(1110)
Mid Post
F8.3
Left or Right
Post
F8.4
#10 x 1-1/4”
Pan Screw
(1110) Mid Post
(1107) Side
Wall Sill
(1107) Side
Wall Sill
(1107) Side
Wall Sill
F8.5
#10 x 1-1/4”
Pan Screw
Corner
Bracket
