#10 x 1-1/4” Pan Screws
Connects NYLON WASHER to the POLY-
CARB PANELS.
Prior to fastening the washers, attach the
PANEL EDGE to top of each POLYCARB
SIDE PANEL
Note: Space washers 2” from each edge
of post and cnetre the third one----
PRE-DRILL thru. each panel.
Repeat for all the other POLYCARB
SIDE PANELS
#10 x 1-1/4” Pan Screws
Connects NYLON WASHER to the POLY-
CARB PANELS.
Prior to fastening the washers, attach the
PANEL EDGE to top of each POLYCARB
SIDE PANEL
Note: Space washers 2” from each edge
of post and cnetre the third one----
PRE-DRILL thru. each panel.
Repeat for all the other POLYCARB
SIDE PANELS

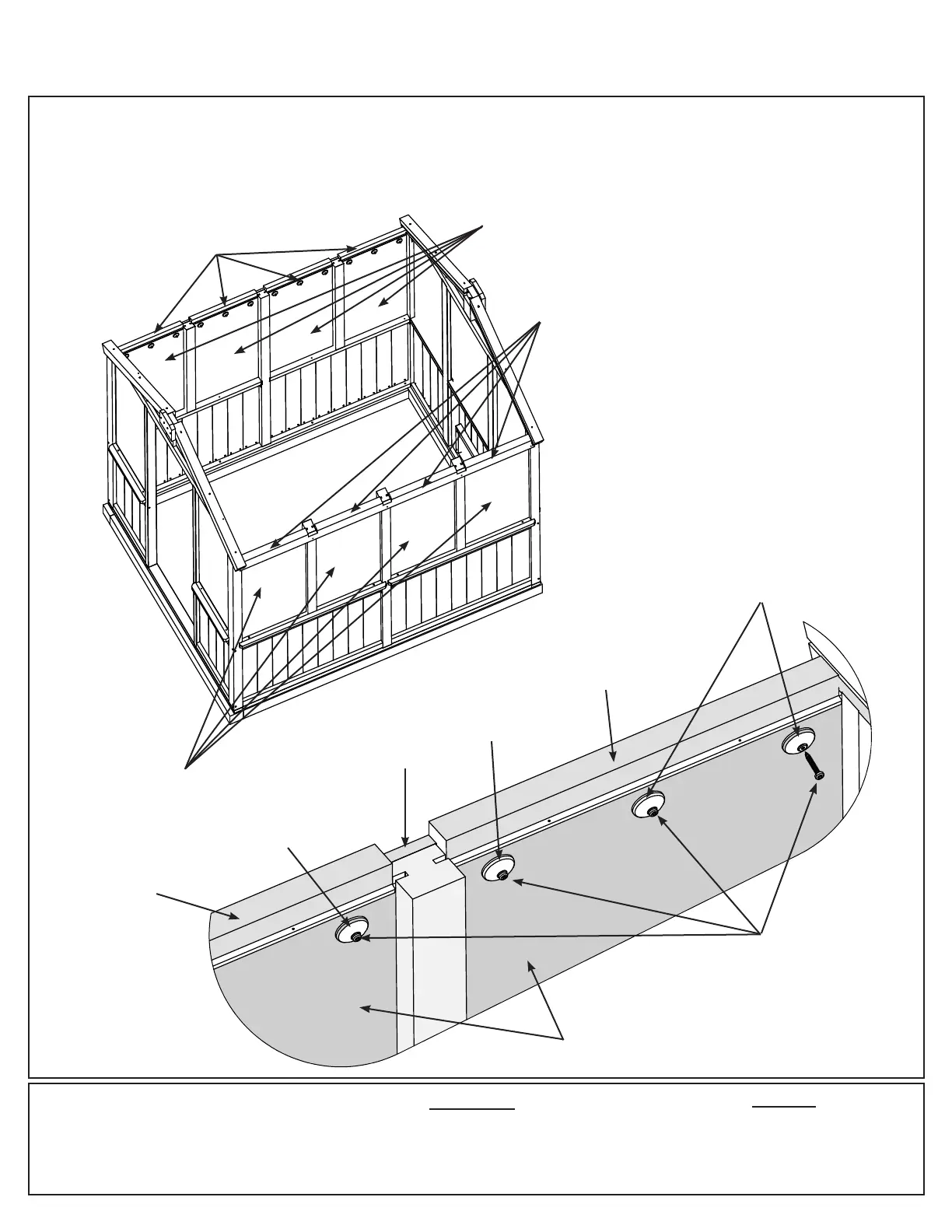

G: On the top of each Side Wall Panel place one PC U-Channel. (F11.9 and F11.10)
H: Attach each Side Wall Panel to (1125) Side Wall Tops using three #10 x 1-1/4” Black Pan Screws with
EPDM washers per panel. (F11.9 and F11.10)
Step 11: Side Wall Panel Assembly
Part 4
F11.9
Side Wall
Panel
(1125) Side
Wall Top
Side Wall
Panel
PC
U-Channel
PC
U-Channel
F11.10
PC
U-Channel
Side Wall
Panel
Hardware
24 x #10 x 1-1/4” Black Pan Screw
24 x EPDM Washer
PC U-Channel
EPDM
Washer
Components
8 x PC U-Channel
EPDM
Washer
EPDM
Washer
#10 x 1-1/4”
Black Pan Screw
To Next Page
