#8 X 2” Wood Screws
Connects INSIDE VENT BLOCK TO
MID RAFTERS
Must be ush to top of rafters and
tight to Vent Roof Peak
C: Flip the assembly over then on the inside of each (1114) Middle Roof Rafter, place one (1126) Inside Vent
(1126) Inside Vent Block to (1114) Middle Roof Rafters with three #8 x 2” Wood Screws per block. (F13.3 and
F13.4)
#8 X 2” Wood Screws
Connects INSIDE VENT BLOCK TO
MID RAFTERS
Must be ush to top of rafters and
tight to Vent Roof Peak
Step 13: Vent Roof Peak Assembly
Part 2

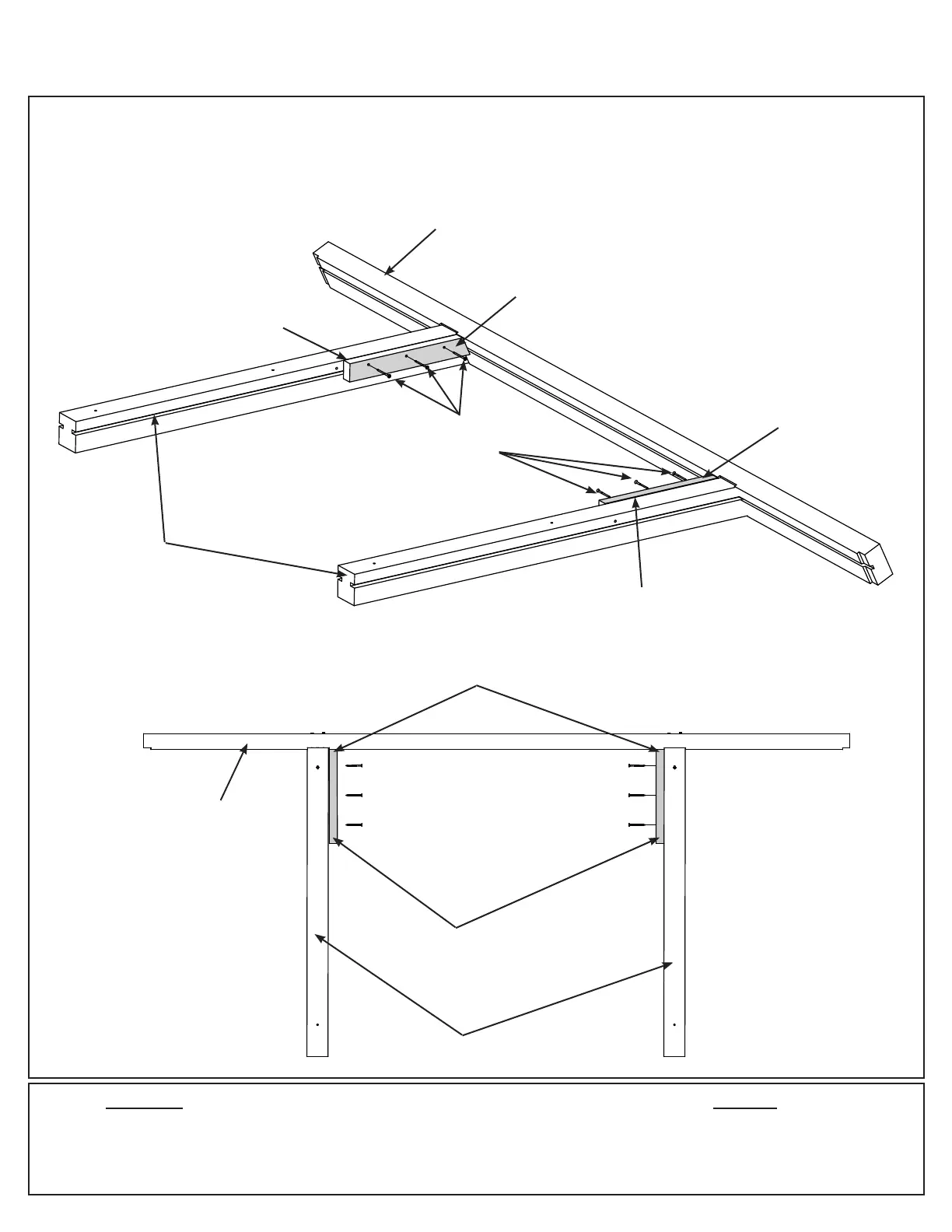

F13.3
F13.4
Hardware
(1114) Middle
Roof Rafter
Wood Parts
2 x (1126) Inside Vent Block 6 x #8 x 2” Wood Screw
(1124) Vent
Roof Peak
#8 x 2”
Wood Screw
(1126) Inside
Vent Block
(1126) Inside
Vent Block
(1126) Inside
Vent Block
(1114) Middle
Roof Rafter
(1124) Vent
Roof Peak
Tight
Flush
Flush
