58 support@yardistrystructures.com
E:

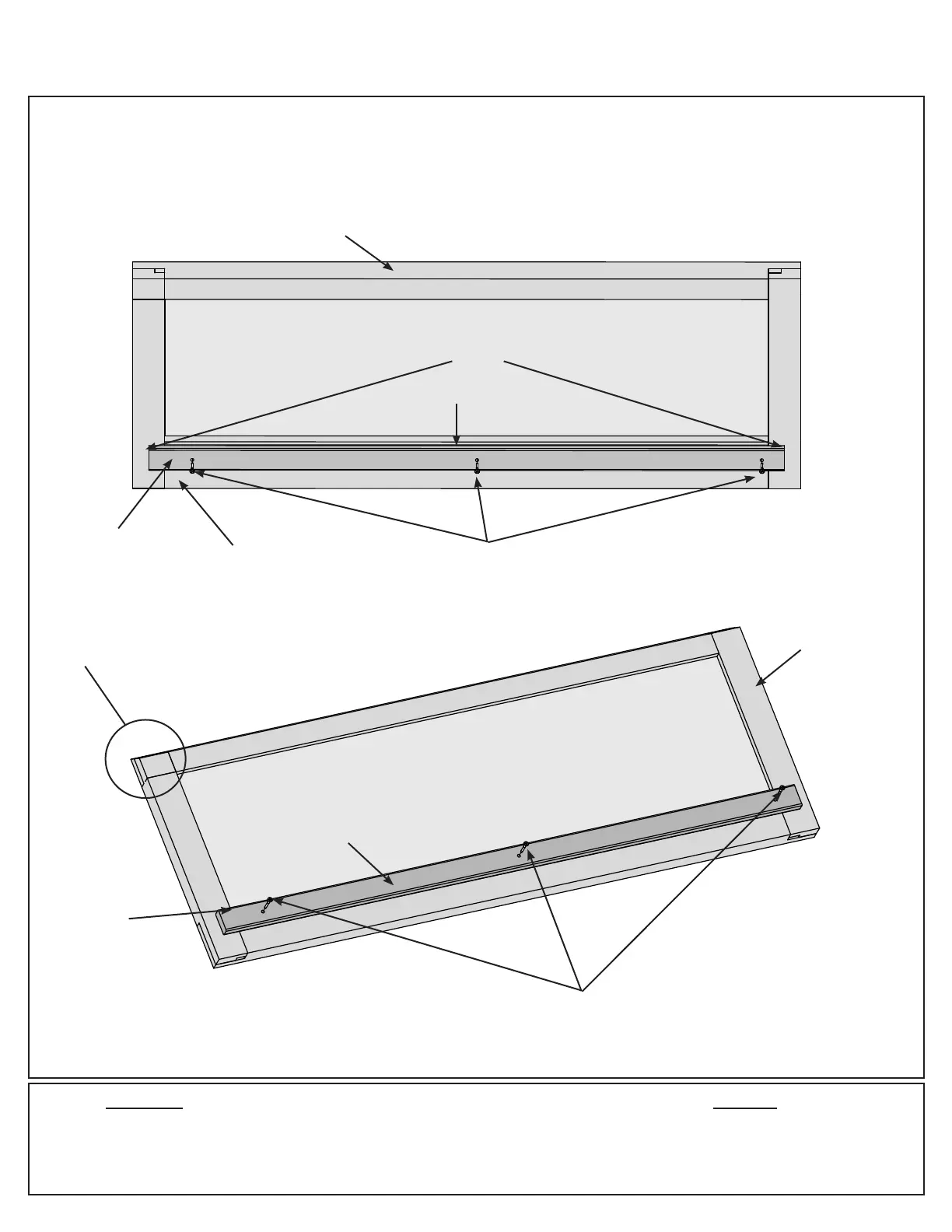

(1187) Vent Roof Panel Block with three #8 x 1-1/4” Wood Screws. (F13.7 and F13.8)
Step 13: Vent Roof Peak Assembly
Part 4
HardwareWood Parts
1 x (1170) Vent Roof Panel
1 x (1187) Vent Roof Panel Block
3 x #8 x 1-1/4” Wood Screw
#8 x 1-1/4”
Wood Screw
(1170) Vent
Roof Panel
(1170) Vent
Roof Panel
Flush
F13.7
F13.8
(1187) Vent
Roof Panel
Block
Flush
Centred
on panel
#8 x 1-1/4”
Wood Screw
(1187) Vent Roof
Panel Block
Top
Top
Bottom
Bottom
Notice angle
orientation
and at top
Bottom Board
