Step 14: Attach Roof Assemblies to Frame
Part 4

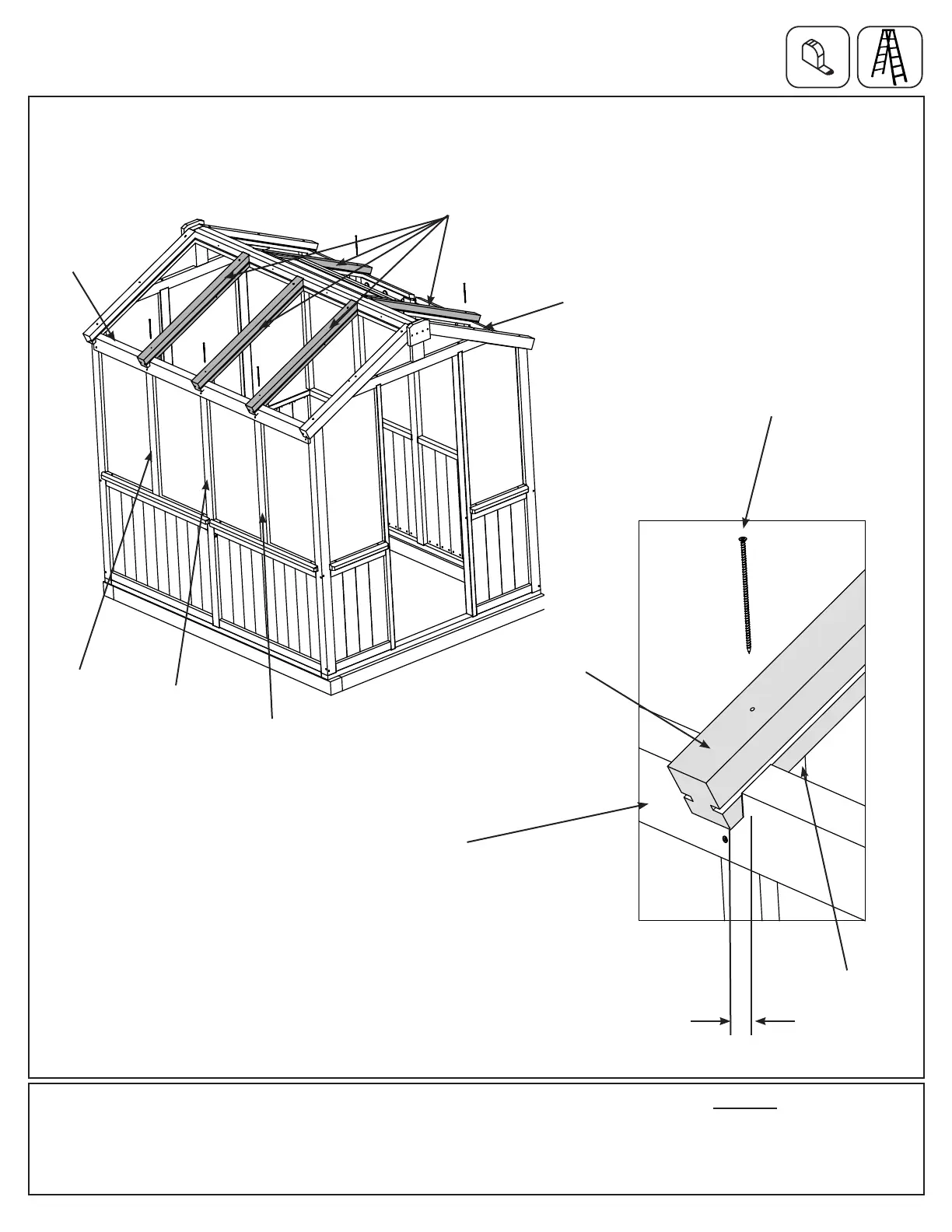

F: Make sure each (1114) Middle Roof Rafter overhangs (1125) Side Wall Tops by 3/4” (1.91 cm). Secure
(1114) Middle Roof Rafters to (1110) Mid Posts and (1144) Short Post Assemblies with one #10 x 5-5/8” Wood
Screw per rafter. (F14.11 and F14.12)
#10 x 5-5/8” Wood Screws
Connects the VENT ROOF PEAK
ASSEMBLY and ROOF PEAK ASSEM-
BLY to SHORT POST AND MID POST,
#10 x 5-5/8” Wood Screws
Connects the VENT ROOF PEAK
ASSEMBLY and ROOF PEAK ASSEM-
BLY to SHORT POST AND MID POST,
(1125) Side
Wall Top
(1114) Middle
Roof Rafter
Hardware
5 x #10 x 5-5/8” Wood Screw
(1110) Mid
Post
(1144) Short
Post Assembly
(1144) Short
Post Assembly
(1125) Side
Wall Top
#10 x 5-5/8”
Wood Screw
3/4” (1.91 cm)
(1125) Side
Wall Top
(1114) Middle
Roof Rafter
Post
F14.11
F14.12
