USE NYLON WASHER with PAN SCREW
and attach 3 per CARBONATE PANEL
Space out 2 inches from each end for 2
washers and centre the one.
#10 X 1-1/4” Pan Screws
PRE-DRILL prior to fastening
Slide PC u channel into bottom ends of each ROOF and SMALL ROOF
POLYCARB PANELS.

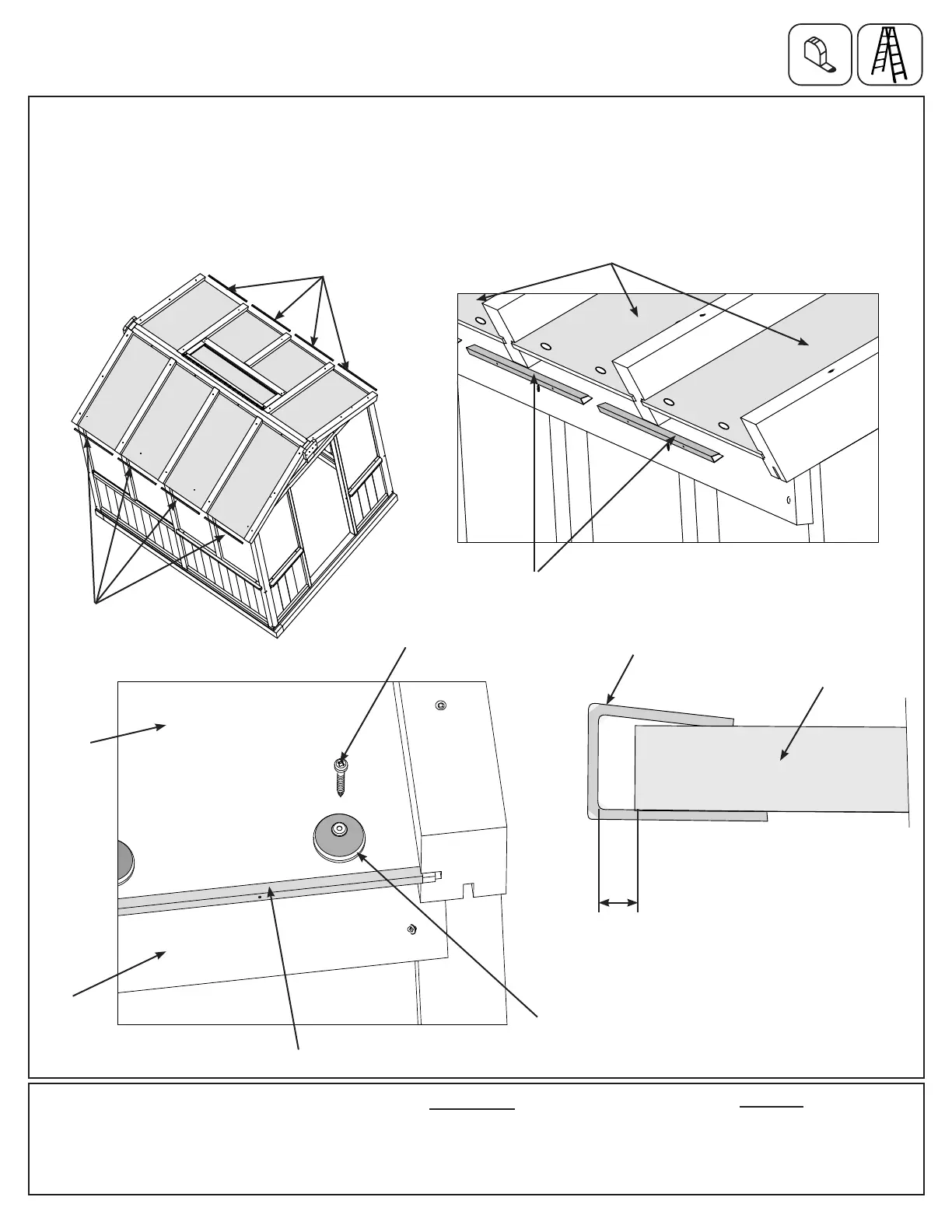

Step 17: Install Roof Panels
Part 2
D: On the bottom of each Roof Panel and Small Roof Panel place one PC U-Channel with a gap of
approximately 1/8” (3.175 mm) between end of Roof Panel and PC U-Channel. (F17.4, F17.5 and F17.6)
E: Attach bottom of each Roof Panel and Small Roof Panel to (1125) Side Wall Tops using three #10 x 1-1/4”
Black Pan Screws with EPDM washers per panel. (F17.7)
F17.4
Roof Panel
(1125) Side
Wall Top
PC U-Channel
PC
U-Channel
F17.5
PC
U-Channel
Hardware
24 x #10 x 1-1/4” Black Pan Screw
24 x EPDM Washer
PC U-Channel
EPDM
Washer
Components
8 x PC U-Channel
Slide PC u channel into bottom ends of each ROOF and SMALL ROOF
POLYCARB PANELS.
Roof
Panel
F17.6
#10 x 1-1/4”
Black Pan Screw
Slide PC u channel into bottom ends of each ROOF and SMALL ROOF
POLYCARB PANELS.
PC U-Channel
Roof
Panel
Approx. 1/8”
(3.175 mm)
F17.7
To Next Page
