81 support@yardistrystructures.com
#8 x 2-1/2”- Wood Screws
Connects SHELF FRONT to
SHELF JOIST (5/8” sits below Shelf Front)
and at botttom
SHELF GUSSET to BACK POST
of the BACK WALL
#10 X 1-1/4” Pan Screw
Connects shelf bracket to
BACK POST
#8 x 2-1/2”- Wood Screws
Connects SHELF FRONT to
SHELF JOIST (5/8” sits below Shelf Front)
and at botttom
SHELF GUSSET to BACK POST
of the BACK WALL
#10 X 1-1/4” Pan Screw
Connects shelf bracket to
BACK POST
H: Tight to each (1113) Back Post place one Joist-Gusset Assembly
so (1135) Shelf Joist is level with the bottom of (1106) Back Wall Sill
then attach Corner Brackets to (1113) Back Posts with one #10 x
1-1/4” Pan Screw per bracket. (F20.13, F20.14 and F20.16)
I: Attach (1134) Shelf Gussets to (1113) Back Posts with one #8 x
2-1/2” Wood Screw per gusset. (F20.13, F20.14 and F20.15)
J: Make sure Joist-Gusset Assembly sits 5/8” (1.59 cm) down from
the top of (1132) Shelf Front and is centred over the pilot holes.
Attach (1132) Shelf Front to (1135) Shelf Joists with one #8 x 2-1/2”
Wood Screw per joist. (F20.13, F20.14 and F20.15)

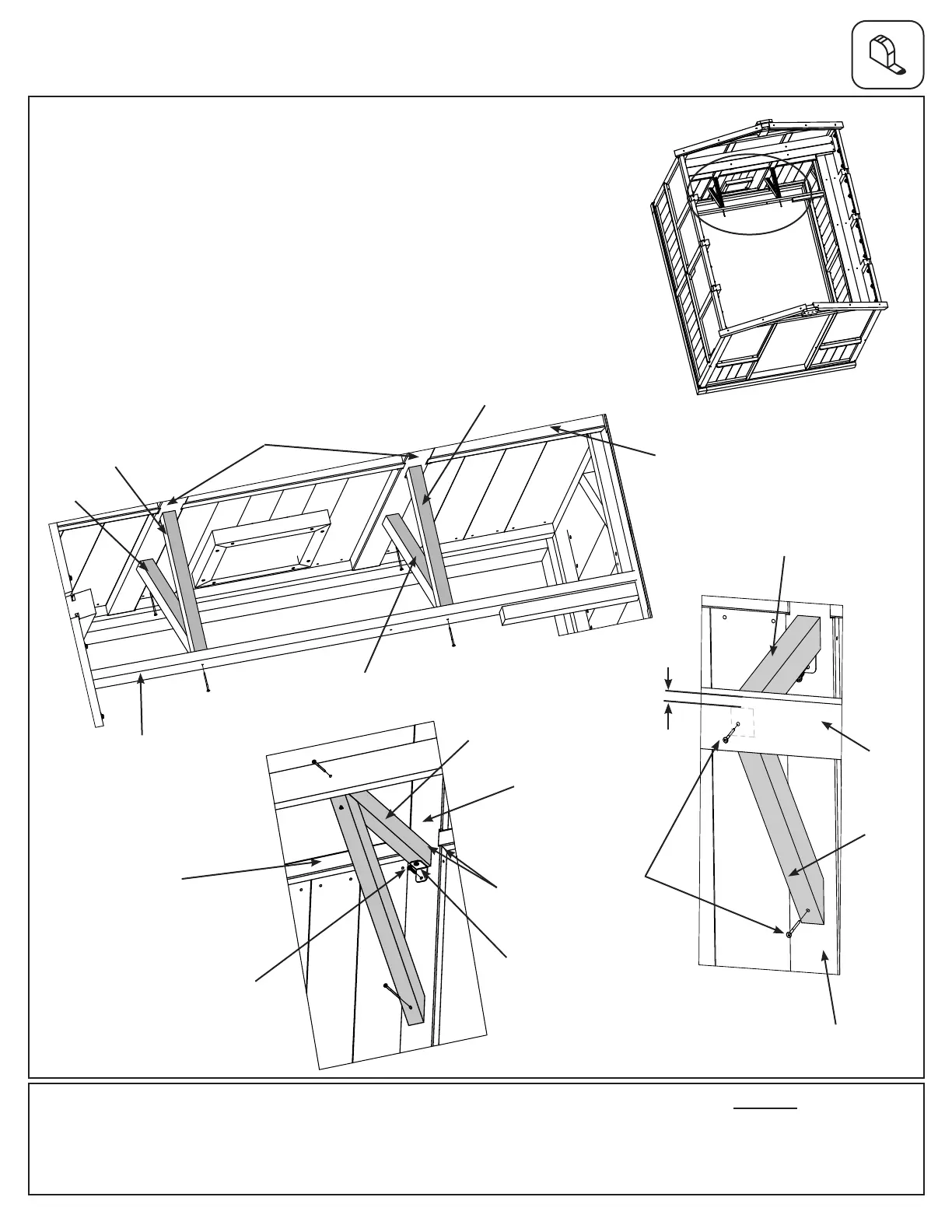

Step 20: Lower Shelf Assembly - Back Wall
Part 6
#8 x 2-1/2”- Wood Screws
Connects SHELF FRONT to
SHELF JOIST (5/8” sits below Shelf Front)
and at botttom
SHELF GUSSET to BACK POST
of the BACK WALL
#10 X 1-1/4” Pan Screw
Connects shelf bracket to
BACK POST
#8 x 2-1/2”- Wood Screws
Connects SHELF FRONT to
SHELF JOIST (5/8” sits below Shelf Front)
and at botttom
SHELF GUSSET to BACK POST
of the BACK WALL
#10 X 1-1/4” Pan Screw
Connects shelf bracket to
BACK POST
(1113)
Back Post
(1132) Shelf Front
(1135)
Shelf Joist
F20.13
(1134)
Shelf
Gusset
(1134) Shelf
Gusset
(1135)
Shelf Joist
F20.14
(1134)
Shelf
Gusset
(1113)
Back Post
#10 x 1-1/4”
Pan Screw
Corner
Bracket
#8 x 2-1/2”
Wood Screw
(1132)
Shelf
Front
(1135)
Shelf Joist
F20.15
5/8”
(1.59 cm)
(1135)
Shelf Joist
(1113)
Back Post
F20.16
Hardware
2 x #10 x 1-1/4” Pan Screw
4 x #8 x 2-1/2” Wood Screw
Roof removed
for clarity
(1106) Back
Wall Sill
(1106) Back
Wall Sill
Shelf Joist
level with
bottom of
Back Wall
Sill
