90 support@yardistrystructures.com
Step 23: Door Assembly
Part 2
Note: Door can be hung from either the right or left side. Instructions show from the left side. To hang
from the right side Hinges and Sliding Barrel Bolt to be attached on the opposite side.

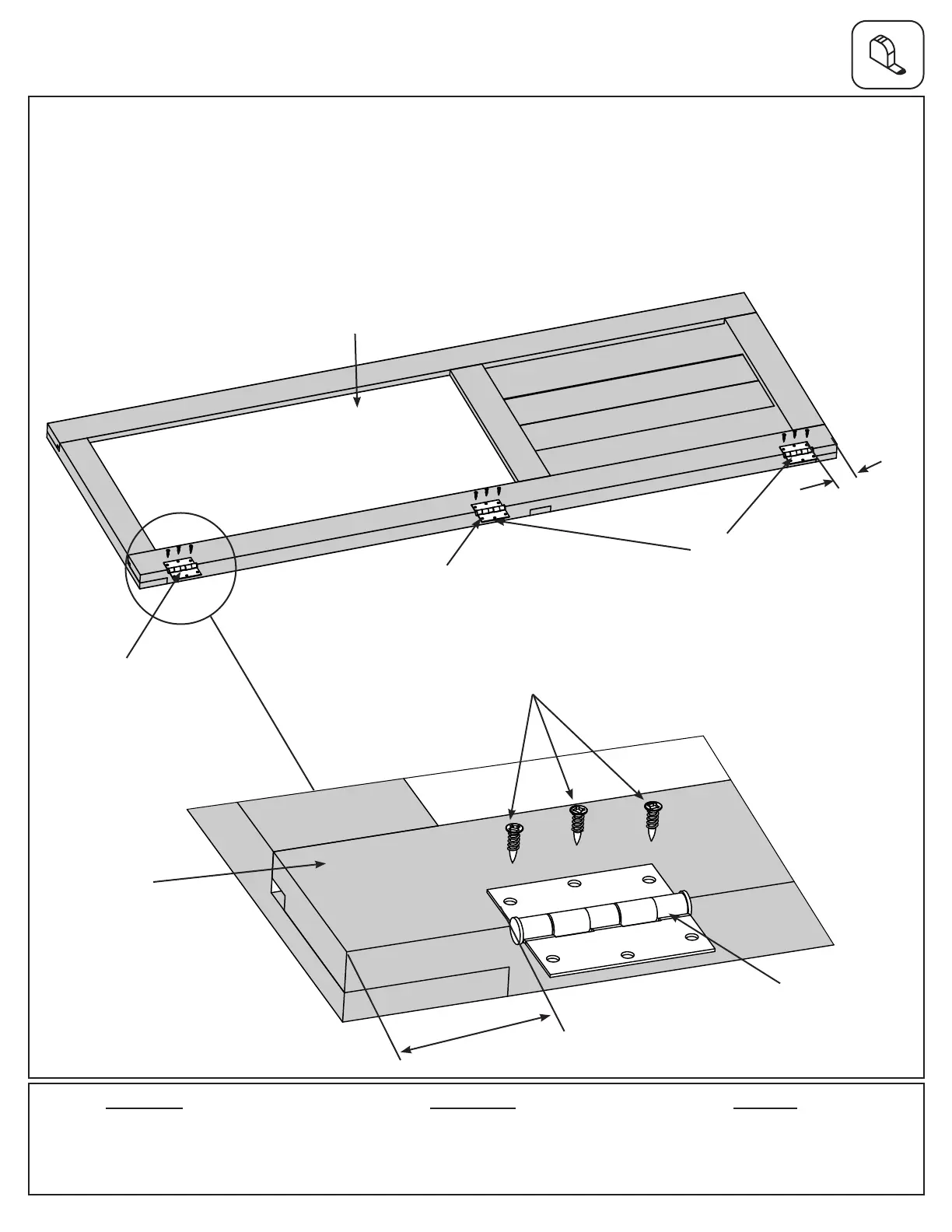

C: On the outside of the (1175) Door Panel measure 3” (7.62 cm) from the top and 3” (7.62 cm) from the bottom
of the panel then attach two Square Hinges using three #7 x 3/4” Wood Screws per hinge. (F23.4 and F23.5)
D: On the same side as the top and bottom Square Hinges attach a third hinge centred on the panel using three
#7 x 3/4” Wood Screws. (F23.4 and F23.5)
Hardware
9 x #7 x 3/4” Wood Screw
Wood Parts
1 x (1175) Door Panel
Components
3 x Square Hinges
(1175) Door
Panel
Centred
on panel
Square
Hinge
3”
(7.62 cm)
3”
(7.62 cm)
Square
Hinge
Square
Hinge
#7 x 3/4”
Wood Screw
F23.4
F23.5
(1175)
Door
Panel
