Step 23: Door Assembly
Part 4

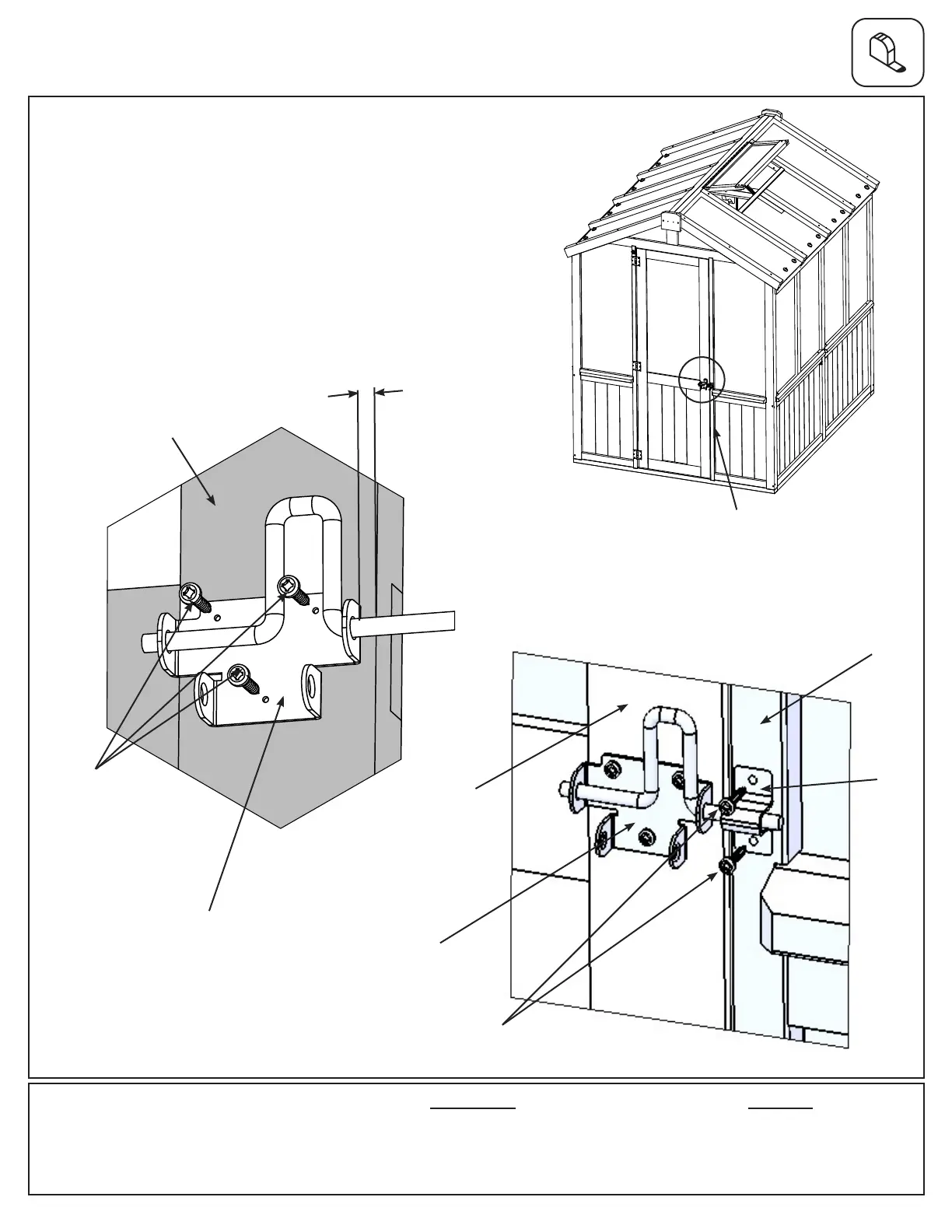

G: On the opposite side from the hinges, attach Sliding
Barrel Bolt 1/4” (6.35 mm) to edge of (1175) Door Panel
using three #10 x 1-1/4” Black Pan Screws, as shown in
F23.9 and F23.10.
H: Close (1175) Door Panel to determine placement of
the Ear of the Sliding Barrel Bolt on the Door Post then
attach with two #10 x 1-1/4” Black Pan Screws. (F23.9
and F23.11)
Hardware
5 x #10 x 1-1/4” Black Pan Screw
Sliding
Barrel Bolt
F23.9
Door
Post
F23.11
Ear
Door
Post
(1175)
Door
Panel
#10 x 1-1/4”
Black Pan Screw
F23.10
(1175) Door
Panel
Sliding
Barrel Bolt
1/4”
(6.35 mm)
#10 x 1-1/4”
Black Pan Screw
Components
1 x Sliding Barrel Bolt
