97 support@yardistrystructures.com
#10 x 1-1/4” Pan
Screw (loosely
installed)

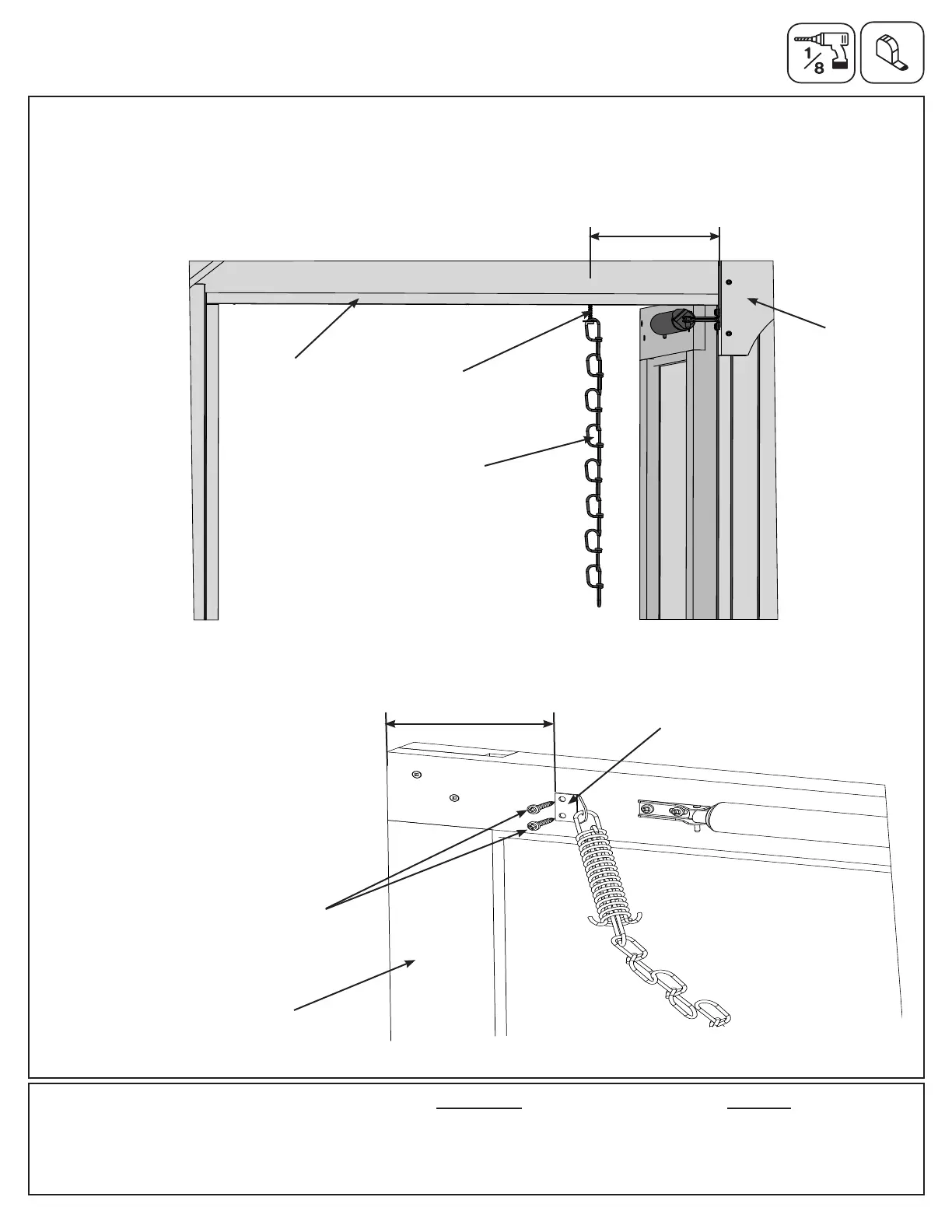

E: Open door, then along (1129) Top Door Block measure 8” (20.32 cm) in from (1130) Door Block and centred
on (1129) Top Door Block pre-drill with a 1/8” drill bit. Put one #10 x 1-1/4” Pan Screw through end chain link
then loosely attach to (1129) Top Door Block. Do not tighten screw, the chain needs to move easily
.
(F25.6)
#10 x 1-1/4”
Pan Screw
Chain
Step 25: Attach Door Closer
Part 4
Hardware
3 x #10 x 1-1/4” Pan Screw
Components
1 x Chain with Chain Bracket
8”
(20.32 cm)
F25.6
(1129) Top
Door Block
(1142)
Closer Block
F: Measure 5” (12.7 cm) from end of
(
1175) Door Panel then attach Chain
Bracket with two #10 x 1-1/4” Pan
Screws. (F25.6 and F25.7)
G: To adjust the speed of the door,
adjust the screw at the end of the tube.
(F25.6 and F25.7)
5”
(12.7 cm)
F25.7
Chain
Bracket
(1175) Door
Panel
