Note: The bevelled ends on each
gusset should always face away from
the wood it is attaching to.
A: Make sure the assembly is still
square and level then facing one Side
Beam Assembly place one (577) Right
Gusset on the right hand side so the top
ts tight to the Side Beam Assembly and
the bottom ts tight to the Post Assembly.
Attach gusset to Side Beam Assembly
with two 5/16 x 3-3/4” Hex Bolts (with
5/16” lock washer, 1/4-5/16” large
washer and 5/16” t-nut). Pre-drill with a
1/8” drill bit then attach gusset to Post
Assembly with two 5/16 x 3” Lag Screws
(with 1/4-5/16” large washer). Repeat
for the left hand side with one (551) Left
Gusset. (g. 6.1 and 6.2)
B: Repeat Step A for Gable Beam
Assembly using two 5/16 x 2-1/4” Hex
Bolts (with 5/16” lock washer, 1/4-5/16”
large washer and 5/16” t-nut) to attach
gussets to Gable Beam Assembly. (g.
6.1 and 6.2)
C: Repeat Steps A and B so all 8 gussets
are attached. (g. 6.1 and 6.2)
Step 6: Attach Gussets

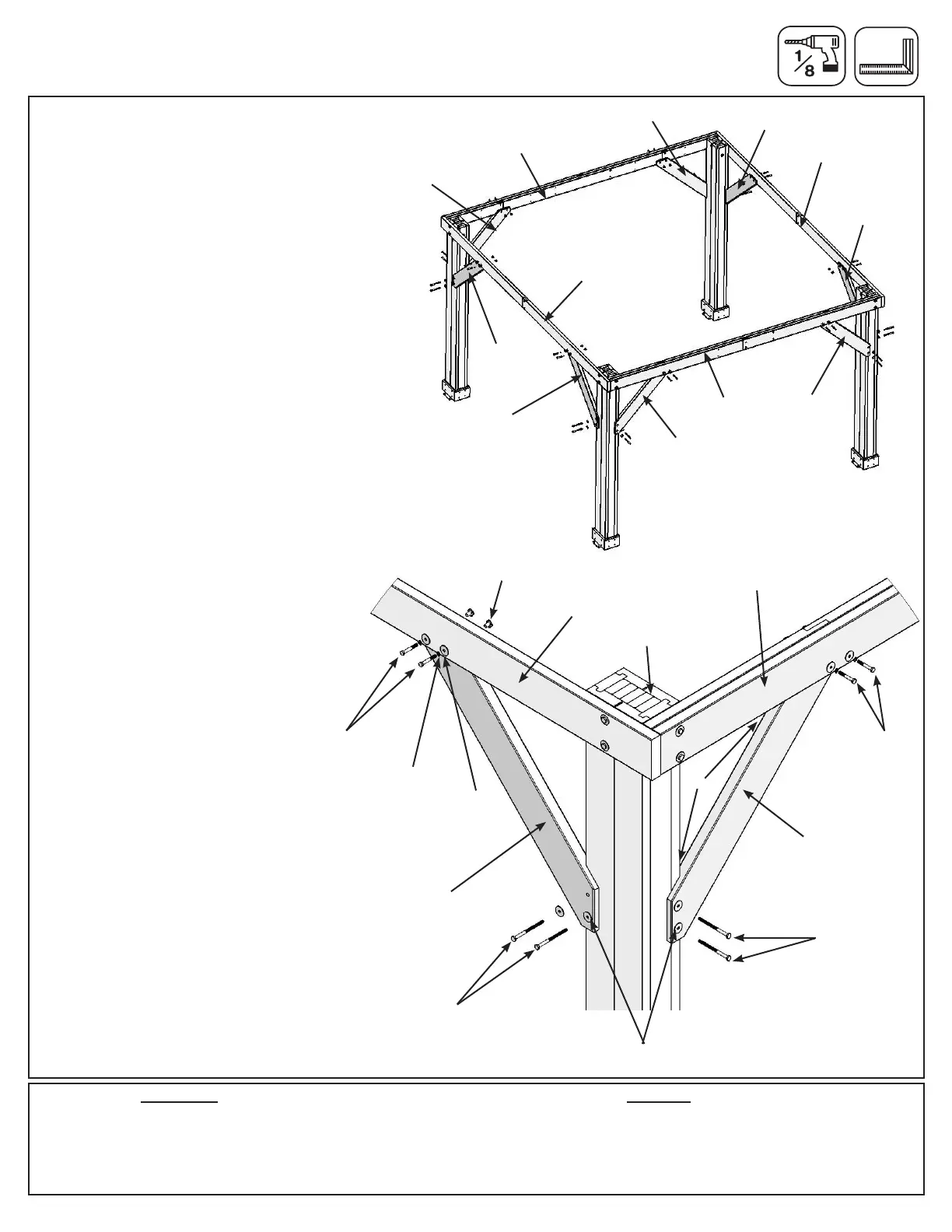

Fig. 6.1
Tight
4 x (577) Right Gusset 38.1 x 139.7 x 1003.3 mm (1-1/2 x 5-1/2 x 39-1/2”)
4 x (551) Left Gusset 38.1 x 139.7 x 1003.3 mm (1-1/2 x 5-1/2 x 39-1/2”)
HardwareWood Parts
16 x 5/16 x 3” Lag Screw (1/4-5/16” large washer)
8 x 5/16 x 3-3/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
8 x 5/16 x 2-1/4” Hex Bolt
(5/16” lock washer, 1/4-5/16” large washer, 5/16” t-nut)
Fig. 6.2
Post
Assembly
5/16 x 3”
Lag Screw
5/16”
T-nut
5/16” Lock
Washer
5/16 x 3-3/4”
Hex Bolt
5/16 x 2-1/4”
Hex Bolt
(577) Right
Gusset
(551) Left
Gussett
Gable Beam
Assembly
Side Beam
Assembly
Side Beam
Assembly
Gable Beam
Assembly
5/16 x 3”
Lag Screw
(577) Right
Gusset
(551) Left
Gussett
(577) Right
Gusset
(577) Right
Gusset
(551) Left
Gussett
(551) Left
Gussett
Side Beam
Assembly
(577) Right
Gusset
(551) Left
Gussett
Gable Beam
Assembly
1/4-5/16”
Large Washer
1/4-5/16”
Large Washer
