Step 7: Gable Frame Assembly
Part 1
A: Place one (549) Gable Inside against one Gable Beam Assembly, on the inside, tight to the top of (551) Left
Gusset and (577) Right Gusset. The ends of (549) Gable Inside measures 17” from the Post Assemblies. Attach
(549) Gable Inside to Gable Beam Assembly with eight #8 x 2-1/2” Wood Screws. (g. 7.1, 7.2 and 7.3)
B: Repeat Step A for the other Gable Beam Assembly.
2 x (549) Gable Inside 38.1 x 63.5 x 2336.8 mm (1-1/2 x 2-1/2 x 92”)
Wood Parts Hardware
16 x #8 x 2-1/2” Wood Screw
17"fromGableSupport
endandpost
17"fromGableSupport
endandpost
17"fromGableSupport
endandpost

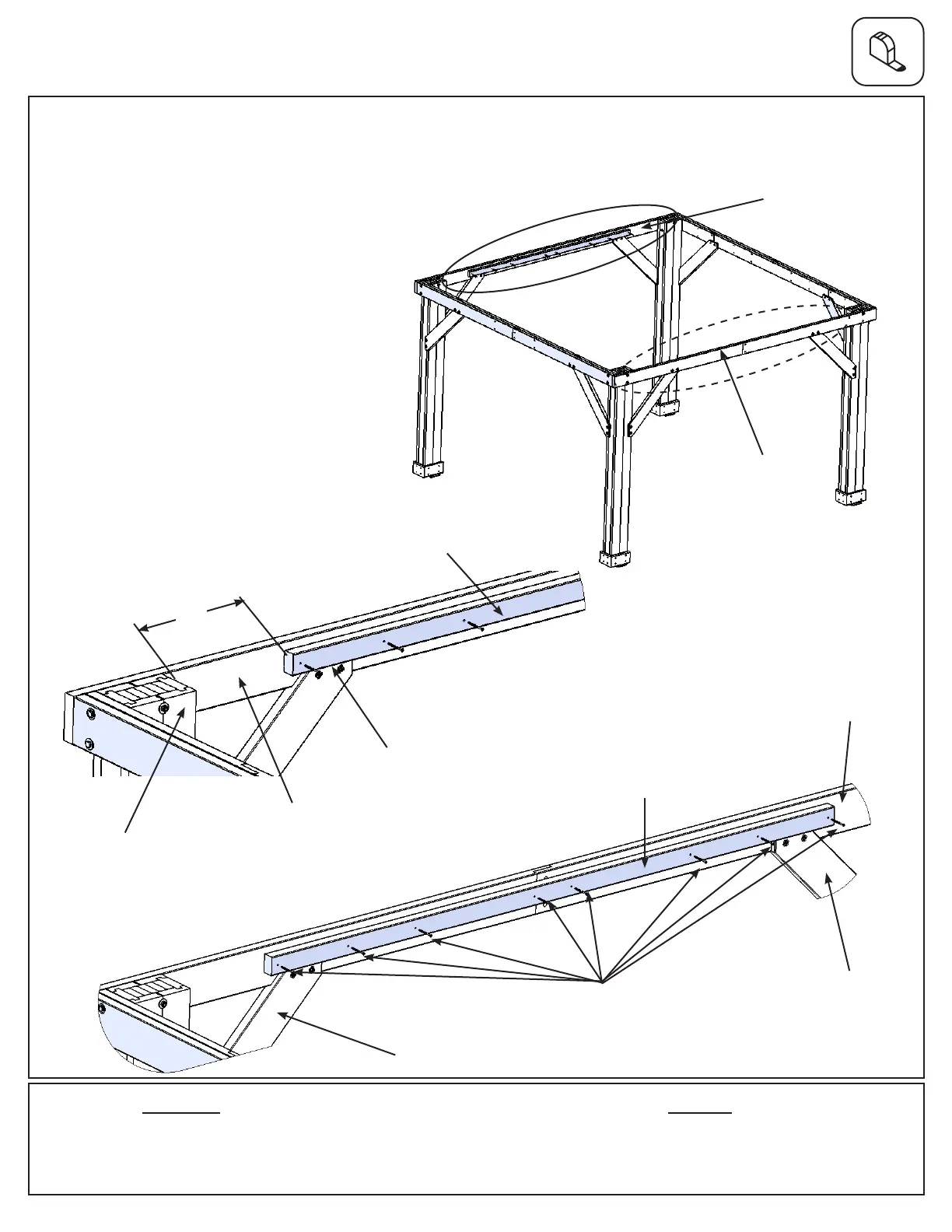

Fig. 7.1
Fig. 7.2
Gable Beam
Assembly
Gable Beam
Assembly
Fig. 7.3
Gable Beam
Assembly
Gable Beam
Assembly
(549) Gable
Inside
(549) Gable
Inside
Post Assembly
(577) Right
Gusset
(551) Left
Gussett
Tight
#8 x 2-1/2”
Wood Screw
17”
