Step 7: Gable Frame Assembly
Part 2
C: Tight to each end of one (549) Gable Inside attach one (548) Gable End to Gable Beam Assembly with three
#8 x 2-1/2” Wood Screws. (548) Gable End should be ush to the top of (549) Gable Inside. (g. 7.4 and 7.5)
D: Repeat Step C for the other Gable Beam Assembly.
4 x (548) Gable End 38.1 x 63.5 x 430 mm (1-1/2 x 2-1/2 x 16-15/16”)
Wood Parts Hardware
12 x #8 x 2-1/2” Wood Screw

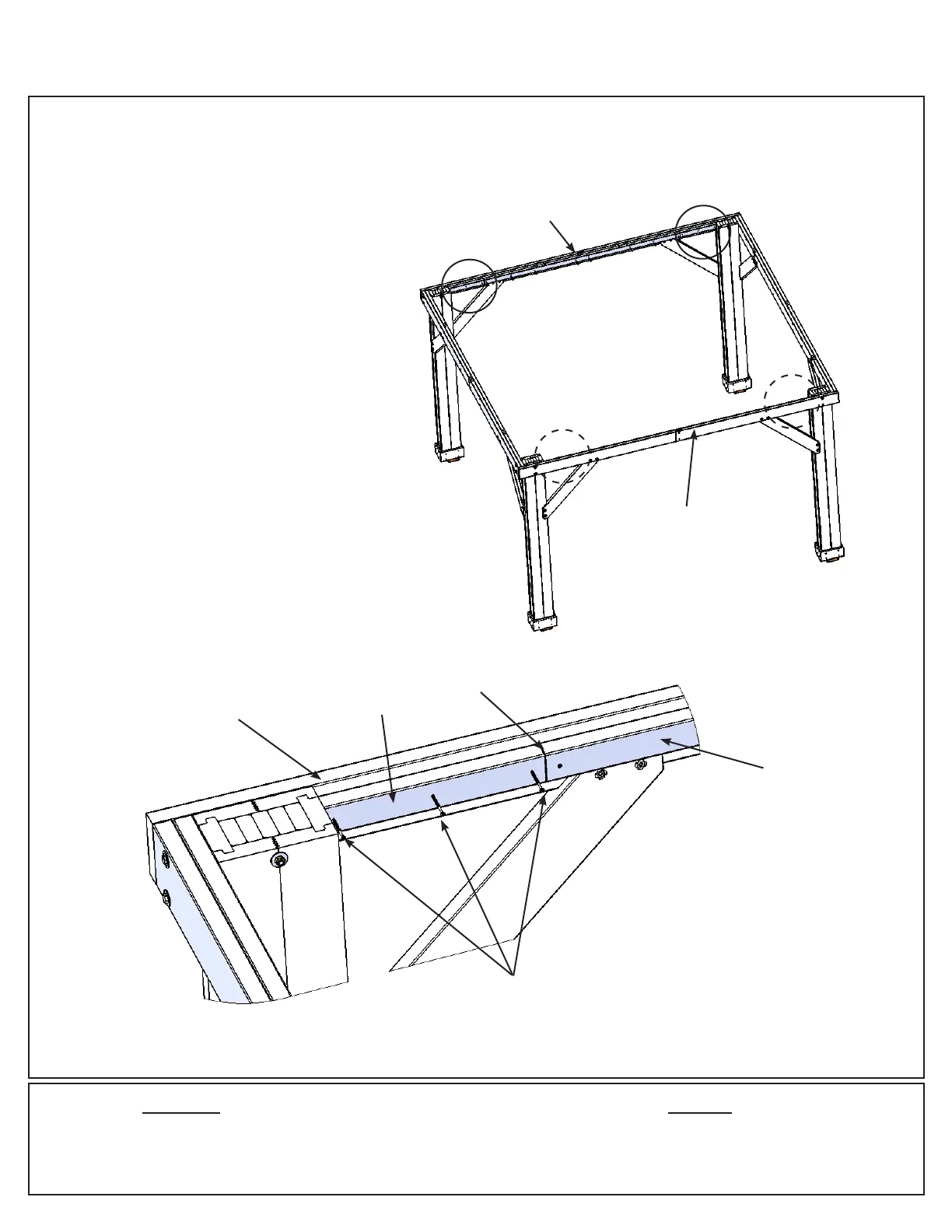

Fig. 7.4
Fig. 7.5
Gable Beam
Assembly
Gable Beam
Assembly
Gable Beam
Assembly
(549) Gable
Inside
(548) Gable
End
Flush and
Tight
#8 x 2-1/2”
Wood Screw
