41"fromGableUpright
andpost
41"fromGableUpright
andpost
41"fromGableUpright
andpost

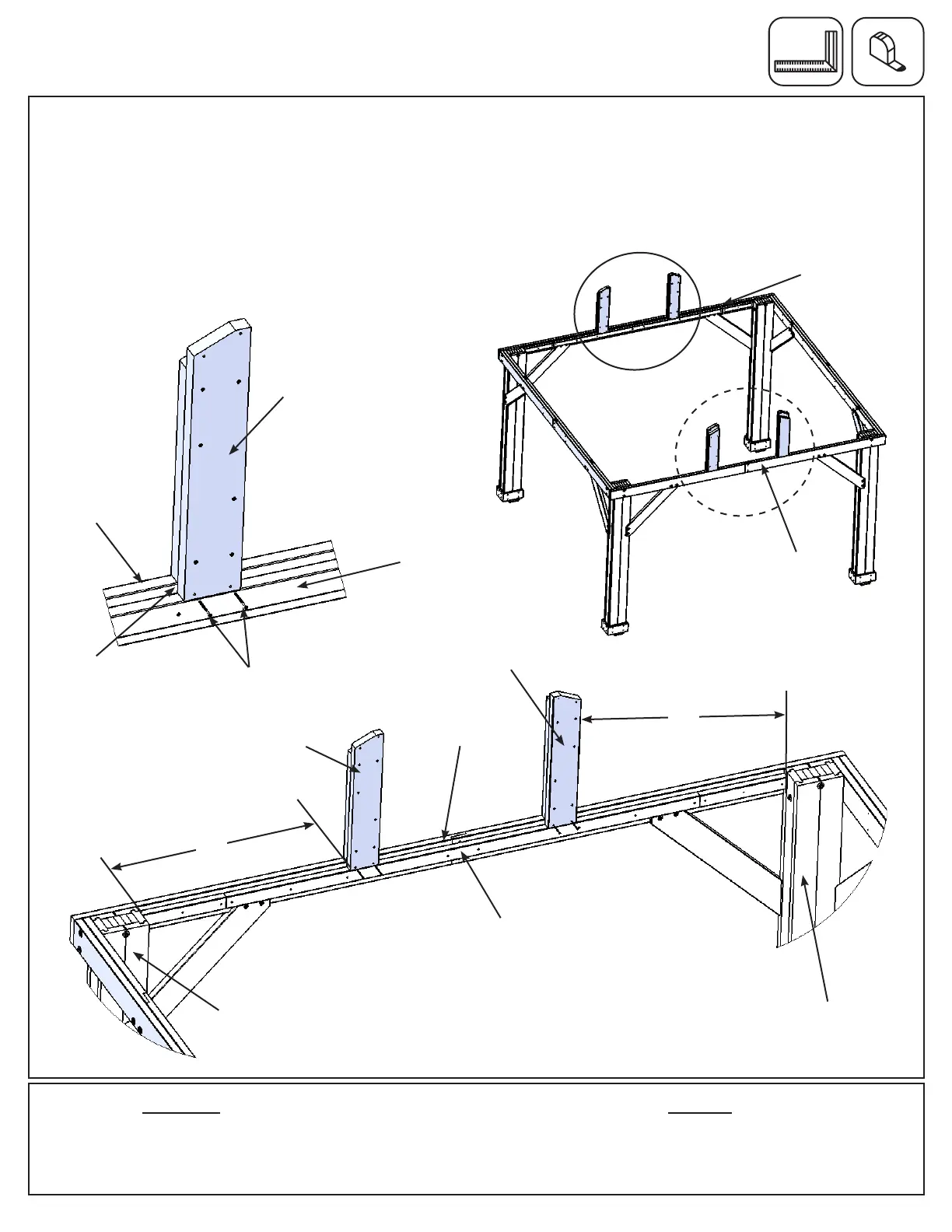

Step 7: Gable Frame Assembly
Part 3
E: From the inside of the pavalion frame measure 41” from Post Assembly on the left then place one (553)
Gable Upright Assembly Left tight to top of (549) Gable Inside and Gable Beam Assembly, make sure it is square
then attach with two #8 x 2-1/2” Wood Screws. (g. 7.6, 7.7 and 7.8)
F: From the inside of the pavalion frame measure 41” from Post Assembly on the right then place one (552)
Gable Upright Assembly Right tight to top of (549) Gable Inside and Gable Beam Assembly, make sure it is
square then attach with two #8 x 2-1/2” Wood Screws. (g. 7.6 and 7.8).
G: Repeat Step E and F for the other Gable Beam Assembly.
2 x (552) Gable Upright Assembly Right 76.2 x 139.7 x 717.4 mm (3 x 5-1/2 x 28-1/4”)
2 x (553) Gable Upright Assembly Left 76.2 x 139.7 x 717.4 mm (3 x 5-1/2 x 28-1/4”)
Wood Parts Hardware
8 x #8 x 2-1/2” Wood Screw
Fig. 7.6
Fig. 7.7
Gable Beam
Assembly
Gable Beam
Assembly
Fig. 7.8
Gable Beam
Assembly
Gable Beam
Assembly
(549) Gable
Inside
(549) Gable
Inside
Post
Assembly
(553) Gable Upright
Assembly Left
Tight
#8 x 2-1/2”
Wood Screw
41”
Post
Assembly
(552) Gable Upright
Assembly Right
41”
(553) Gable Upright
Assembly Left
Note: The Gable Upright
Assemblies may have to be
adjusted when roof is installed.
