Hardware
Wood Parts

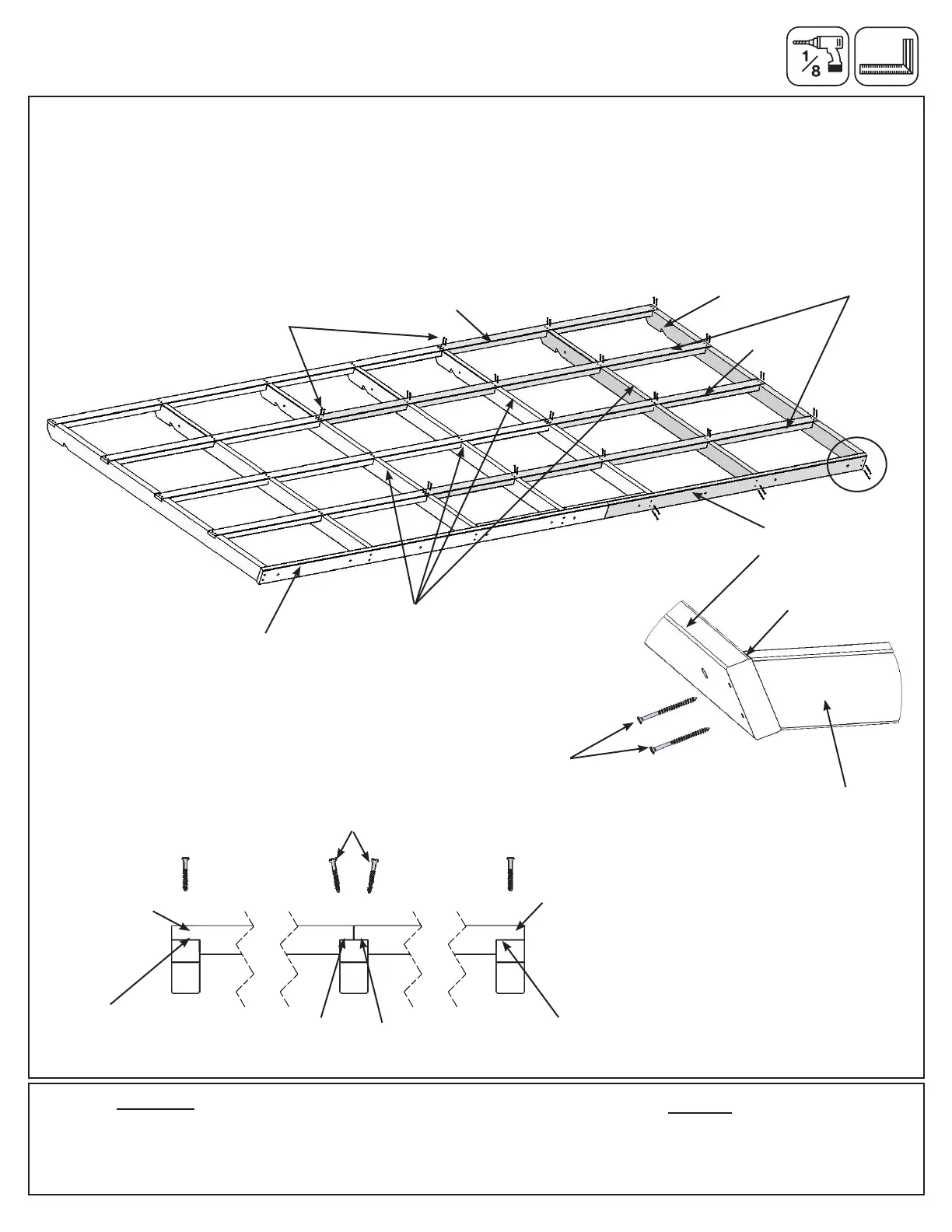

Fig. 8.5
Side View
D: Tight to each (543) Strap Long place one (544) Strap Short and tight to the rst two (544) Strap Shorts place
one (543) Strap Long. Make sure the wider gap on each strap is on the outside. Make sure the assembly is
square, pre-drill the rst (544) Strap Short with a 1/8” drill bit, as shown below, then attach both (544) Strap
Shorts with six #8 x 1-3/4” Wood Screws per board and both (543) Strap Longs with ten #8 x 1-3/4” Wood Screws
per board. The screws where the straps meet are inserted at an angle. (g. 8.3 and 8.5)
E: Tight to (541) Ridge Long attach one (542) Ridge Short with six #8 x 2-1/2” Wood Screws. (g. 8.4 and 8.5)
Step 8: Frame Roof Panel
Part 2
Notice
screws at
an angle
Fig. 8.3
Notice large
notch gap on
outside ends
Notice small notch
gap on inside ends
where straps meet
Notice large
notch gap on
outside ends
(541) Ridge Long
Flush
Fig. 8.4
#8 x 2-1/2”
Wood Screws
(x 6)
(544) Strap Short
(pre-drill pilot holes
for this board only)
(540) Rafter B
#8 x 1-3/4”
Wood Screws
(x 22)
4 x (544) Strap Short 31.8 x 76.2 x 1279.1 mm (1-1/4 x 3 x 50-23/64”)
4 x (543) Strap Long 31.8 x 76.2 x 2326.9 mm (1-1/4 x 3 x 91-5/8”)
2 x (542) Ridge Short 25.4 x 101.6 x 1541.4 mm (1 x 4 x 60-11/16”)
64 x #8 x 1-3/4” Wood Screw
12 x #8 x 2-1/2” Wood Screw
Bottom
(544) Strap
Short
(543) Strap Long
(543) Strap
Long
(544) Strap
Short
(539) Rafter A
(540) Rafter B
(542) Ridge
Short
