41 support@yardistrystructures.com
Roof Panel
removed for
clarity

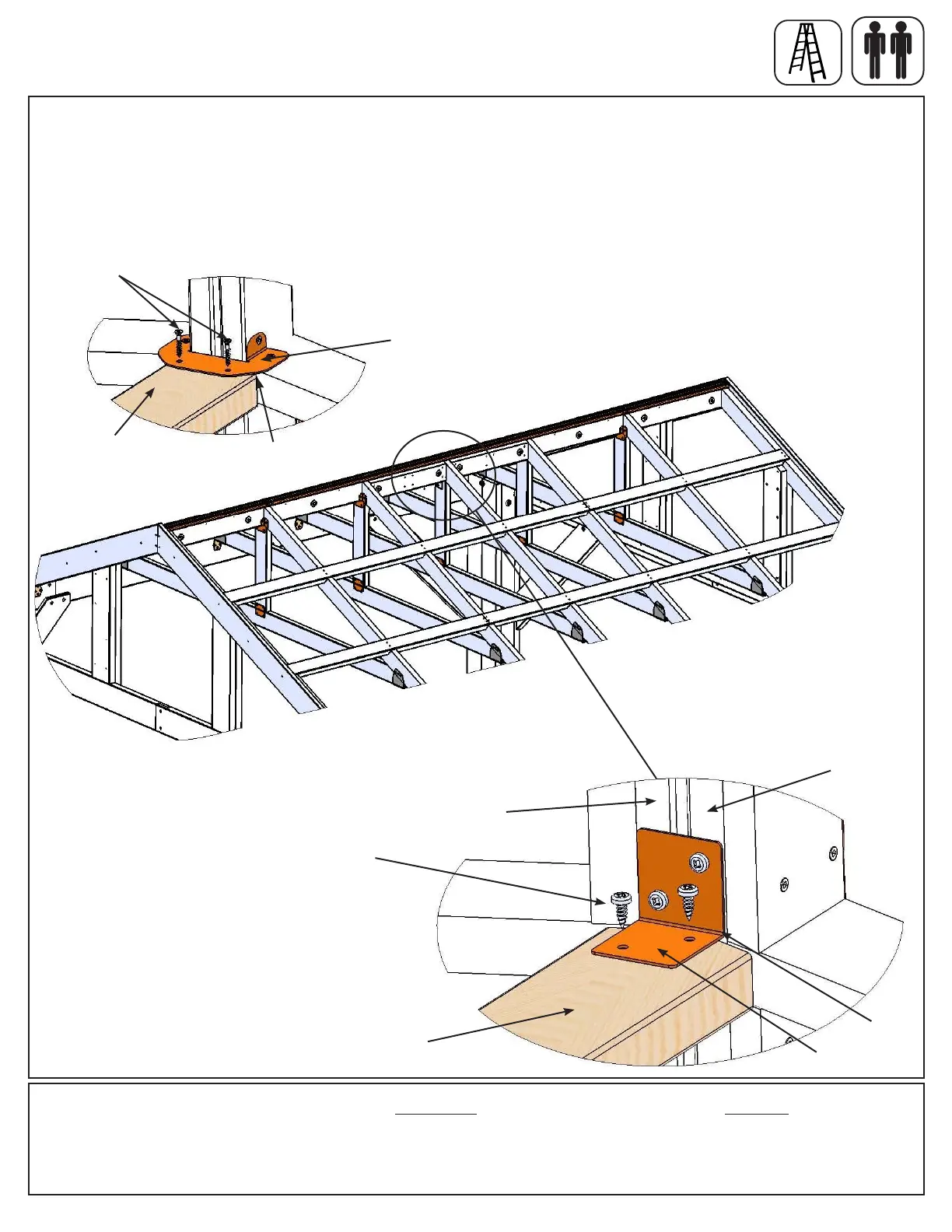

F: Secure four (547) Tie Braces to each Tie Centre Bracket with two #8 x 1” Pan Screws per bracket. (g. 13.9
and 13.10)
G: Secure remaining (547) Tie Brace to (541) Ridge Long and (542) Ridge Short with one Corner Bracket using
four #8 x 1” Pan Screws. (g. 13.9 and 13.11)
Step 13: Truss Assemblies
Part 4
Fig. 13.9
Fig. 13.10
Fig. 13.11
Tight
Tie Centre
Bracket
(547) Tie
Brace
(547) Tie
Brace
(542) Ridge
Short
(541) Ridge
Long
#8 x 1” Pan
Screw
Tight
Corner
Bracket
#8 x 1”
Pan Screw
x 4
Hardware
12 x #8 x 1” Pan Screw
Componets:
1 x Corner Bracket
