Savannah Inst 9 - Attach Truss Brkts.
Hardware
40 x #10 x 1-1/4” Pan Screw
10 x #12 x 1-1/4” Pan Screw
10 x #10 x 2-1/2” Pan Screw
Fig. 13.5
Fig. 13.6
#10 x 1-1/4”
Pan Screw

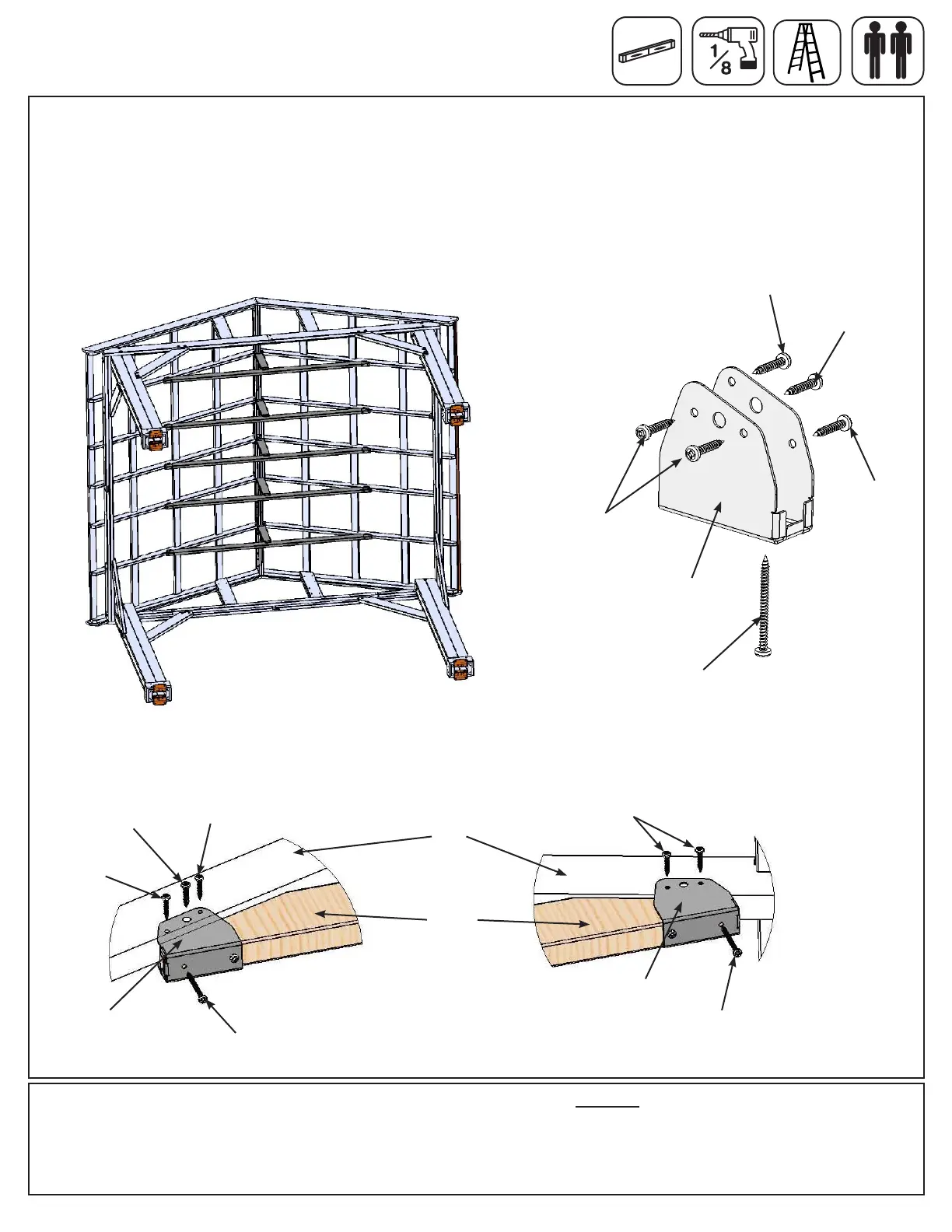

Step 13: Truss Assemblies
Part 3
#10 x 2-1/2” Pan Screw
(pre-drill before installing)
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
(546) Tie
Tie Wrap
Bracket
D: With a helper place ve (546) Tie with brackets tight against the rafters so (547) Tie Braces t into Tie Centre
Brackets. Make sure (546) Ties are level then attach Tie Wrap Brackets to the rafters with two #10 x 1-1/4” Pan
Screws on both sides of each bracket and one #12 x 1-1/4” Pan Screw on one side of each bracket. (g. 13.5,
13.6, 13.7 and 13.8)
E: Pre-drill with a 1/8” drill bit and secure Tie Wrap Brackets to (546) Tie and the rafter with one #10 x 2-1/2” Pan
Screw per bracket. (g. 13.5, 13.6, 13.7 and 13.8)
Fig. 13.7
Fig. 13.8
#10 x 2-1/2” Pan Screw
(pre-drill before installing)
#10 x 2-1/2” Pan Screw
(pre-drill before installing)
#12 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
Tie Wrap
Bracket
#10 x 1-1/4”
Pan Screw
#10 x 1-1/4”
Pan Screw
#12 x 1-1/4”
Pan Screw
Front Side
Back Side
x 2
Rafter
Tie Wrap
Bracket
