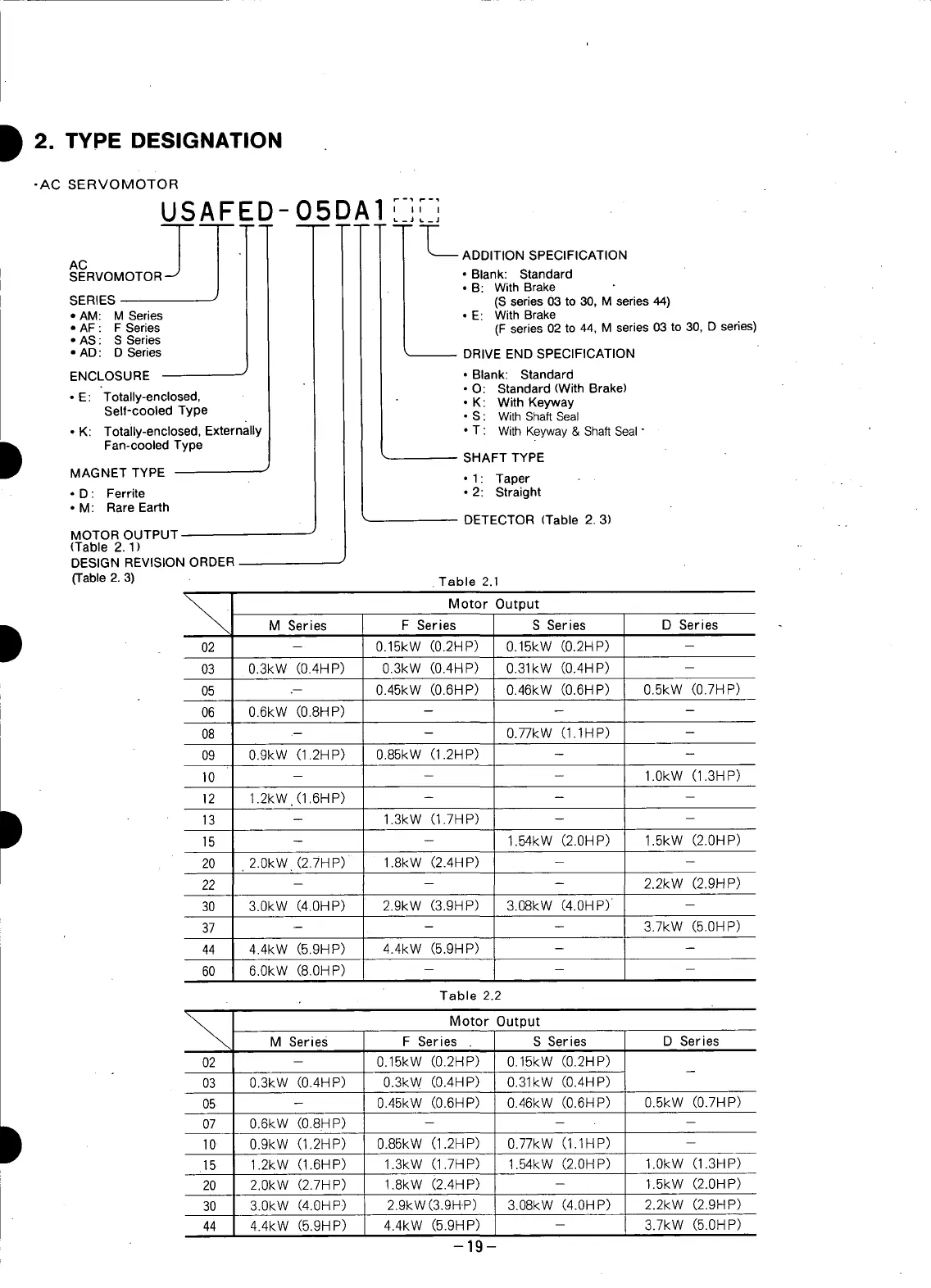

DESIGNATION
USAFED- 05DA 1
T "- '---T ADDITtON SPECIFICATION
• Blank: Standard
• B: With Brake
J (S series 03 to 30, M series44)
• E: With Brake
(F series 02 to 44, M series 03 to 30, D series)
, DRIVE END SPECIFICATION
" • Blank: Standard
• O: Standard (With Brake)
• K: With Keyway
Type • S: WithShaftSeal
Externally • T: WithKeyway& ShaftSeal"
Type
• SHAFTTYPE
• 1: Taper
• 2: Straight
DETECTOR (Table 2.3)
ORDER
. Table 2.1
Motor Output
M Series F Series S Series D Series
02 - 0.15kW (0.2HP) 0.15kW (0.2HP) -
03 0.3kW (0.4HP) 0.3kW (0.4HP) 0.31kW (0.4HP)
05 .- 0.45kW (0.6HP) 0.46kW (0.6HP) 0.5kW (0.7HP)
06 0.6kW (0.8HP) - - -
08 ,- - 0.77kW (1.1HP) -
09 0.9kW (1.2HP) 0.85kW(1.2HP) - -
10 - - - 1.0kW(1.3HP)
12 1.2kW (1.6HP) - - -
13 - 1.3kW (1.7H P) - -
15 - - 1.54kW (2.0HP) 1.5kW (2.0HP)
20 2.0kW(2.7HP) 1,8kW(2.4HP) - -
22 - - - 2.2kW(2.9HP)
30 3.0kW (4.0HP) 2.9kW (3.9HP) 3.08kW (4.0HP)' -
37 - - - 3.7kW(5.0HP)
44 4.4kW(5.9HP) 4.4kW (5.9HP) - -
60 6.0kW(8.0HP) - - -
Table 2.2
Motor Output
M Series F Series S Series D Series
02 - 0.15kW (0.2HP) 0.15kW (0.2HP)
03 0.3kW (0.4H P) 0.3kW (0.4H P) 0.31kW (0.4H P)
05 - 0.45kW (0.6HP) 0.46kW (0.6HP) 0.5kW (0.7HP)
07 0,6kW(0.8.HP) - - -
10 0.9kW (1.2HP) 0.85kW (1.2HP) 0.77kW (1.1HP) -
15 1.2kW (1.6HP) 1.3kW (1.7HP) 1.54kW (2.0HP) 1.0kW (1.3HP)
20 2.0kW (2.7HP) 1,8kW (2.4HP) - 1.5kW (2.0HP)
30 3.0kW (4.0HP) 2.9kW(3.9H.P) 3.08kW (4.0HP) 2.2kW (2.griP)
44 4.4kW (5.9HP) 4.4kW (5.9HP) - 3.7kW (5.0HP)
