YASKAWA CACR-SR BE Series User Manual

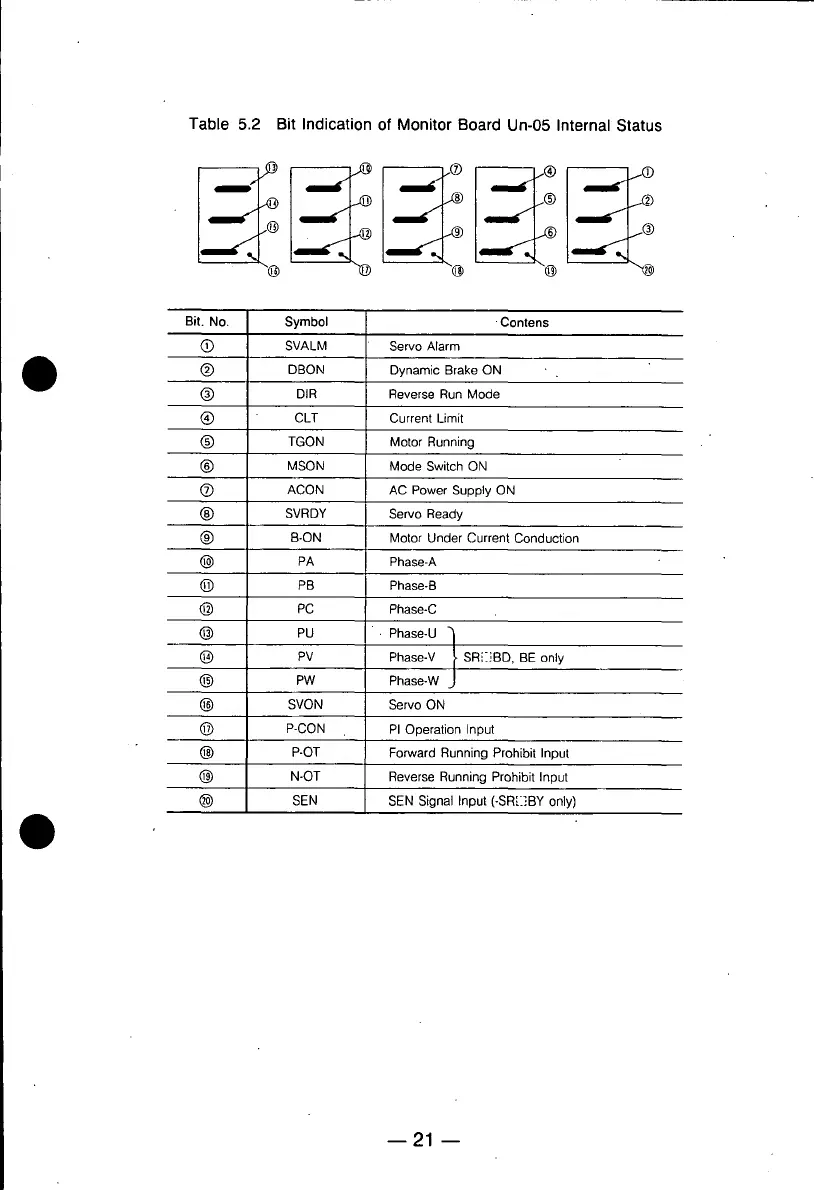

Table 5.2 Bit Indication of Monitor Board Un-05 Internal Status
® ®
Bit. No. Symbol •Contens
(_) SVALM Servo Alarm
(_) DBON DynamicBrakeON • .
(_) DIR ReverseRunMode
(_) CLT CurrentLimit
_) TGON MotorRunning
(_) MSON Mode SwitchON
(Z) ACON AC PowerSupply ON
(_) SVRDY ServoReady
(_) B-ON Motor Under Current Conduction
(_ PA Phase-A
@ PB Phase-B
@ PC Phase-C
_) PU , Phase-U
(_) PV Phase-V SRi_BD, BE only
(_) PW Phase-W
(_ SVON ServoON
O P-CON PI Operation Input
_) P-OT Forward Running Prohibit Input
(_) N-OT Reverse Running Prohibit Input
@) SEN SEN Signal Input (-SR[_BY only)
m21 m
