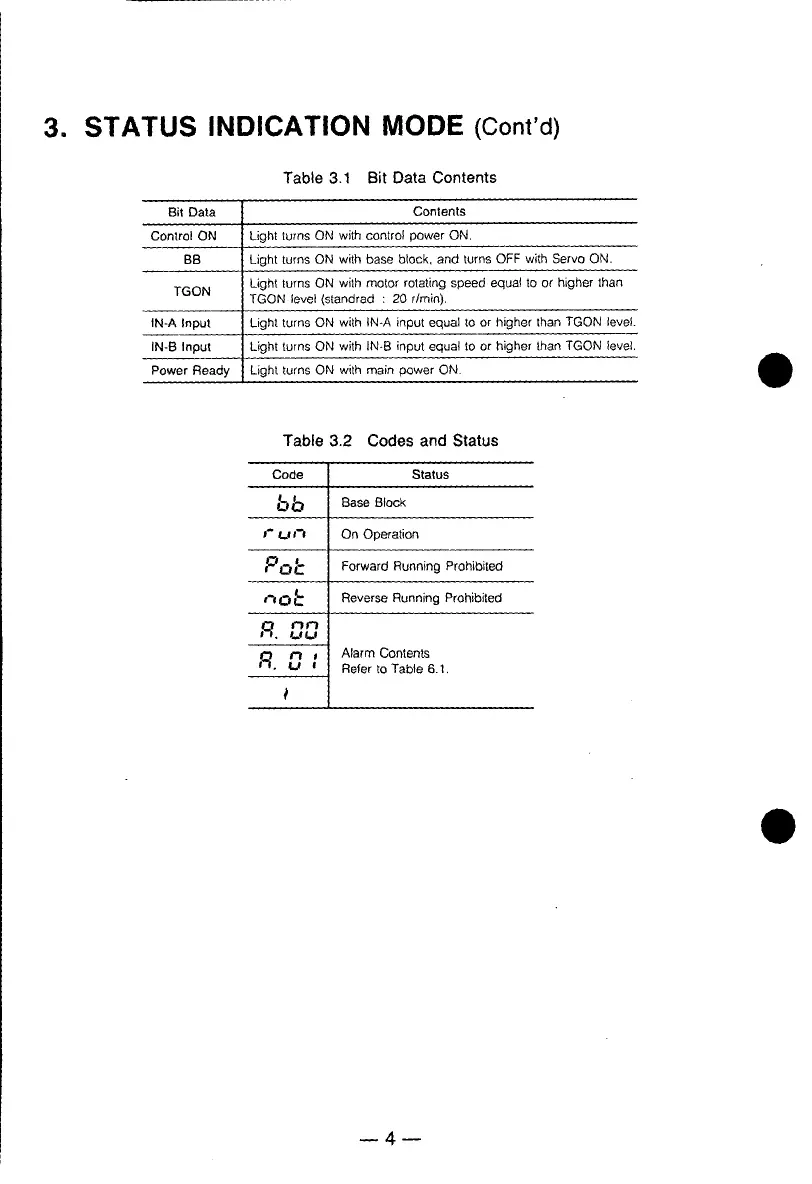

3. STATUS INDICATION MODE (Cont'd)
Table 3.1 Bit Data Contents
Bit Data Contents
Control ON Light turns ON with control power ON.
B8 Light turns ON with base block, and turns OFF with Servo ON.
TGON Light turns ON with motor rotating speed equat to or higher than
TGON level (standrad : 20 r/Tin),
tN-A Input Light turns ON with IN-A input equal to or higher than TGON level.
IN-B Input Light turns ON with IN-B input equal to or higher than TGON level.
Power Ready Light turns ON with main power ON.
Table 3.2 Codes and Status
Code Status
b b Base Block
J- (.._i_ On Operation
p ,
I._C Forward Running Prohibited
O_ Reverse Running Prohibited
R, t_n
UU
Alarm Contents
R. _j_ _ Refer to Table 6.1.
t
To Next Page
