42
(3) Setting and Verification before Operation
When setting up the VS-686SS5, make sure to follow the procedures below. Mistakes in set-
up order may cause values to be written over resulting in poor operation.
STEP 1 Control method setting (Page 43)
STEP 2 Constant torque/variable torque motor settings (Pages 44 to 47)
STEP 3 Motor capacity selection (Pages 44 to 47)
STEP 4 Nameplate value setting (Pages 44 to 47)
The VS-686SS5 is equipped with two current vector control methods (with or without PG).
Either method can be easily selected by using the digital operator to meet user application
needs. Open loop vector control is set at the factory prior to shipment. In the following cases,
follow the procedures below to set and verify the control method and motor related constants.
S When conducting initial operation of the VS-686SS5.
S When replacing either motor or inverter
S When replacing PG

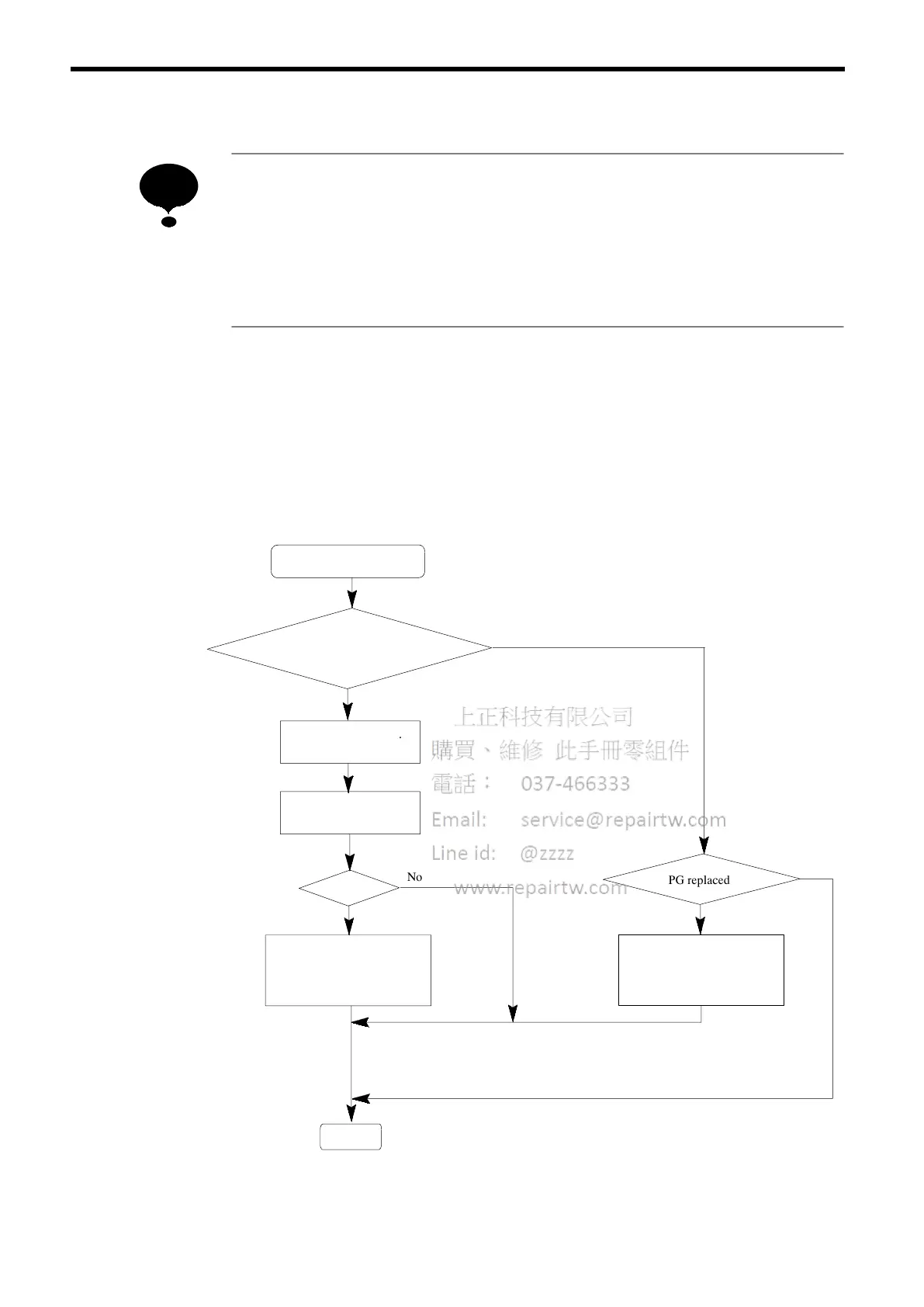

Setting and verification
before operation
Initial operation?
Motor or inverter replaced?
Select control method.
(Refer to page 43.)
Set motor related
constants.
(Refer to page 44.)
With PG?
• Verify motor speed detection.
(Refer to page 48.)
• Adjust PG zero-pulse.
(Refer to page 49 and 50.)
PG replaced?
End
No
Yes
Yes
No
Yes
No
• Verify motor speed detection.
(Refer to page 48.)
• Adjust PG zero-pulse.
(Refer to page 49 and 50.)
NOTE
To Next Page
