YASKAWA Drive-V1000 User Manual

4 LCD Operator Option Components
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 17
◆ LCD Display
Figure 5

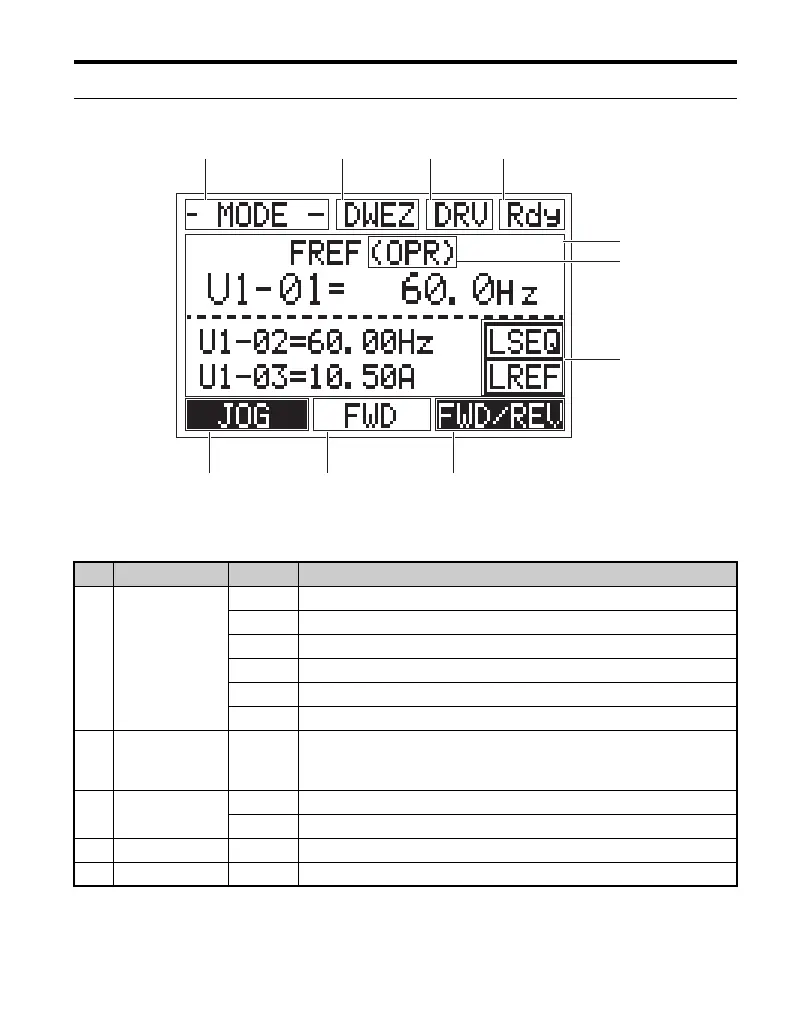

Figure 5 LCD Display
Table 8 Display and Contents
No. Name Display Content
1
Operation Mode
Menus
MODE Displayed when in Mode Selection.
MONITR Displayed when in Monitor Mode.
VERIFY Indicates the Verify Menu.
PRMSET Displayed when in Parameter Setting Mode.
A.TUNE Displayed during Auto-Tuning.
SETUP Displayed when in Setup Mode.
2
DriveWorksEZ
Function
Selection
DWEZ
Displayed when the DriveWorksEZ is set to enable.
(A1-07=1 or 2)
3
Mode Display
Area
DRV Displayed when in Drive Mode.
PRG Displayed when in Programming Mode.
4 Ready Rdy Indicates the drive is ready to run.
5 Data Display – Displays specific data and operation data.
㪴
7
6
5
1234
8910

YASKAWA Drive-V1000 Specifications

General

Series	V1000
Output Current	Varies by model (refer to specific model datasheet)
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Humidity	95% RH or less (non-condensing)
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Ground Fault, Short Circuit
Communication	Modbus RTU, PROFIBUS-DP, DeviceNet, EtherNet/IP
Braking Unit	Built-in or External (optional)
Input Voltage	3-Phase 200-240 VAC ±10% 50/60 Hz, 3-Phase 380-480 VAC ±10% 50/60 Hz
Output Voltage	0 to Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
