2 Product Overview
2 Product Overview
◆ About This Product
The LCD Operator Option provides an enhanced drive user interface that can operate the
Yaskawa drive at a short distance up to 3 meters. The LCD Operator Option can display
information in eight languages, including English, Japanese, and Spanish.The LCD Operator
Option is an LCD display that simplifies the task of interfacing with the drive to perform
these tasks:
• Read or modify drive parameters.
• Read and copy drive parameter settings to another Yaskawa drive.
• Operate the drive.
• Monitor drive operation status.
Note: When the LCD Operator Option is installed and connected to the V1000 it will cause the drives
built-in LED operator to display a series of dots as shown in Table 1. This is normal operation.
Additionally, all keys except for the STOP key on the drives built-in LED operator will not
function when the LCD Operator Option is connected. If desired, to also disable the STOP key
on the drives built-in LED operator, set parameter o2-02 (STOP Key Function Selection) to 0
(Disabled).

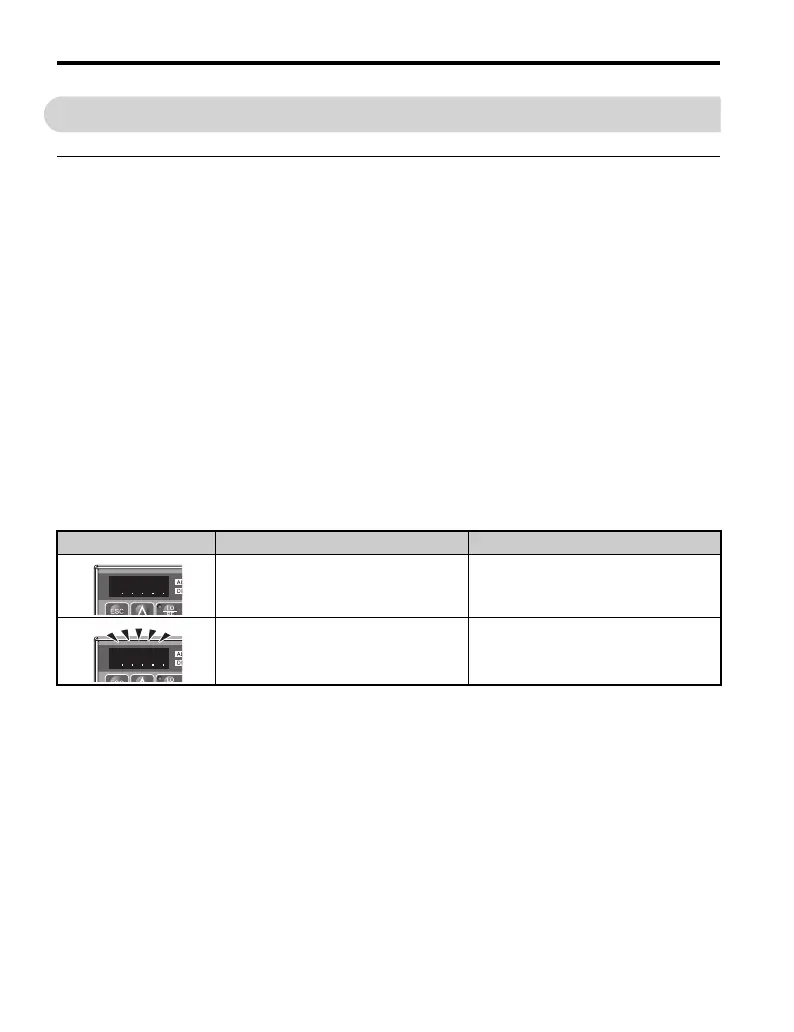

Table 1 Built-in LED Display Behavior with a Connected LCD Operator Option
Display LED Display Drive Status
Illuminated During Stop
Flashing During Run

YASKAWA Drive-V1000 Specifications

General

Series	V1000
Output Current	Varies by model (refer to specific model datasheet)
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Humidity	95% RH or less (non-condensing)
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Ground Fault, Short Circuit
Communication	Modbus RTU, PROFIBUS-DP, DeviceNet, EtherNet/IP
Braking Unit	Built-in or External (optional)
Input Voltage	3-Phase 200-240 VAC ±10% 50/60 Hz, 3-Phase 380-480 VAC ±10% 50/60 Hz
Output Voltage	0 to Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
