YASKAWA Drive-V1000 User Manual

6 Basic Operation
26 YASKAWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual

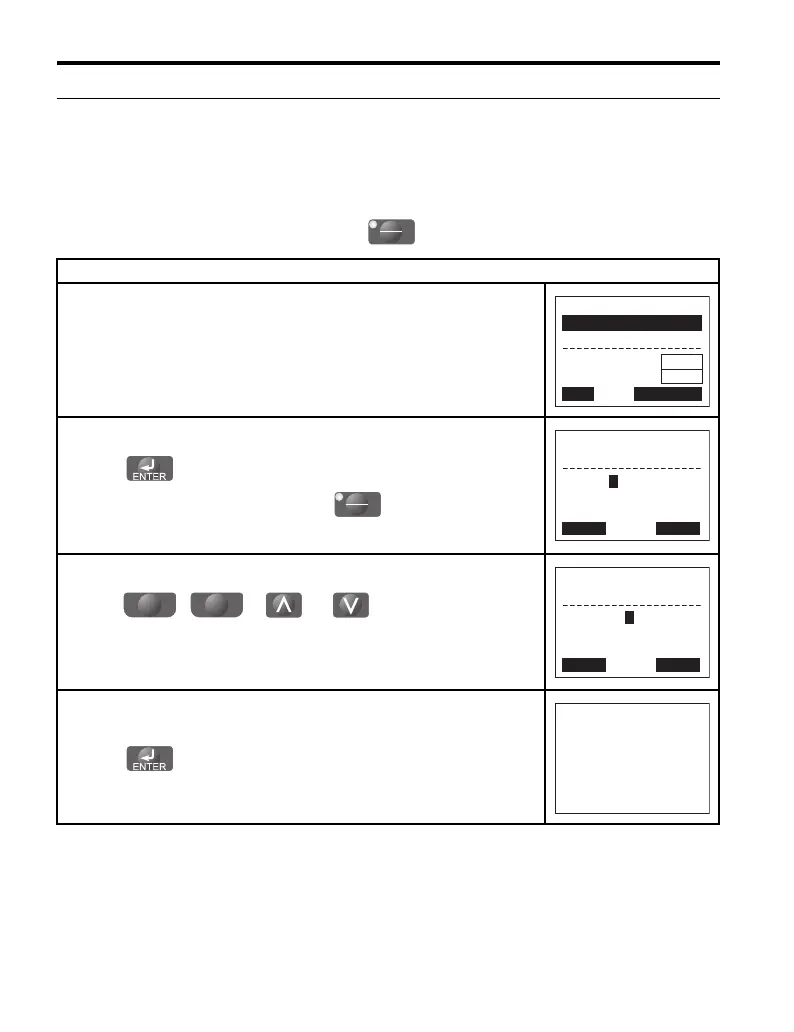

◆ Example: Basic Operation
The following procedures are examples of drive operation using the LCD Operator Option.
Note: Actual LCD display data can vary based on drive parameter settings.
■ Procedure Example: RUN/STOP
Note:
If b1-01 is not set to 0 (Operator), press to set LOCAL.
Procedure LCD Display
1. Apply main power to the drive. The Frequency Reference appears after
the initial display on the LCD Operator Option.
2. Press to show the Frequency Reference display.
If b1-01 is not set to 0 (Operator), press to set LOCAL.
3. Press until the frequency
reference changes to 006.00 Hz.
4. Press to set the output frequency.
RE
LO
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
RE
LO
←→
-MONITR-
FREF (d1-01)
U1-01= 000.00Hz
㧔0.00㨪60.00㧕
0.00Hz
DRV
FWD
Rdy
F1 F2
←→
-MONITR-
FREF (d1-01)
U1-01= 006.00Hz
㧔0.00㨪60.00㧕
0.00Hz
DRV
FWD
Rdy
Entry Accepted

YASKAWA Drive-V1000 Specifications

General

Series	V1000
Output Current	Varies by model (refer to specific model datasheet)
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Humidity	95% RH or less (non-condensing)
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Ground Fault, Short Circuit
Communication	Modbus RTU, PROFIBUS-DP, DeviceNet, EtherNet/IP
Braking Unit	Built-in or External (optional)
Input Voltage	3-Phase 200-240 VAC ±10% 50/60 Hz, 3-Phase 380-480 VAC ±10% 50/60 Hz
Output Voltage	0 to Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
