6 Basic Operation
YASK AWA TOBP C730600 29A V1000 Option LCD Operator Installation Manual 27

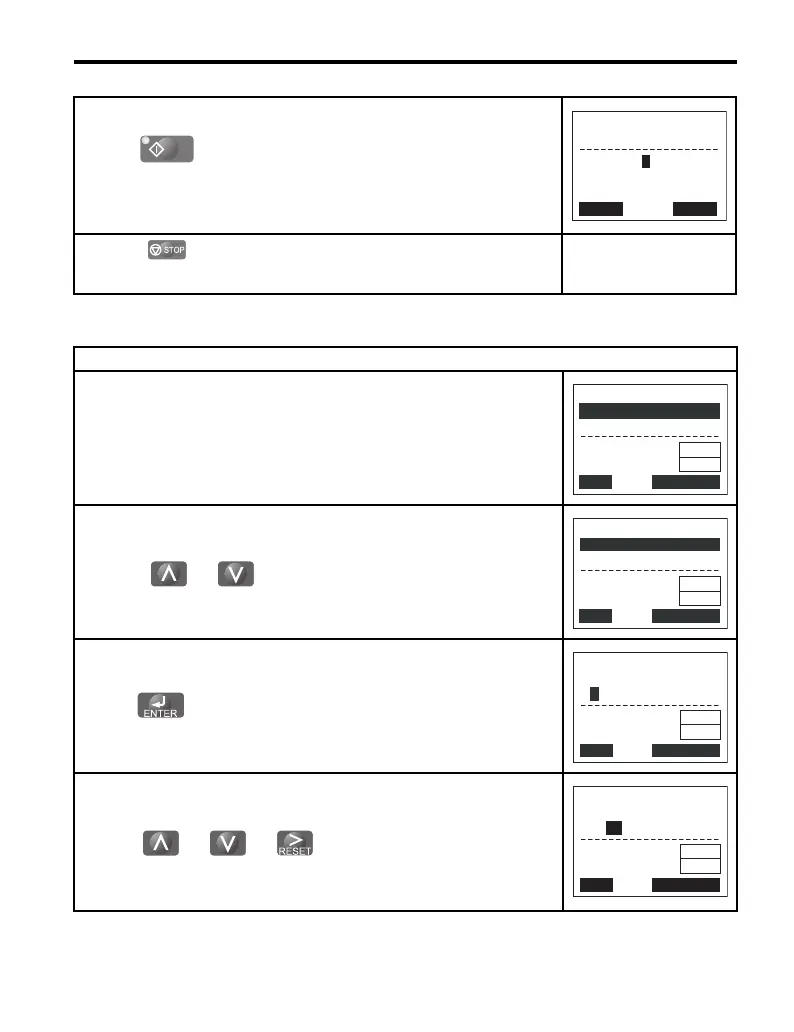

■ Procedure Example: Viewing Monitors
5. Press to start the motor. The motor should accelerate
up to 6 Hz while the RUN LED is on.
6. Press to stop the motor. The RUN LED will flash until the
motor comes to a complete stop.
Procedure LCD Screen
1. Frequency Reference display.
2. Press until the Monitor Menu display appears.
3. Press to show the Monitor display.
4. Press to view the drive monitors.
RUN
←→
-MONITR-
FREF (d1-01)
U1-01= 006.00Hz
㧔0.00㨪60.00㧕
0.00Hz
DRV
FWD
Rdy
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF(OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
- MODE -
U1-01= 6.00Hz
U1-02= 0.00Hz
LSEQ
LREF
U1-03= 0.00A
DRV
Monitor Menu
Rdy
JOG FWD FWD/REV
-MONITR-
U1 -01= 6.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
Monitor
JOG FWD FWD/REV
Rdy
LSEQ
LREF
-MONITR-
U2- 02= oPr
U2-03= 0.00Hz
U2-04= 0.00Hz
DRV
Last Fault
JOG FWD FWD/REV
Rdy
LSEQ
LREF

YASKAWA Drive-V1000 Specifications

General

Series	V1000
Output Current	Varies by model (refer to specific model datasheet)
Operating Temperature	-10°C to +50°C (14°F to 122°F)
Humidity	95% RH or less (non-condensing)
Overload Capacity	150% for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Ground Fault, Short Circuit
Communication	Modbus RTU, PROFIBUS-DP, DeviceNet, EtherNet/IP
Braking Unit	Built-in or External (optional)
Input Voltage	3-Phase 200-240 VAC ±10% 50/60 Hz, 3-Phase 380-480 VAC ±10% 50/60 Hz
Output Voltage	0 to Input Voltage
Communication Interface	RS-485
Storage Temperature	-20°C to +60°C (-4°F to +140°F)
