6.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
6.3.3 Standard-Structure Servomotor Connectors for 850 W to 15 kW
6-15
6
Cables and User-Assembled Wiring Materials for SGM7G Rotary Servomotors

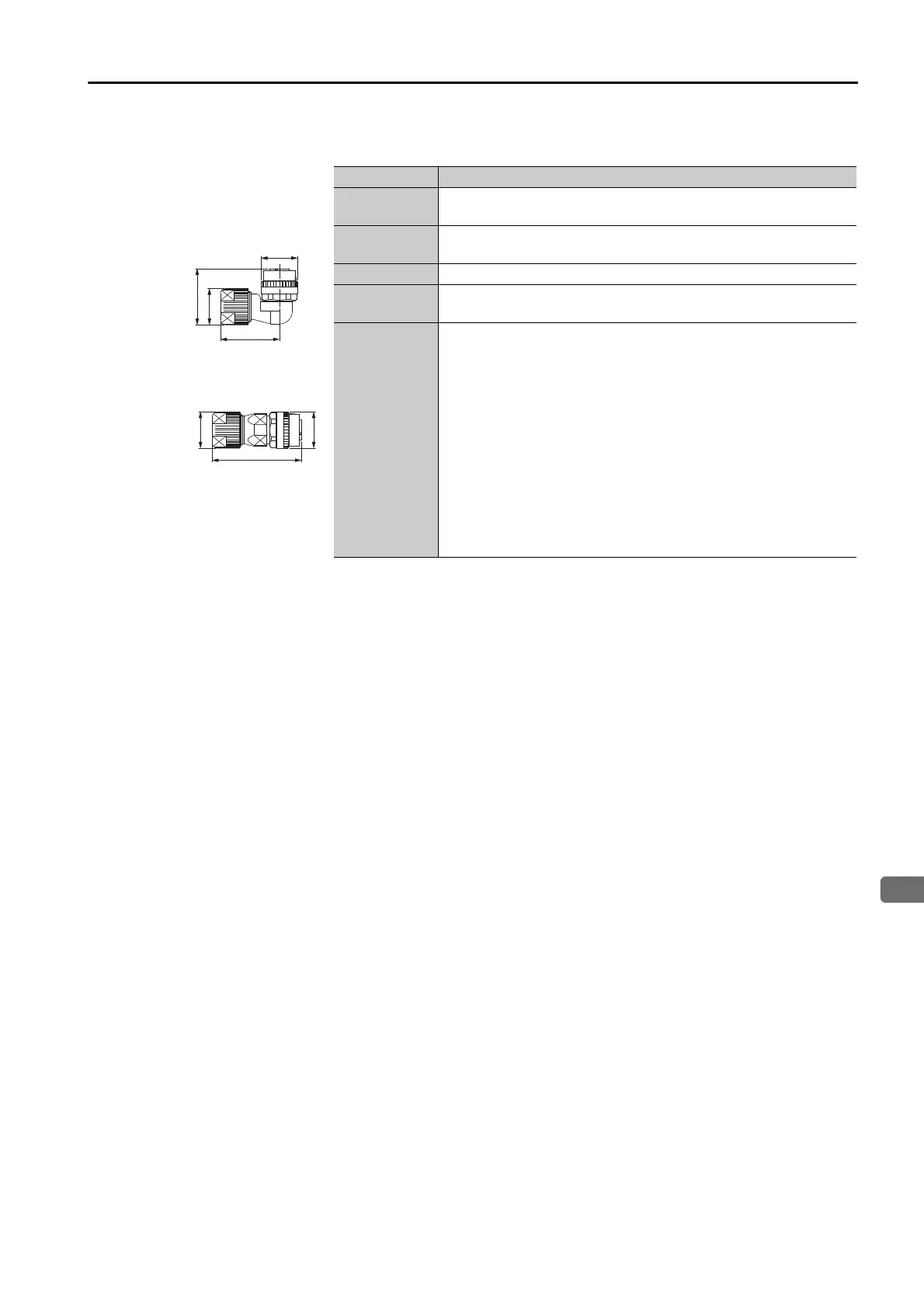

 Brake Power Supply Connector: CM10-P2S--D
Note: Cables are not included. Purchase them separately.
 Right-Angle Plugs
(CM10-AP2S-
-D)
 Straight Plugs
(CM10-SP2S-
-D)
[Unit: mm]
32.5
21 dia.
21 dia.
(34)
21 dia.
(51.4)
21 dia.
Item Specification
Connector
Models
• Straight Plug (CM10-SP2S--D)
• Right-Angle Plug (CM10-AP2S--D)
Protective
Structure
IP67
Manufacturer DDK Ltd.
User
Instructions
• Straight Plug (CM10-SP2S--D): TC-583
• Right-Angle Plug (CM10-AP2S--D): TC-573
Contact
Models
 Loose Contacts (100 per bag)
• Crimped Contacts: CM10-#22SC(C3)-100
Wire size: AWG16 to AWG20, Outer diameter of insulating
sheath: 1.87 mm to 2.45 mm
Manual Crimping Tool: 357J-50448T
• Soldered Contacts: CM10-#22SC(S2)-100
Wire size: AWG16 max.
 Reeled Contacts (4,000 per reel)
• Crimped Contacts: CM10-#22SC(C3)-4000
Wire size: AWG16 to AWG20, Outer diameter of insulating
sheath: 1.87 mm to 2.45 mm
Semi-automatic Crimping Tool: AP-A50541T (Set)
AP-A50541T-1 (Applicator)
Note: The Semi-automatic Tool Set includes the press and Applicator
(crimper).
