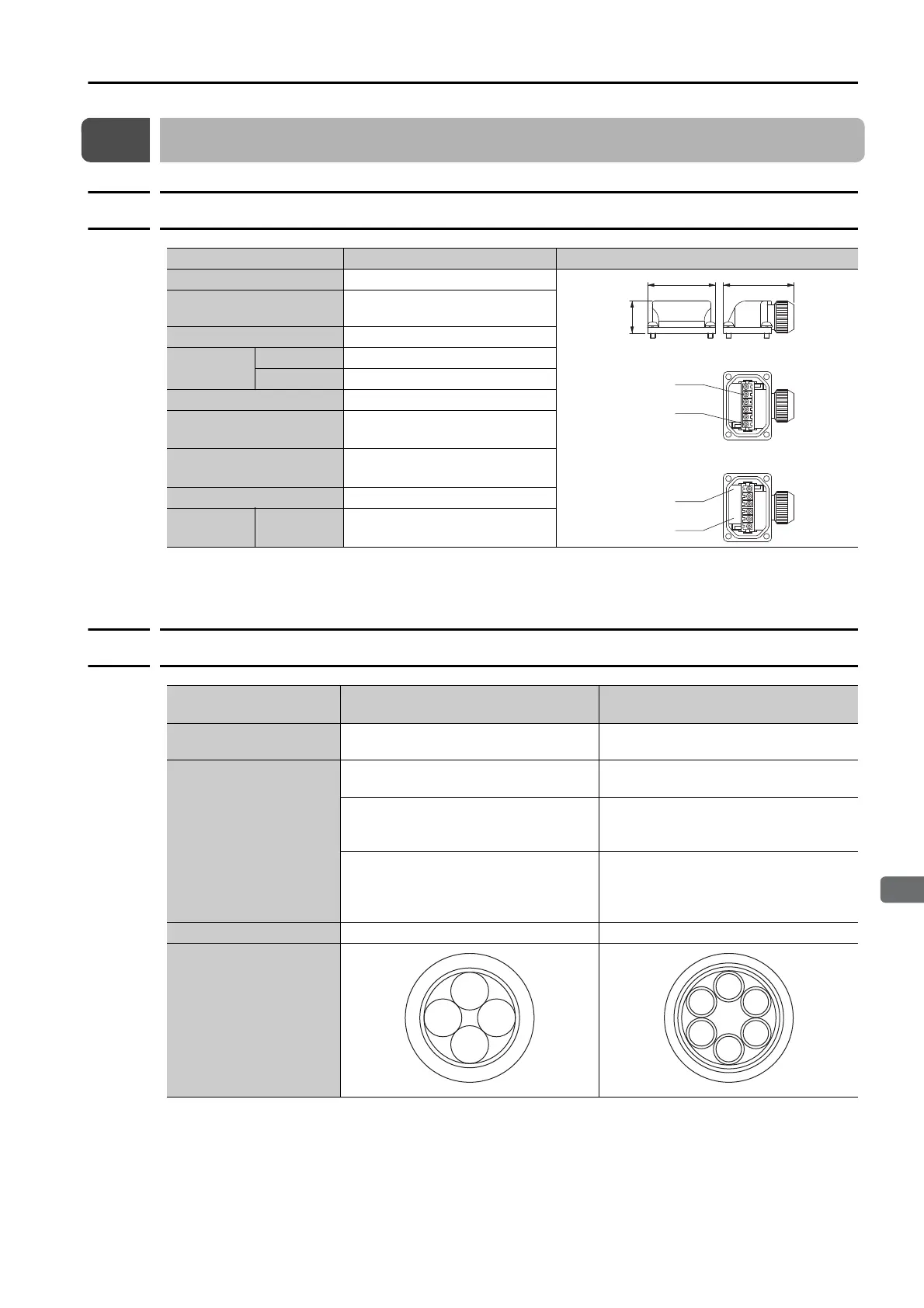

6.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
6.3.1 Servomotor Connector Kits for 300 W or 450 W
6-11
6
Cables and User-Assembled Wiring Materials for SGM7G Rotary Servomotors
6.3
User-Assembled Wiring Materials for Servomotor Main Circuit Cables
6.3.1
Servomotor Connector Kits for 300 W or 450 W
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
6.3.2
Cables without Connectors for 300 W or 450 W
* Replace the boxes () in the order number with the cable length (03, 05, 10, 15, 20, 30, 40, or 50).
Note: These are Flexible Cables.
Item Description External Dimensions [mm]
Order Number JZSP-CVM9-1-E
Manufacturer
Japan Aviation Electronics
Industry, Ltd.
User Instructions JAHL-50020
Compo-
nents
Plug JNYFX06SJ3
Contacts ST- T M H - S-C1B
Applicable Wire Sizes AWG18 to AWG22
Applicable Cable
Diameter
6.9 mm to 8.3 mm
Outer Diameter of
Insulating Sheath
1.3 mm to 1.8 mm
Mounting Screws M3 pan-head screws
Crimping
Tool*
Hand Tool CT160-3-TMH5B
39.638
18
2
1
345
2
1
345
PE
PE
2
1
345
2
1
345
PE
PE
For cable installed away from load
Pin 5
Pin 1
Pin layout
For cable installed toward load
Pin 1
Pin 5
Item
For Servomotors without Holding
Brakes (4 Wires)
For Servomotors with Holding Brakes
(6 Wires)
Order Number*
JZSP-CVM29--E
(maximum length: 50 m)
JZSP-CVM49--E
(maximum length: 50 m)
Specifications
UL2586 (rated temperature:105°C)
AWG20 × 4C
UL2586 (rated temperature:105°C)
AWG20 × 6C
Power lines: AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.77 mm
Power lines: AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.77 mm
–
Holding brake lines: AWG20
(0.52 mm
2
)
Outer diameter of insulating sheath:
1.77 mm
Finished Diameter 7.3 mm ±0.3 mm 7.3 mm ±0.3 mm
Internal Structure and
Lead Colors
Black
Black
Blue Red
White
Green
/yellow
To Next Page
