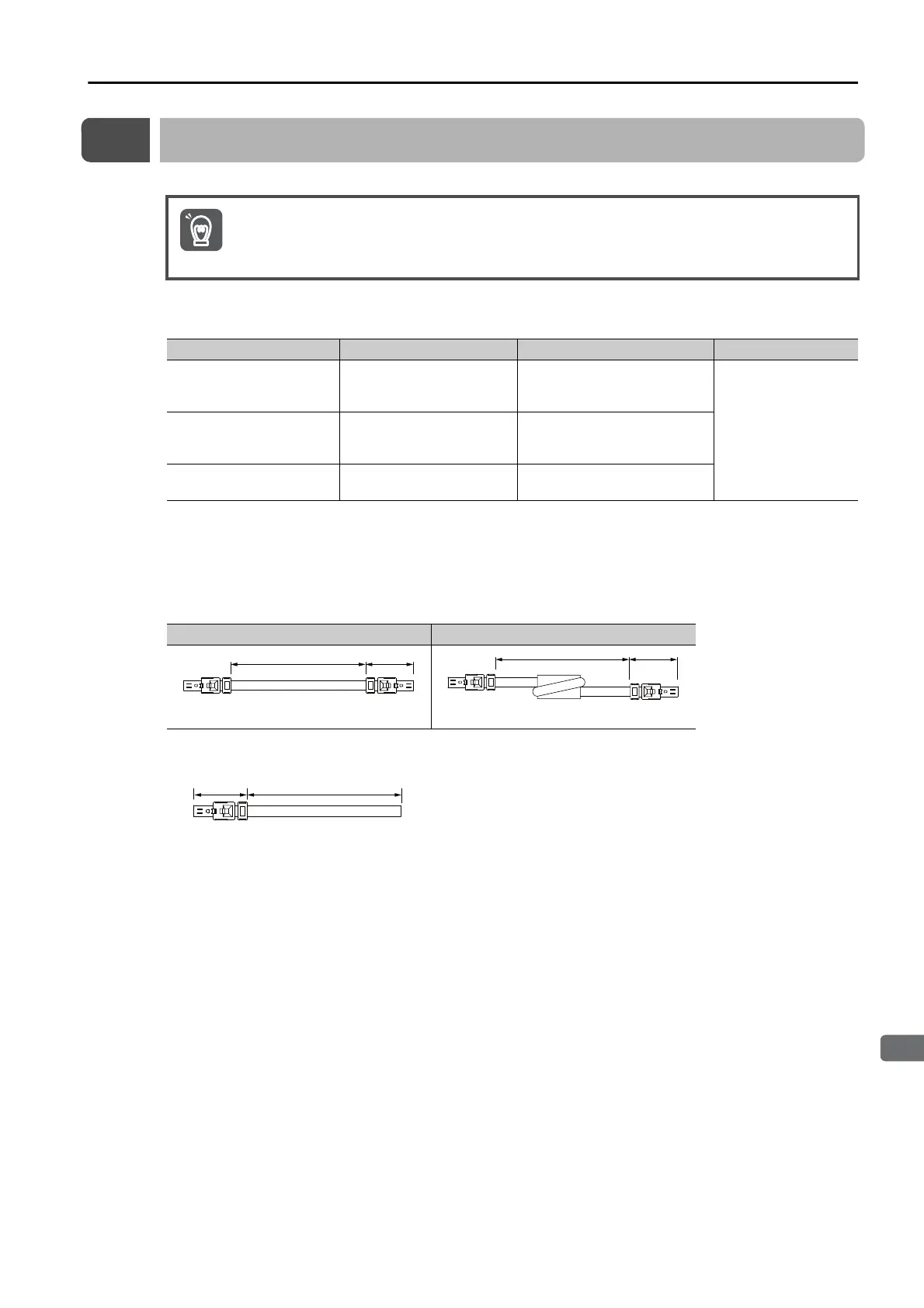

10.8 MECHATROLINK-III Communications Cable
10-31
10
Cables and User-Assembled Wiring Materials for SERVOPACKs
10.8
MECHATROLINK-III Communications Cable
Selection Table
* Replace the boxes () in the order number with the code for the cable length.
External Dimensions
Cables with Connectors on Both Ends
Cable with Loose Wires at One End
Use the Yaskawa-specified cables for the MECHATROLINK Communications Cables.
Operation will not be dependable due to low noise resistance with any other cable.
Typ e Length (L) Order Number* Inquires
Cables with Connectors
on Both Ends and No
Ferrite Cores
0.2 m, 0.5 m, 1 m, 2 m,
3 m, 4 m, 5 m, 10 m, 20
m, 30 m, and 50 m
JEPMC-W6012-
-E
(
: A2/A5/01/02/03/04/05/
10/20/30/50)
Yaskawa C ontrols
Co., Ltd.
Cables with Connectors
on Both Ends and Ferrite
Cores
10 m, 20 m, 30 m, and
50 m
JEPMC-W6013-
-E
(
: 10/20/30/50)
Cable with Loose Wires
at One End
0.5 m, 1 m, 3 m, 5 m,
10 m, 30 m, and 50 m
JEPMC-W6014-
-E
(
: A5/01/03/05/10/30/50)
Cables without Ferrite Cores Cables with Ferrite Cores
Important
L 33
Unit: mm
L 33
Unit: mm
L33
Unit: mm
