10.5 I/O Signal Cables for SERVOPACKs
10.5.4 For Servo Section of Σ-7C SERVOPACKs
10
Cables and User-Assembled Wiring Materials for SERVOPACKs
10-25

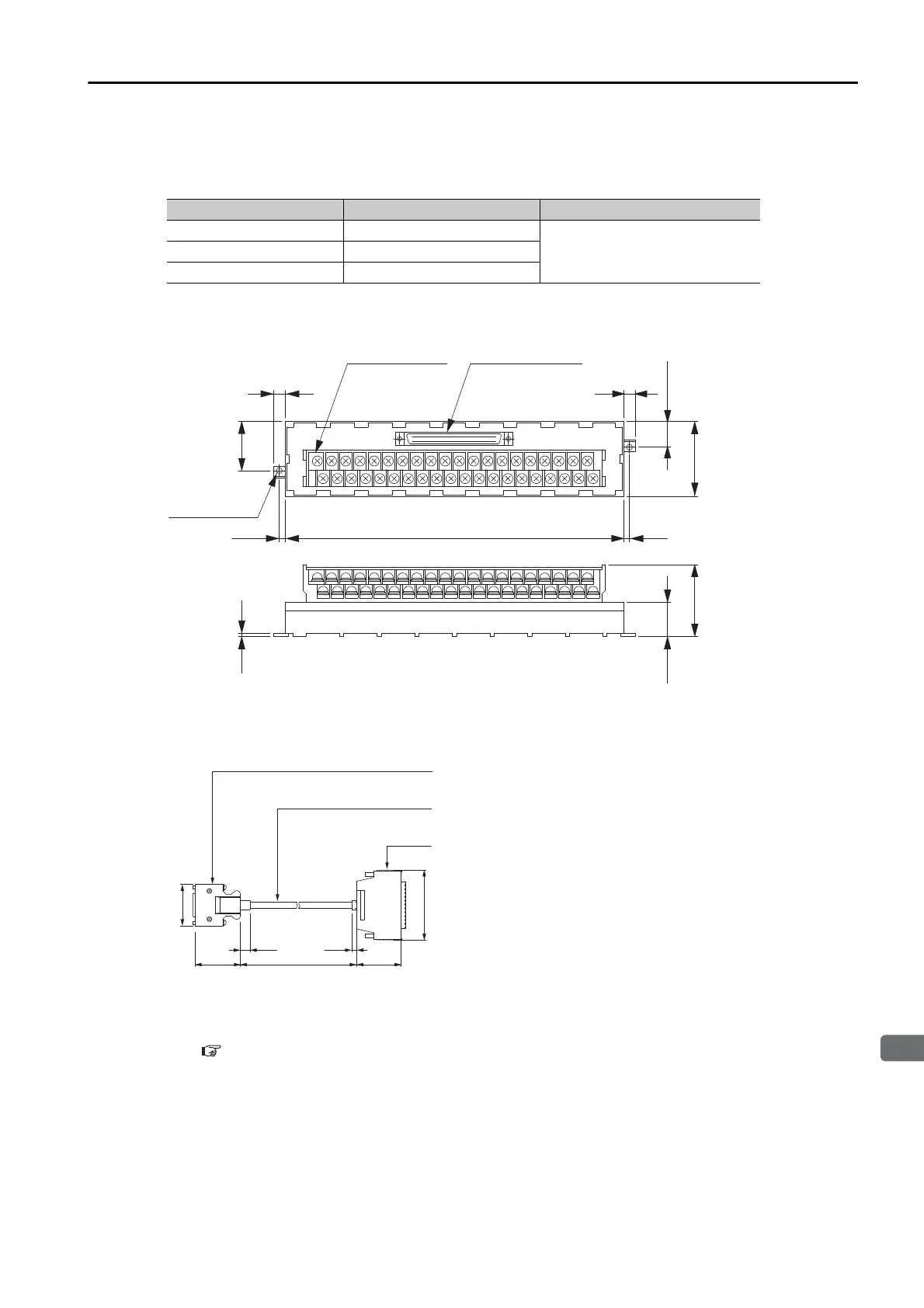

Connector-Terminal Block Converter Unit
 Selection Table
 Dimensional Drawing
 Dimensional Drawing of Enclosed Cable
Note: The same pin numbers are used for the SERVOPACK connector and the terminal block. Pins 1 to 36 are
wired. Do not connect pins 37 and higher.
To assemble your own cables, refer to the following section for the wiring specifications.
 Wiring Specifications on page 10-20
Order Number Length of Enclosed Cable (L) Inquiries
JUSP-TA36P-E 0.5 m
Yaskawa Controls Co., Ltd.JUSP-TA36P-1-E 1 m
JUSP-TA36P-2-E 2 m
Can be mounted to DIN rail.
40
39
1
2
B20
A20
B1
A1
29.5
20.5
15.5
45
2
7
7
43
3.5
202.5
3.5
Connector Plug (40P)
FCN-364P040-AU
Terminal block (40P)
M3.5 screws
2 × 3.5 dia. holes
Unit: mm
Cable: AWG28, 9P+18C
UL20276 VW-1
Cover: FCN-361J040-AU (Fujitsu Ltd.)
Cover: 10136-6000EL (3M Japan Limited)
L
Connector: FCN-360C040-B (Fujitsu Ltd.)
Shell: 10336-52A0-008 (3M Japan Limited)
(47)
(39)
(20)
(10)
(72.72)
(43.5)
Unit: mm
