YASKAWA E Series User Manual

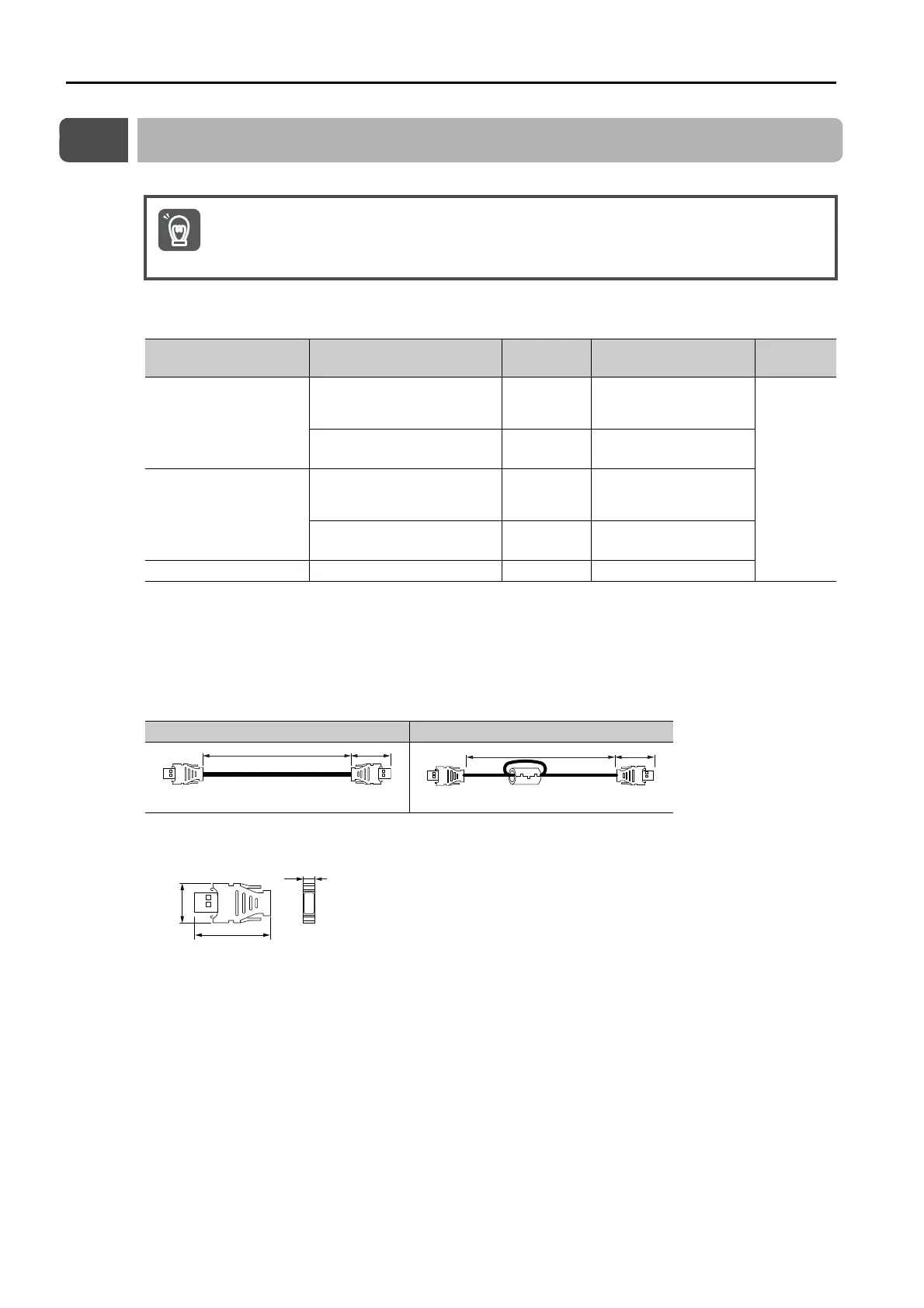

10.7 MECHATROLINK-II Communications Cable
10-30
10.7 MECHATROLINK-II Communications Cable
Selection Table
*1. Replace the boxes () in the order number with the code for the cable length.
*2. The recommended bending radius (R) is 19.2 mm or larger.
External Dimensions
 Cable with Connectors on Both Ends
 Terminators
Use the Yaskawa-specified cables for the MECHATROLINK Communications Cables.
Operation will not be dependable due to low noise resistance with any other cable.
Type Length (L)
Cable Char-
acteristic
Order Number
*1
Inquires
Cables with Connectors
on Both Ends and No
Ferrite Cores
0.5 m, 1 m, 2 m, 3 m, 4 m,
5 m, 6 m, 10 m, 20 m, 30 m,
40 m, and 50 m
Standard
Cable
JEPMC-W6002-
-E
(
: A5/01/03/04/05/
06/10/20/30/40/50)
Yaskawa
Controls
Co., Ltd.
5 m, 10 m, and 15 m
Flexible
Cable
*2
JEPMC-W6005--E
(
: 05/10/15)
Cables with Connectors
on Both Ends and Fer-
rite Cores
0.5 m, 1 m, 3 m, 5 m, 10 m,
20 m, 30 m, 40 m, and 50 m
Standard
Cable
JEPMC-W6003-
-E
(
: A5/01/03/05/10/
20/30/40/50)
5 m, 10 m, and 15 m
Flexible
Cable
*2
JEPMC-W6006--E
(
: 05/10/15)
Terminators – – JEPMC-W6022-E
Cables without Ferrite Cores Cables with Ferrite Cores
Important
L 46
Unit: mm
L
46
Unit: mm
(8)
21
46
Unit: mm
