YASKAWA E Series User Manual

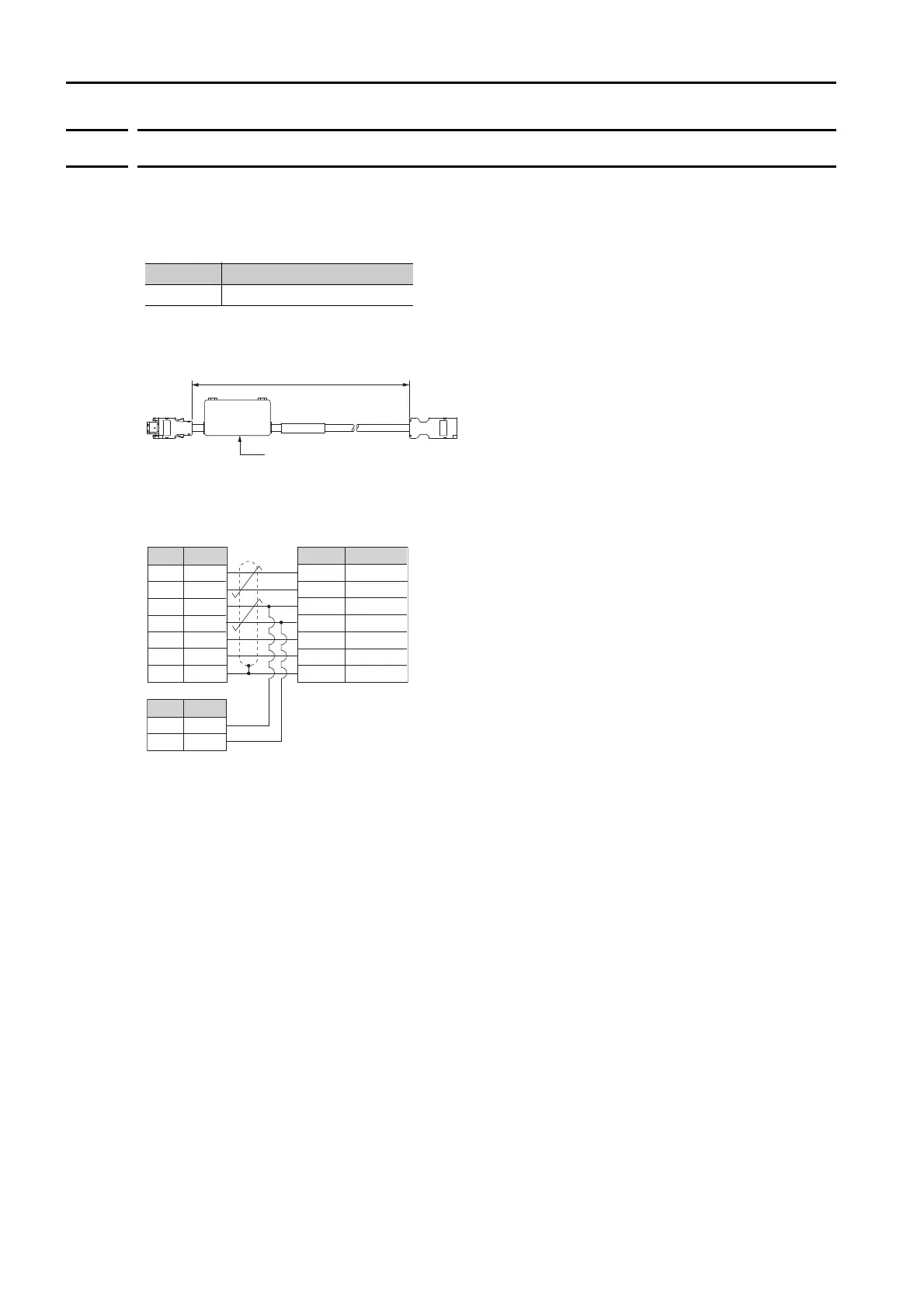

7.4 Relay Encoder Cable of 30 m to 50 m
7.4.2 Relay Encoder Cables with Battery Cases
7-8
7.4.2 Relay Encoder Cables with Battery Cases
Note: This Cable is not required if you use a Servomotor with an Incremental Encoder or connect a battery to the
host controller.
Selection Table
External Dimensions
Wiring Specifications
Length (L) Order Number
0.3 m JZSP-CSP12-E
Encoder end
L
SERVOPACK end
Battery Case
(Battery included)
Pin
Signal
3
1
Battery Case
Pin Wire Color
Black
Red
Light blue/white
Light blue
Orange/white
Orange
3
5
4
6
2
1
Encoder (motor) end
Pin Signal
6
5
4
3
2
1
Shell FG Shell FG
SERVOPACK end
Shield wire
/PS
PS
BAT (-)
BAT (+)
BAT (-)
BAT (+)
PG 5 V
PG 0 V
