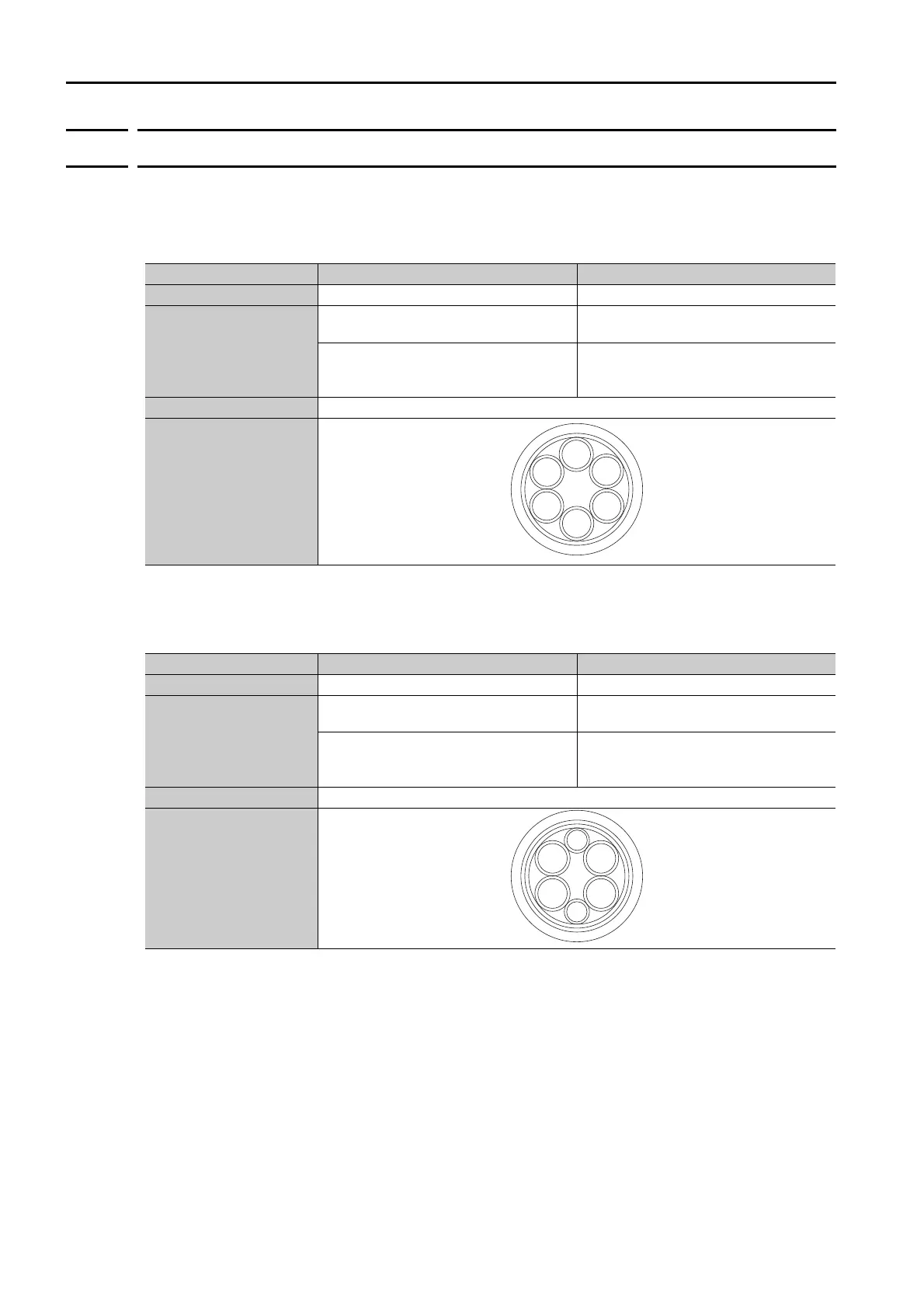

8.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
8.3.2 Cables without Connectors
8-16
8.3.2
Cables without Connectors
SGM7D Main Circuit Cables
SGM7D-01G, -05G, -
H, and -
K
* Replace the boxes () in the order number with the cable length (05, 10, 15, 20, or 50).
SGM7D-F, - G (Excluding -01G and -05G), -I, -J,
and -L
* Replace the boxes () in the order number with the cable length (05, 10, 15, 20, or 50).
Item Standard Cable Flexible Cable
Order Number* JZSP-CSM90--E JZSP-CSM80--E
Specifications
UL2517 (rated temperature: 105°C)
AWG20 × 6C
UL2517 (rated temperature: 105°C)
AWG22 × 6C
AWG20 (0.52 mm
2
)
Outer diameter of insulating sheath:
1.53 mm
AWG22 (0.33 mm
2
)
Outer diameter of insulating sheath:
1.37 mm
Finished Diameter 7 mm ± 0.3 mm
Internal Structure and
Lead Colors
Item Standard Cable Flexible Cable
Order Number* JZSP-CSM91--E JZSP-CSM81--E
Specifications
UL2517 (rated temperature: 105°C)
AWG16 × 4C, AWG20 × 2C
UL2517 (rated temperature: 105°C)
AWG16 × 4C, AWG22 × 2C
Power lines: AWG16 (1.31 mm
2
)
Outer diameter of insulating sheath:
2.15 mm
Power lines: AWG16 (1.31 mm
2
)
Outer diameter of insulating sheath:
2.35 mm
Finished Diameter 8 mm ± 0.3 mm
Internal Structure and
Lead Colors
Black
White
Red
Black
Blue
Green/
(yellow)
Black
Blue White
Red
Black
Green/
yellow
To Next Page
