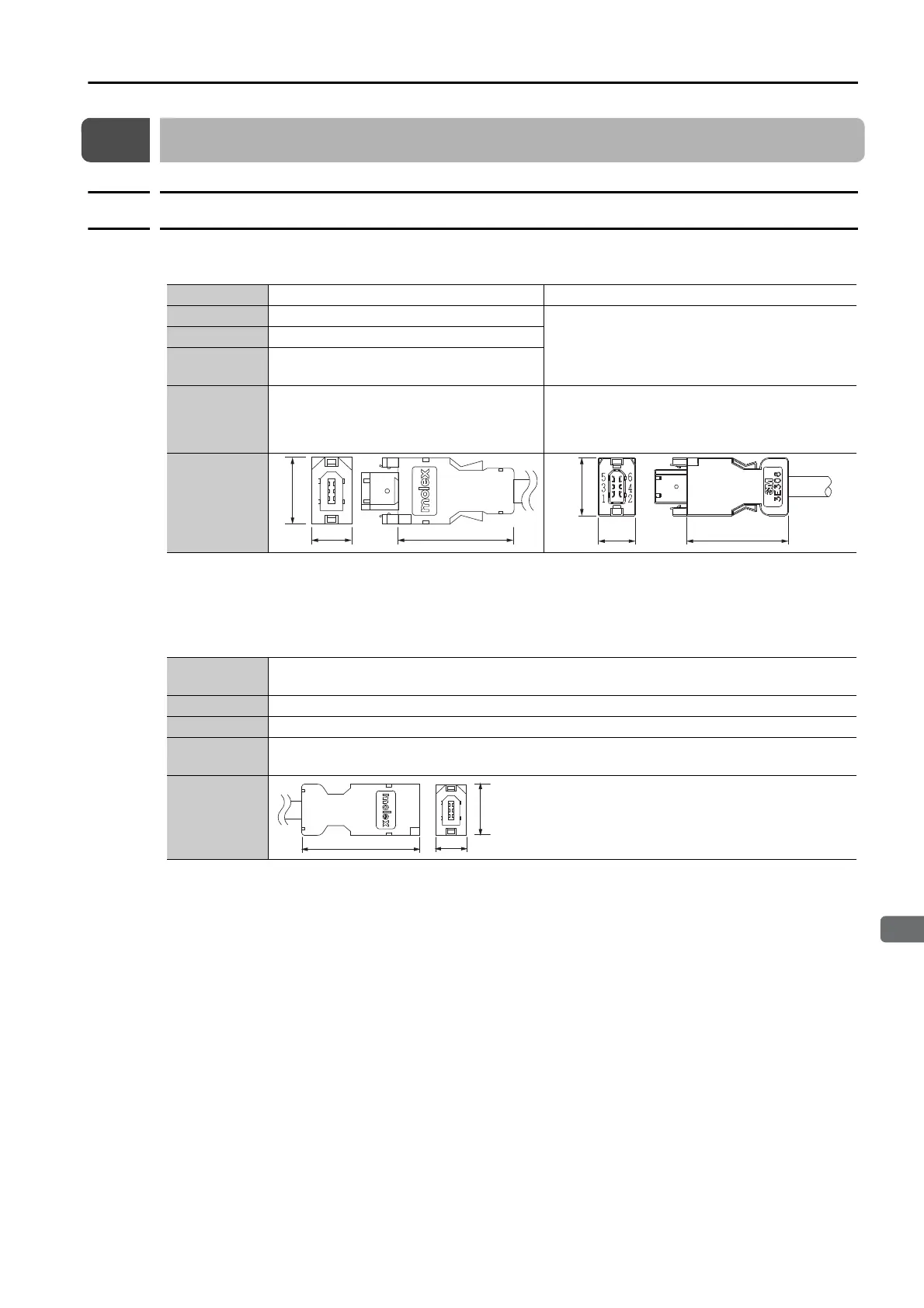

7.5 User-Assembled Wiring Materials for Encoder Cables
7.5.1 Connector Kits
7-9
7
Cables and User-Assembled Wiring Materials for SGMMV Rotary Servomotors
7.5 User-Assembled Wiring Materials for Encoder Cables
7.5.1 Connector Kits
SERVOPACK Connector Kits
* This item is not available from Yaskawa Controls Co., Ltd. Order it directly from 3M Japan Limited.
Note: Cables are not included. Purchase them separately.
Encoder Connector Kits
Type Standard Cable Compatible Connector Kit*
Inquiries Yaskawa Controls Co., Ltd.
3M Japan Limited
Manufacturer Molex Incorporated
Order
Number
JZSP-CMP9-1-E
Specifications
55100-0670 (soldered)
Product specifications: PS-54280
Receptacle: 3E206-0100 KV (soldered)
Shell Kit: 3E306-3200-008
Product specifications: JNPS-1042 and
JNPS-1043
External
Dimensions
[mm]
Order
Number
JZSP-CMP9-2-E
Manufacturer Molex Incorporated
Components 54280-0609 (soldered)
Product
Specifications
PS-54280
External
Dimensions
[mm]
12
3 4
56
(19)
(12)
(33)
(33)
(12)
(19)
1
2
3
4
5
6
(19)
(12)
(44)
