6.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
6.3.4 IP67-Structure/European-Safety-Standard-Compliant Servomotor Connectors for 850 W to 15 kW
6-17
6
Cables and User-Assembled Wiring Materials for SGM7G Rotary Servomotors
For Servomotors with Holding Brakes
A Servomotor Connector and Brake Power Supply Connector are required. The Servomotor
Connector is also used for Servomotors without Holding Brakes. For the SGM7G-03 to
SGM7G-05, there is a brake terminal on the Servomotor Connector.
Note: 1. Yaskawa does not specify what wiring materials to use. Use appropriate wiring materials for the current
specifications and connectors.
2. Brake Power Supply Connector Kits are available from Yaskawa Controls Co., Ltd. Use the following model
numbers.
*1. M-size Connector Kits are available as a standard products.
*2. A 357J-50448T Crimping Tool from DDK Ltd. is required.

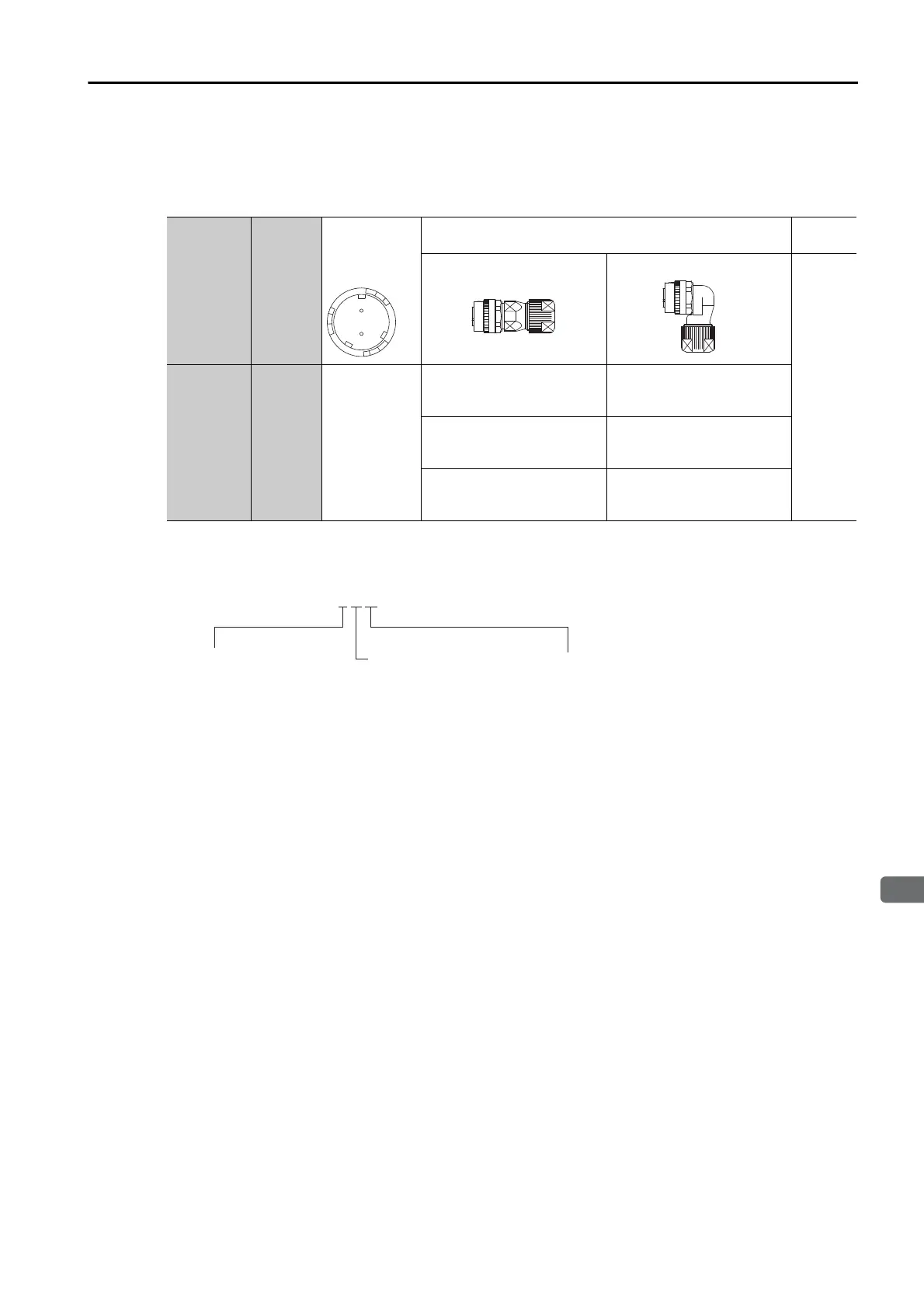

Servomo-
tor Model
Capacity
Servomotor
Connector
Model
(Receptacle)
Order Number
Manu-
facturer
Straight Plug
Right-Angle Plug
DDK
Ltd.
SGM7G-09
SGM7G-13
SGM7G-20
SGM7G-30
SGM7G-44
SGM7G-55
SGM7G-75
SGM7G-1A
SGM7G-1E
850 W to
15 kW
CM10-R2P-D
CM10-SP2S-S-D
Applicable cable diameter:
4.0 mm to 6.0 mm
CM10-AP2S-S-D
Applicable cable diameter:
4.0 mm to 6.0 mm
CM10-SP2S-M-D
Applicable cable diameter:
6.0 mm to 9.0 mm
CM10-AP2S-M-D
Applicable cable diameter:
6.0 mm to 9.0 mm
CM10-SP2S-L-D
Applicable cable diameter:
9.0 mm to 11.6 mm
CM10-AP2S-L-D
Applicable cable diameter:
9.0 mm to 11.6 mm
1
2
J Z S P - C V B 9 - S M S2 - E
Connector Shape
S: Straight plug
A: Right-angle plug
Contact Pin Type
S2: Soldered
C3: Crimped
*2
Bush Size
*1
S: S size (4.0 mm to 6.0 mm dia.)
M: M size (6.0 mm to 9.0 mm dia.)
L: L size (9.0 mm to 11.6 mm dia.)
