YASKAWA E Series User Manual

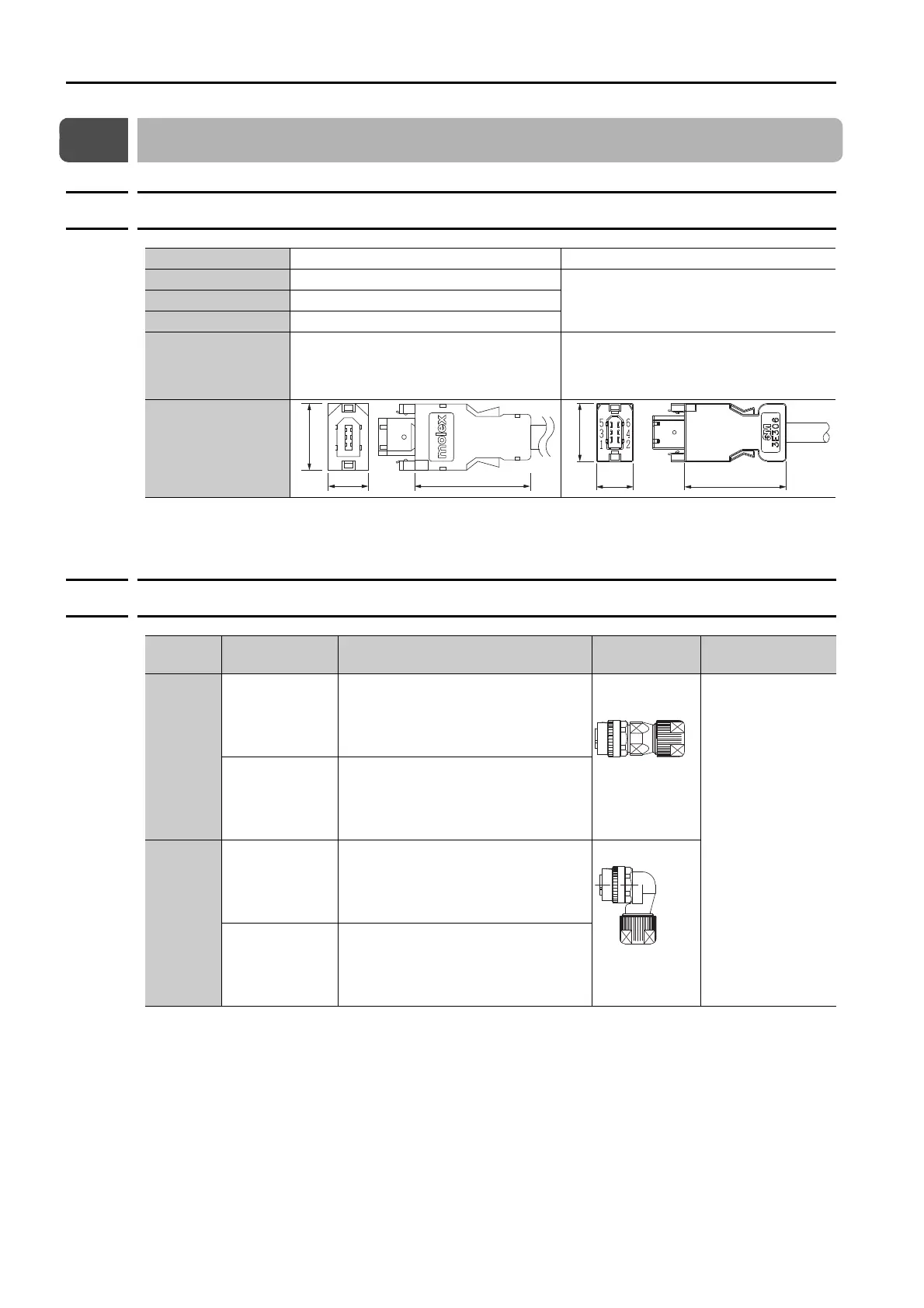

6.6 User-Assembled Wiring Materials for Encoder Cables
6.6.1 SERVOPACK Connector Kits
6-22
6.6 User-Assembled Wiring Materials for Encoder Cables
6.6.1 SERVOPACK Connector Kits
* This item is not available from Yaskawa Controls Co., Ltd. Order it directly from 3M Japan Limited.
Note: Cables are not included. Purchase them separately.
6.6.2 IP67-Structure Encoder Connector Kits
* A Crimping Tool is required. The following Crimping Tool is applicable to the Cables provided by Yaskawa. When
using other wire sizes, contact the connector manufacturer for crimping tools.
Crimping Tool: 357J-52667T
Type Standard Connector Kit Compatible Connector Kit*
Inquires Yaskawa Controls Co., Ltd.
3M Japan LimitedManufacturer Molex Incorporated
Order Number JZSP-CMP9-1-E
Specifications
55100-0670 (soldered)
Product specifications: PS-54280
Receptacle: 3E206-0100 KV (soldered)
Shell Kit: 3E306-3200-008
Product specifications: JNPS-1042 and
JNPS-1043
External
Dimensions [mm]
12
3 4
56
(19)
(12)
(33)
(33)
(12)
(19)
Type Order Number Specification
External
Dimensions
Manufacturer
Straight
Plug
JZSP-CVP9-1-E
• Plug: CM10-SP10S-M-D
• Contacts: Crimped*
CM10-#22SC(C4)-100
• Applicable cable diameter: 6.0 mm
to 9.0 mm
Accessories:
Contacts
DDK Ltd.
JZSP-CVP9-3-E
• Plug: CM10-SP10S-M-D
• Contacts: Soldered
CM10-#22SC(S1)-100
• Applicable cable diameter: 6.0 mm
to 9.0 mm
Right-
Angle
Plug
JZSP-CVP9-2-E
• Plug: CM10-AP10S-M-D
• Contacts: Crimped*
CM10-#22SC(C4)-100
• Applicable cable diameter: 6.0 mm
to 9.0 mm
Accessories:
Contacts
JZSP-CVP9-4-E
• Plug: CM10-AP10S-M-D
• Contacts: Soldered
CM10-#22SC(S1)-100
• Applicable cable diameter: 6.0 mm
to 9.0 mm
