9.4 Serial Converter Unit
9.4.1 Selection Table
9-30
9.4 Serial Converter Unit
9.4.1 Selection Table
Order Numbers

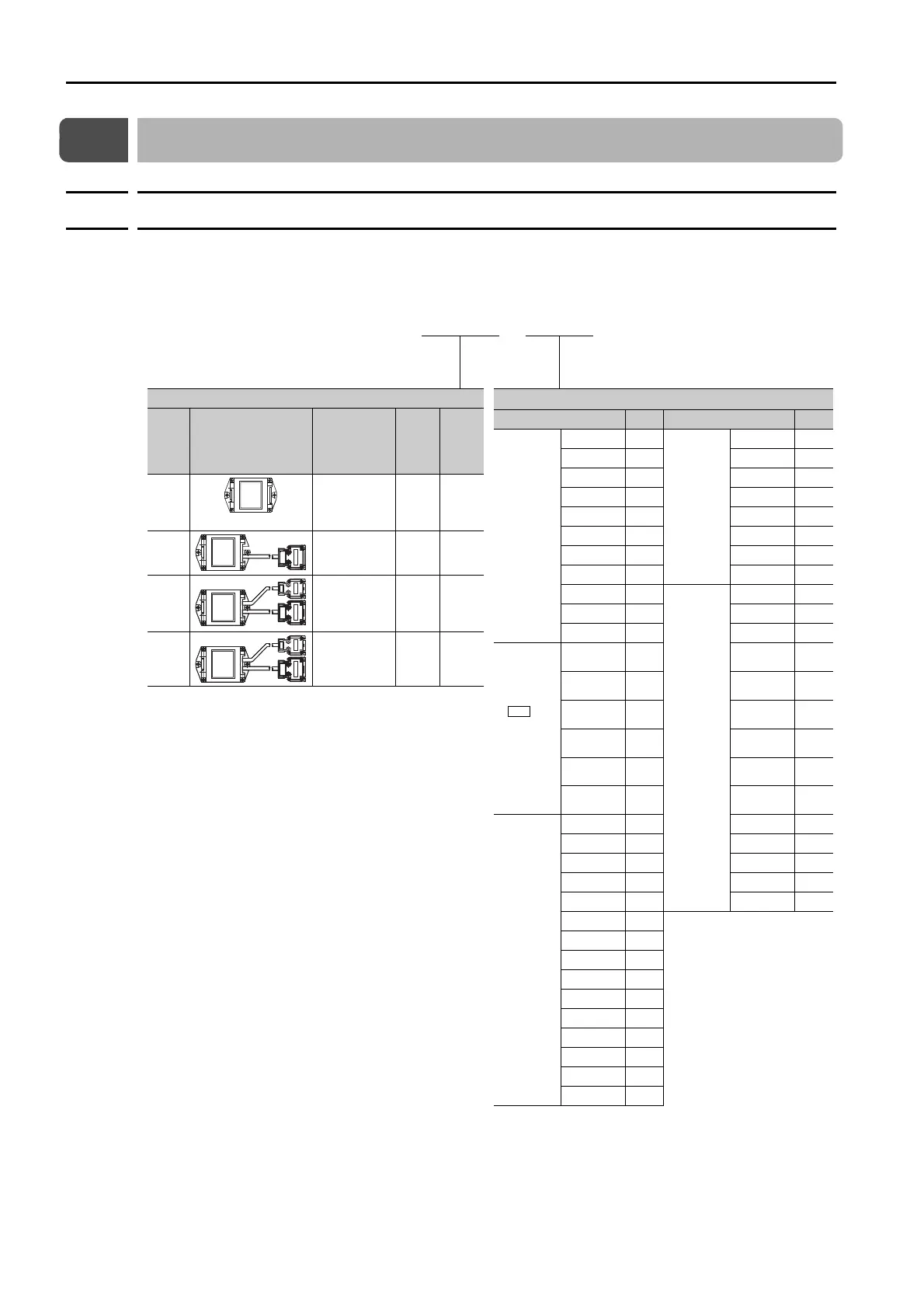

Use the following tables to select the Serial Converter Unit.
JZDP - 00 - 
Serial Converter Unit Model
Code Appearance
Applicable
Linear
Encoder
Polar-
ity
Sen-
sor
Ther-
mal
Pro-
tector
H003
J003
From
Dr. JOHANNES
HEIDENHAIN
GmbH
Not
pro-
vided
Not
pro-
vided
H005
J005
From
Renishaw plc
Not
pro-
vided
Not
pro-
vided
H006
J006
From
Dr. JOHANNES
HEIDENHAIN
GmbH
Pro-
vided
Pro-
vided
H008
J008
From
Renishaw plc
Pro-
vided
Pro-
vided
Applicable Linear Servomotors
Servomotor Model Code Servomotor Model Code
SGLGW-
(coreless
models)
For Stan-
dard-
Force
Magnetic
Way
30A050C 250
SGLFW
(models
with
F-type
iron cores)
20A090A 017
30A080C 251 20A120A 018
40A140C 252 35A120A 019
40A253C 253 35A230A 020
40A365C 254 50A200B 181
60A140C 258 50A380B 182
60A253C 259 1ZA200B 183
60A365C 260 1ZA380B 184
90A200C 264
SGLTW-
(models
with
T- ty pe
iron cores)
20A170A 011
90A370C 265 20A320A 012
90A535C 266 20A460A 013
SGLGW-
+
SGLGM-
-M
(coreless
models)
For High-
Force
Magnetic
Way
40A140C 255 35A170A 014
40A253C 256 35A320A 015
40A365C 257 35A460A 016
60A140C 261 35A170H 105
60A253C 262 35A320H 106
60A365C 263 50A170H 108
SGLFW2
(models
with
F-type
iron cores)
30A070A 628 50A320H 109
30A120A 629 40A400B 185
30A230A 630 40A600B 186
45A200A 631 80A400B 187
45A380A 632 80A600B 188
90A200A
 1 633
90A380A
 1 634
90A560A
 1 648
1DA380A
 1 649
1DA560A
 1 650
90A200A
 L 699
90A380A
 L 700
90A560A
 L 701
1DA380A
 L 702
1DA560A
 L 703
