YASKAWA E Series User Manual

10.10 I/O Signal Cables for INDEXER Modules
10.10.3 Cables with Terminal Block on One End
10-36

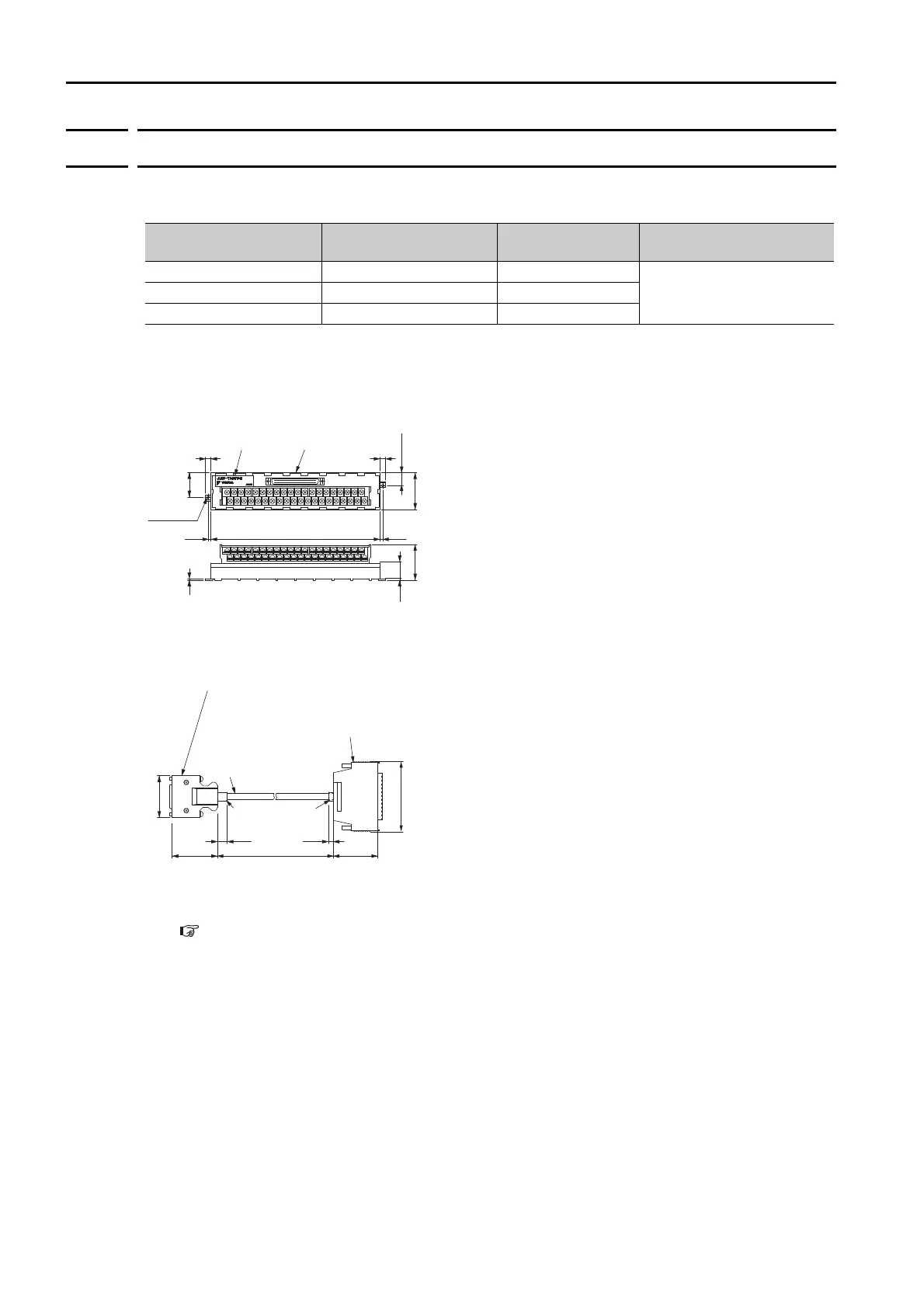

10.10.3 Cables with Terminal Block on One End
Selection Table
Dimensional Drawings
 Terminal Block
 Enclosed Cable
Note: The same pin numbers are used for the SERVOPACK connector and the terminal block. Pins 1 to 36 are
wired. Do not connect pins 37 and higher.
To assemble your own cables, refer to the following section for the wiring specifications.
10.10.1 Cables with Loose Wires at One End on page 10-33
Order Number
Length of Enclosed Cable
(L)
Approx. Mass Inquiries
JUSP-TA36V-E 0.5 m 100 g
Yaskawa Controls Co., Ltd.JUSP-TA36V-1-E 1 m 200 g
JUSP-TA36V-2-E 2 m 400 g
2 × 3.5 dia.
Terminal Block
Converter Unit
40
39
1
2
B20
A20
B1
A1
Nameplate
77
3.5 202.5 3.5
45
29.5
15.5
Can be mounted to DIN rail.
20.5
2
43
Unit: mm
Cable (black)
AWG28×18P
Cover: FCN-361J040-AU (from Fujitsu Ltd.)
Cover: 10136-6000EL (from 3M Japan Limited)
L
Connector: FCN-360C040-B (from Fujitsu Ltd.)
Heat-shrinkable tube
(black)
Shell: 10336-52A0-008 (from 3M Japan Limited)
(47)(39)
(20) (10)
(72.72)
(43.5)
Unit: mm
