YASKAWA E Series User Manual

12.6 AC/DC Reactors

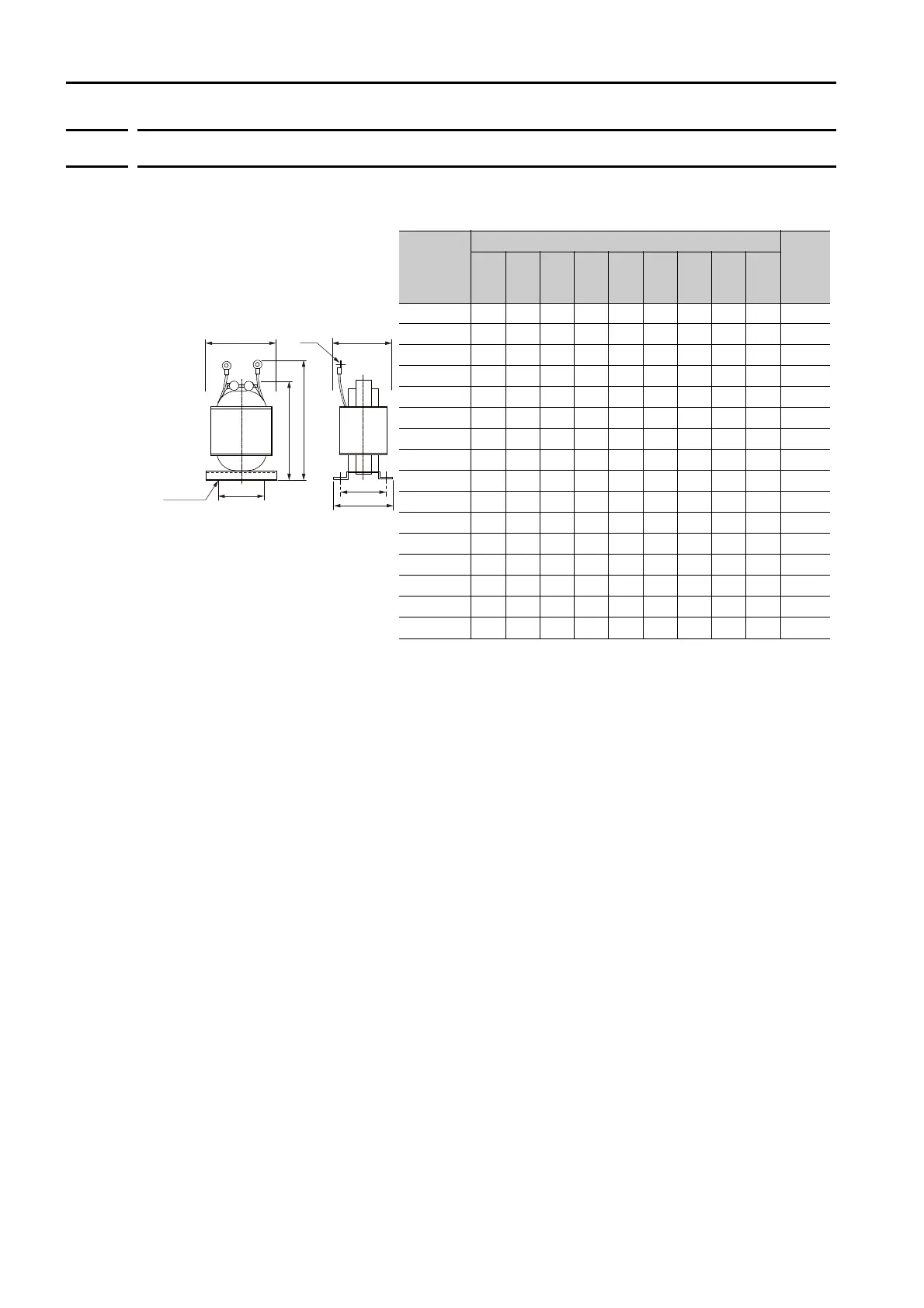

12.6.4 External Dimensions
12-30
12.6.4 External Dimensions
External Dimensions
A
B
D
G
E
F
I dia.
1 2
C
4 × H dia.
Notch
Unit: mm
AC/DC
Reactor
Order
Number
External Dimensions [mm]
Approx.
Mass
[kg]
A B C D E F G H I
X5053 35 52 90 105 35 45 50 4 4.3 0.6
X5054 35 52 80 95 30 40 45 4 4.5 0.4
X5056 35 52 80 95 30 40 45 4 4.3 0.4
X5059 50 74 125 140 35 45 60 5 5.3 1.1
X5060 40 59 105 125 45 60 65 4 4.3 1.0
X5061 35 52 80 95 35 45 50 4 4.3 0.5
X5068 50 74 125 155 53 66 75 5 6.4 1.9
X5069 40 59 105 125 45 60 65 4 4.3 1.0
X5070 40 59 100 120 35 45 50 4 4.3 0.8
X5071 35 52 80 95 30 40 45 4 4.3 0.5
X5078 50 74 125 155 60 70 80 5 5.3 2.0
X5079 50 74 125 140 35 45 60 5 4.3 1.2
X008025 75 95 155 225 55 70 76 4.5 6.4 2.6
X008026 75 95 155 225 60 75 81 4.5 6.4 2.9
X008027 75 95 155 215 70 85 91 4.5 6.4 3.5
X008028 75 95 160 225 80 95 101 4.5 6.4 4.0
