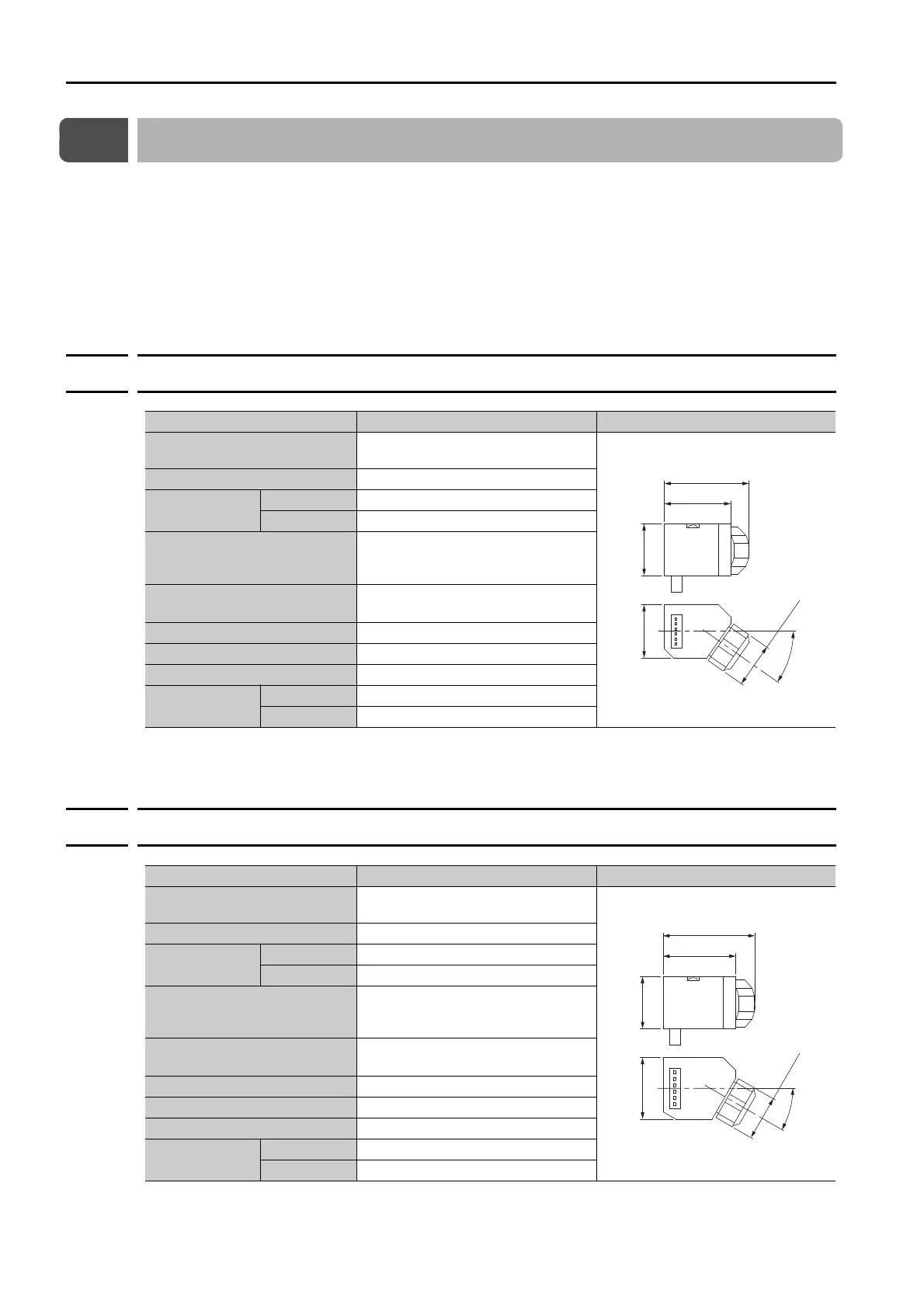

14.4 Optional Metal Connectors for Servomotor Main Circuit Cables
14.4.1 SGM7J and SGM7A (50 W to 150 W)
14-8
14.4
Optional Metal Connectors for Servomotor Main Circuit Cables
Servomotor Main Circuit Connectors with aluminum housings are available as options. You can
use them for SGM7J and SGM7A Servomotors. If you use shielded cables with main circuit
connectors that have aluminum housings, you can shield the cable and connector housing.
Note: 1. The connectors have an IP65 protective structure.
2. The cable installation direction is toward the load. Metal connectors are not available for connecting the
cable toward the non-load side.
3. The Metal Connectors are not available from Yaskawa Controls Co., Ltd. Order them directly from J.S.T.
Mfg. Co., Ltd.
14.4.1
SGM7J and SGM7A (50 W to 150 W)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
14.4.2
SGM7J and SGM7A (200 W to 600 W)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
Item Description External Dimensions [mm]
Applicable Servomotors
SGM7J-A5A, -01A, or -C2A
SGM7A-A5A, -01A, or -C2A
Manufacturer J.S.T. Mfg. Co., Ltd.
Order Number
Receptacle J17M-06FMH-7KL-M
Contacts SJ1F-01GF-P0.8
Applicable Wire Sizes
Power terminals: AWG20
Holding brake terminals: AWG20 to
AWG24
Outer Diameter of Insulating
Sheath
1.11 mm to 1.53 mm
Mounting Screws M2 pan-head screws
Applicable Cable Diameter 7 mm ±0.3 mm
User Instructions JFA Connector J-1700M
Crimping Tool*
Hand Tool YRS-8841
Applicator APLMK SJ1F/M01-08
(34.2)
26.3
20.4
21
17.6 dia.
35°
Item Description External Dimensions [mm]
Applicable Servomotors
SGM7J-02A, -04A, or -06A
SGM7A-02A, -04A, or -06A
Manufacturer J.S.T. Mfg. Co., Ltd.
Order Number
Receptacle J27M-06FMH-7KL-M
Contacts SJ2F-01GF-P1.0
Applicable Wire Sizes
Power terminals: AWG20
Holding brake terminals: AWG20 to
AWG24
Outer Diameter of Insulating
Sheath
1.11 mm to 1.53 mm
Mounting Screws M2 pan-head screws
Applicable Cable Diameter 7 mm ±0.3 mm
User Instructions JFA Connector J-2700M
Crimping Tool*
Hand Tool YRS-8861
Applicator APLMK SJ2F/M01-10
(36.9)
28.6
20.4
24.1
17.6 dia.
30°
