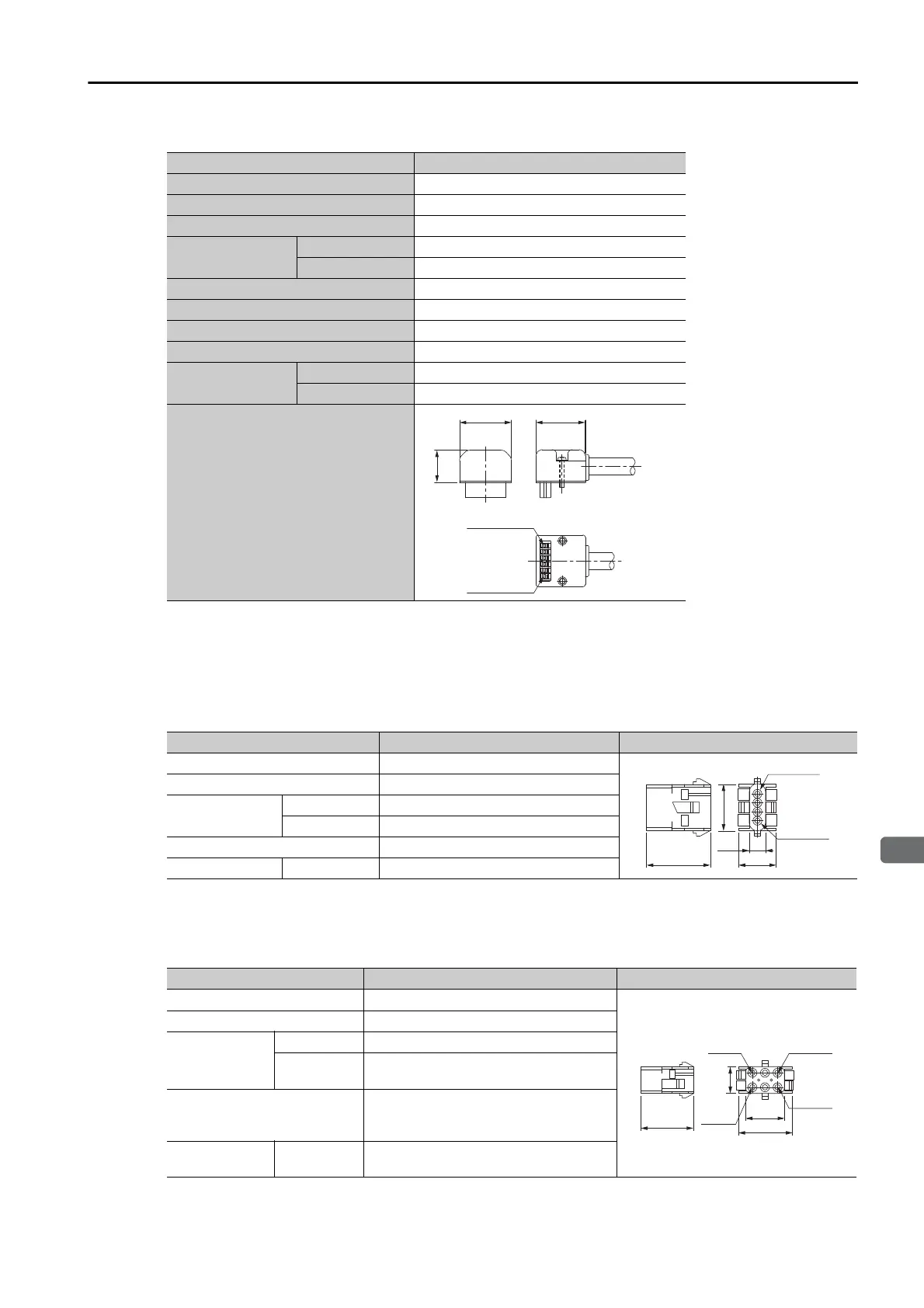

5.3 User-Assembled Wiring Materials for Servomotor Main Circuit Cables
5.3.1 Servomotor Connector Kits
5
Cables and User-Assembled Wiring Materials for SGM7P Rotary Servomotors
5-7
SGM7P-02 or -04 (200 W or 400 W)
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
SGM7P-08 or -15 (750 W or 1.5 kW)
For Servomotors without Holding Brakes
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
For Servomotors with Holding Brakes
* A Crimping Tool is required. Contact the connector manufacturer for details.
Note: Cables are not included. Purchase them separately.
Item Description
Order Number JZSP-CSM9-2-E
Manufacturer J.S.T. Mfg. Co., Ltd.
User Instructions JFA Connector J-2700
Components
Receptacle J27-06FMH-7KL-1M-CF
Contacts SJ2F-01GF-P1.0
Applicable Wire Sizes AWG20 to AWG24
Applicable Cable Diameter 7 mm ±0.3 mm
Outer Diameter of Insulating Sheath 1.11 mm to 1.53 mm
Mounting Screws M2 pan-head screws
Crimping Tool*
Hand Tool YRS-8861
Applicator APLMK SJ2F/MO1-10
External Dimensions [mm]
Item Description External Dimensions [mm]
Manufacturer Tyco Electronics Japan G.K.
Order Number JZSP-CMM9-3-E
Components
Cap 350780-1
Socket 350550-6
Applicable Wire Sizes AWG20 to AWG14
Crimping Tool* Hand Tool 90296-2
Item Description External Dimensions [mm]
Manufacturer Tyco Electronics Japan G.K.
Order Number JZSP-CSM9-5-E
Components
Cap 350781-1
Socket
Power terminals: 350550-6
Holding brake terminals: 350689-3
Applicable Wire Sizes
Power terminals: AWG20 to AWG14
Holding brake terminals: AWG24 to
AWG18
Crimping Tool* Hand Tool
Power terminals: 90296-2
Holding brake terminals: 90300-2
Pin 6
Pin 1
13
21 21
654 321
15.727.4
Pin 4
7.6
26.7
Pin 1
28.4
20.3
27.4
14
Pin 4
Pin 1
Pin 6
Pin 3
