7 Electrical Installation
YASKAWA TOEPC7106171FD FP605 DRIVE INSTALLATION & PRIMARY OPERATION 39
WARNING
Electrical Shock Hazard. Make sure that there is an electrical bond between the metallic conduit and the metallic
conduit mounting bracket after installation is complete. If there is not an electrical bond, it can cause injury or death from electrical
shock.
The procedures to wire the main circuit terminal block are different for different drive models. Refer to Table 7.3 for
procedures by drive model.
Table 7.3 Types of Wiring Procedure for the Main Circuit Terminal Block
Model
IP20/UL Type 1 or IP20/UL Open Type IP55/UL Type 12
Procedure Reference Procedure Reference
2011 - 2059
4005 - 4065
Procedure A 41 Procedure E 48
2075 - 2114
4077 - 4124
Procedure B 42 Procedure F 49
2143, 2169
4156
Procedure C 44 -
2211 - 2396
4180 - 4720
Procedure D 46 -
■ Notes on Wiring the Main Circuit Terminal Block of Models 2011 to 2059 and 4005 to 4065
Read these safety messages and notes before you wire the main circuit terminal block.
WARNING
Fire Hazard. Do not use bent or crushed wires. Remove the damaged end of the wire before you use it. Incorrect
connections can cause death or serious injury from fire.
WARNING
Fire Hazard. If you use stranded wire, make sure that all of the wire strands are in the connection. Also, do not
twist the stranded wire too much. Incorrect connections can cause death or serious injury from fire.
NOTICE
Do not solder stranded wire. Soldered wire connections can become loose over time and cause unsatisfactory
drive performance.
NOTICE
If you use power tools to tighten the terminal screws, use a low speed setting (300 min
-1
(r/min) to 400 min
-1
(r/
min)). High speeds can cause damage to the terminal screws.
NOTICE
Do not tighten the terminal screws at an angle of 5 degrees or more. Incorrect positioning can cause damage to
the terminal screws.

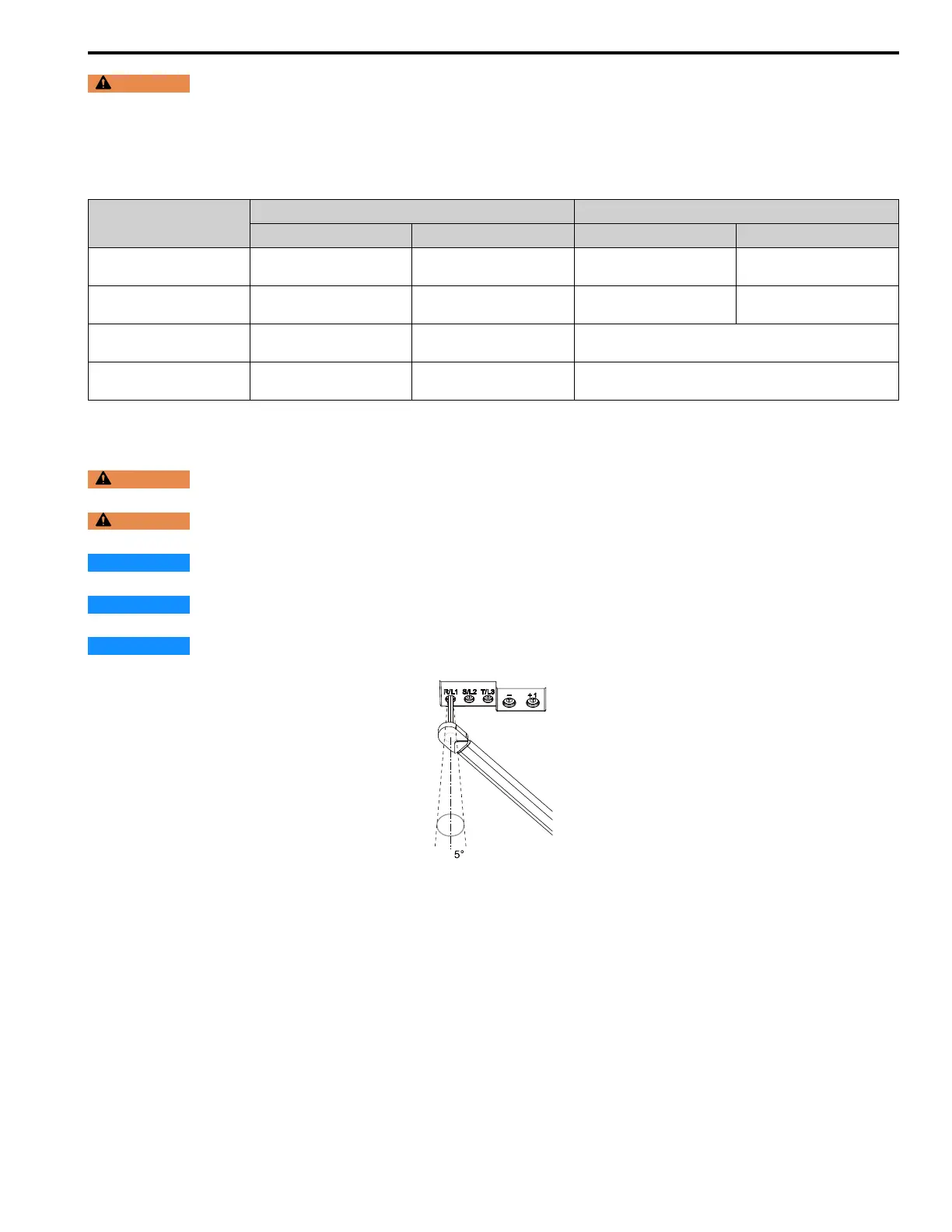

Figure 7.2 Permitted Angle
