YASKAWA L1000A Installation Manual

4 CANopen Lift Option Components
10 YASKAWA ELECTRIC SIEP YEUOCL1 01A CANopen-Lift Communication Option Installation Manual
■ Indicator Flash Rates

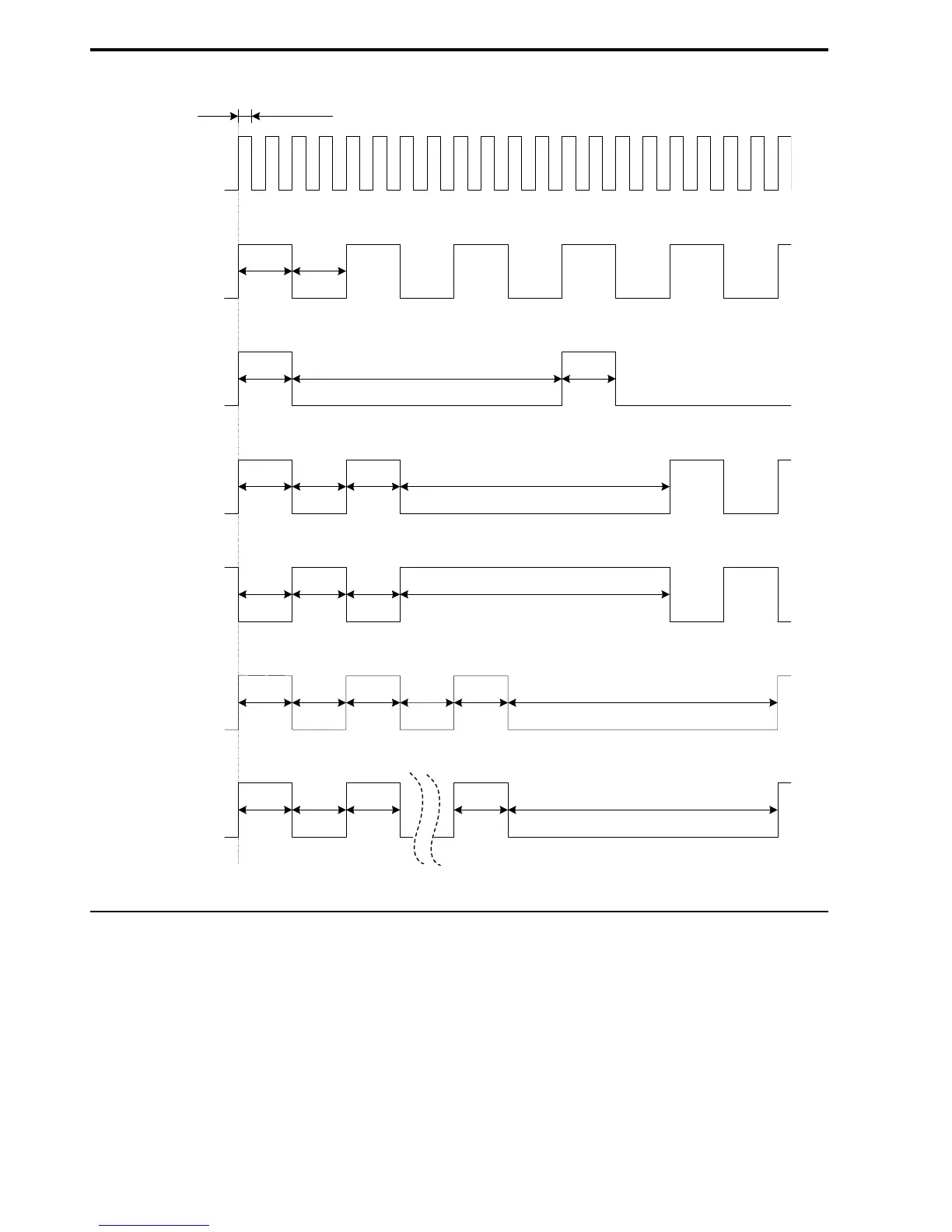

Figure 4.2 Meaning of LED Flash Rates
◆ Communication Connector
The Communication Option card is connected to the network using a 9 pin D-sub connector.
flickering
on
50 ms
200 ms
200 ms
200 ms 200 ms 200 ms
200 ms 200 ms 200 ms
200 ms 200 ms 200 ms
200 ms 200 ms 200 ms
200 ms 200 ms
200 ms
1 2 n
200 ms1000 ms
1000 ms
1000 ms
1000 ms
1000 ms
200 ms
off
on
off
on
off
on
off
on
off
on
off
on
off
blinking
single
flash
double
flash
triple
flash
n flashes
inverted
double
flash

YASKAWA L1000A Specifications

General

Model	L1000A
Category	Controller
Enclosure Rating	IP20
Input Voltage	200-240V, 380-480V
Control Method	V/f Control, Open Loop Vector Control
Application	Elevators
Voltage Class	200V, 400V
Safety	Safe Torque Off (STO)
Communication	CANopen, Modbus
Output Voltage	0 to Input Voltage
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Current Range	Varies by model (refer to datasheet)
Power Rating	Varies by model (refer to datasheet)
