4 CANopen Lift Option Components

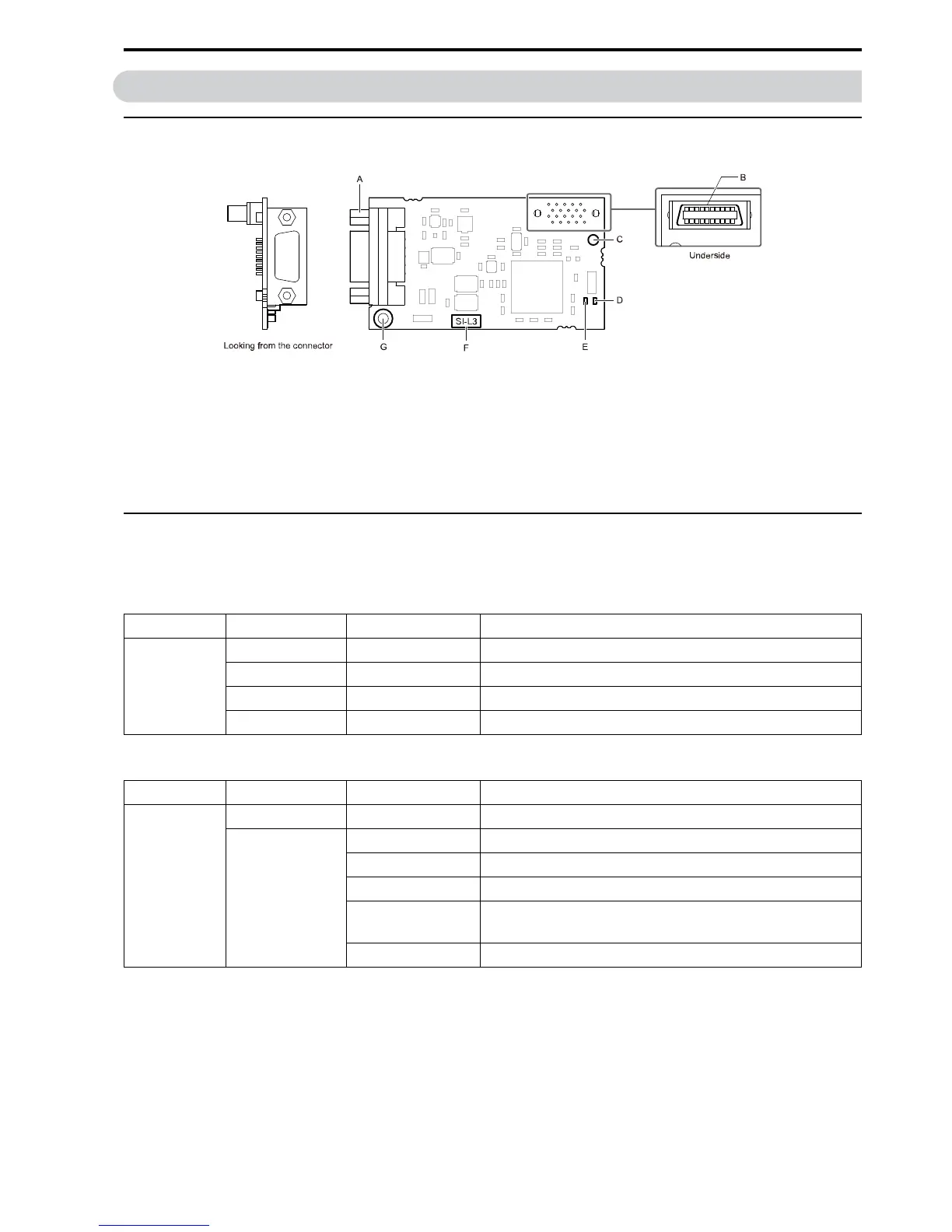

◆ CANopen Lift Option SI-L3
A - Communication cable connector
(9 pin D-sub)
B - Connector (CN5)
C - Installation hole
D - LED (RUN)
E - LED (ERR)
F - Model number
G - Ground terminal (installation
hole)
Figure 4.1 Option Card
◆ CANopen-Lift Option Status LEDs
The CANopen-Lift Option has two LEDs that indicate the communication status.
■ RUN LED
LED Color Display Meaning
RUN Green On The device is in Operational State.
Green Blinking The device is in Pre-Operational State.
Green Single flash The device is stopped.
Green Flickering Automatic bit rate detection in process.
■ ERR LED
LED Color Display Meaning
ERR – Off Online.
Red Blinking Bus initialization failed.
Single flash A fault has occurred. Receiving CAN error frames.
Double flash Guard / Heartbeat has occurred.
Flickering Automatic bitrate detection in process.
Flickers with RUN LED alternatively.
On Bus off.

YASKAWA L1000A Specifications

General

Model	L1000A
Category	Controller
Enclosure Rating	IP20
Input Voltage	200-240V, 380-480V
Control Method	V/f Control, Open Loop Vector Control
Application	Elevators
Voltage Class	200V, 400V
Safety	Safe Torque Off (STO)
Communication	CANopen, Modbus
Output Voltage	0 to Input Voltage
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Operating Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Current Range	Varies by model (refer to datasheet)
Power Rating	Varies by model (refer to datasheet)
