5 Troubleshooting
140 YASK AWA TOEPYAIL1E01A YASKAWA AC Drive L1000E Quick Start Guide

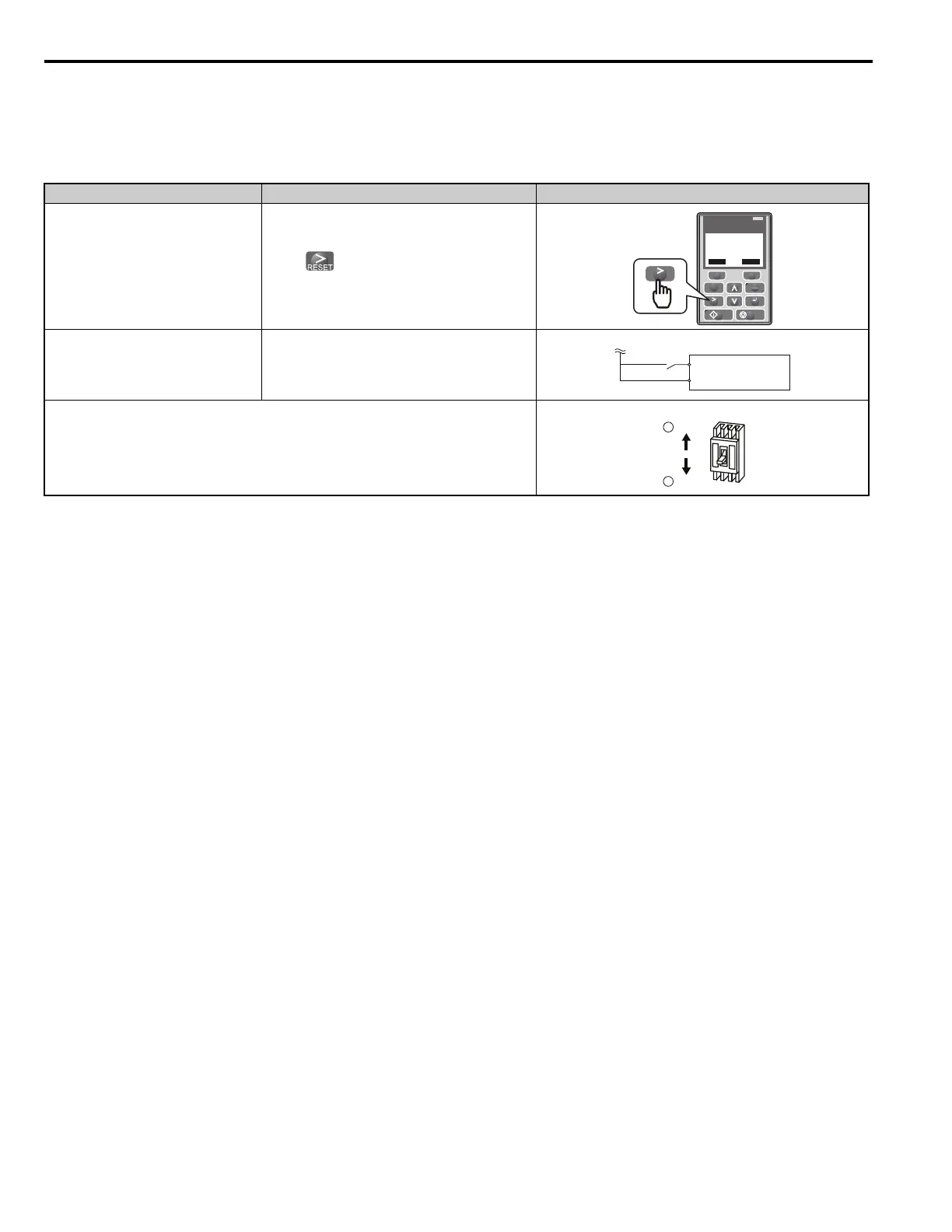

■ Fault Reset Methods
When a fault occurs, the cause of the fault must be removed and the drive must be restarted. The table below lists the
different ways to restart the drive.
Note: If the Up/Down command is present, the drive will disregard any attempts to reset the fault. Remove the Up/Down command
before attempting to clear a fault situation.
After the Fault Occurs Procedure
Fix the cause of the fault, restart the
drive, and reset the fault
Press on the digital operator when error
code is displayed.
Resetting via Fault Reset Digital
Input S4
Close then open the fault signal digital input via
terminal S4. S4 is set for “Fault Reset” as
default (H1-04 = 14).
If the above methods do not reset the fault, turn off the drive main power supply.
Reapply power after the digital operator display is out.
LO
RE
F2F1
ESC
RUN STOP
ENTERRESET
ALARM
DIGITAL OPERATOR JVOP-180
RESET
- MODE -
oC
Overcurrent
DRV
FWD
RESET
YEA
Fault Reset Switch
Drive
S4 Fault Reset Digital Input
SC Digital Input Common
ON
OFF
2
1
