◆ Digital Operator JVOP-180 Keys and Displays
Use the digital operator to enter Run and Stop commands, edit parameters, and display data including fault and alarm
information.
■
Keys and Displays

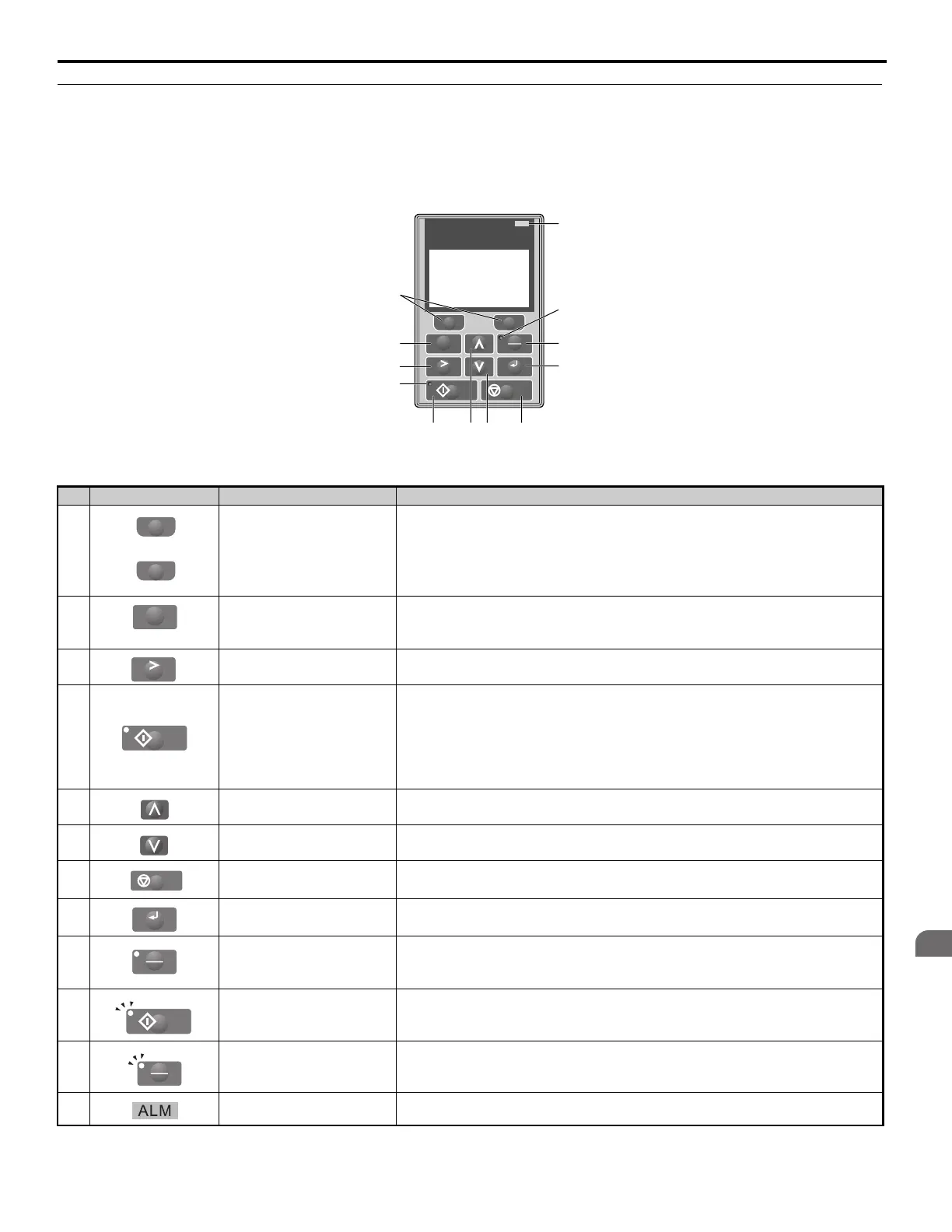

Figure 35
Figure 35 Keys and Displays on the Digital Operator
No. Display Name Function
1
Function Key
(F1, F2)
The functions assigned to F1 and F2 vary depending on the currently displayed menu.
The name of each function appears in the lower half of the display window.
2ESC Key
• Returns to the previous display.
• Moves the cursor one space to the left.
• Pressing and holding this button will return to the Speed Reference display.
3RESET Key
• Moves the cursor to the right.
• Resets the drive to clear a fault situation.
4 RUN Key
Starts the drive in the LOCAL mode.
The Run LED
• is on, when the drive is operating the motor.
• flashes during deceleration to stop or when the speed reference is 0.
• flashes quickly, the drive is disabled by a DI, the drive was stopped using a fast stop
DI, or an Up/Down command was active during power up.
5 Up Arrow Key
Scrolls up to display the next item, select parameter numbers, and increment setting
values.
6 Down Arrow Key
Scrolls down to display the previous item, select parameter numbers, and decrements
setting values.
7STOP Key
<1> Stops drive operation.
8 ENTER Key
• Enters parameter values and settings.
• Selects a menu item to move between displays.
9 LO/RE Selection Key <2>
Switches drive control between the operator (LOCAL) and the control circuit
terminals (REMOTE) for the Run command and speed reference. The LED is on
when the drive is in the LOCAL mode (operation from keypad).
10 RUN Light Lit while the drive is operating the motor. Refer to page 56 for details.
11 LO/RE Light
Lit while the operator is selected to run the drive (LOCAL mode). Refer to page 56
for details.
12 ALM LED Light Refer to ALARM (ALM) LED Displays on page 56.
