28 YASK AWA TOEPYAIL1E01A YASKAWA AC Drive L1000E Quick Start Guide
2. Pull forward on the terminal cover to free it from the drive.

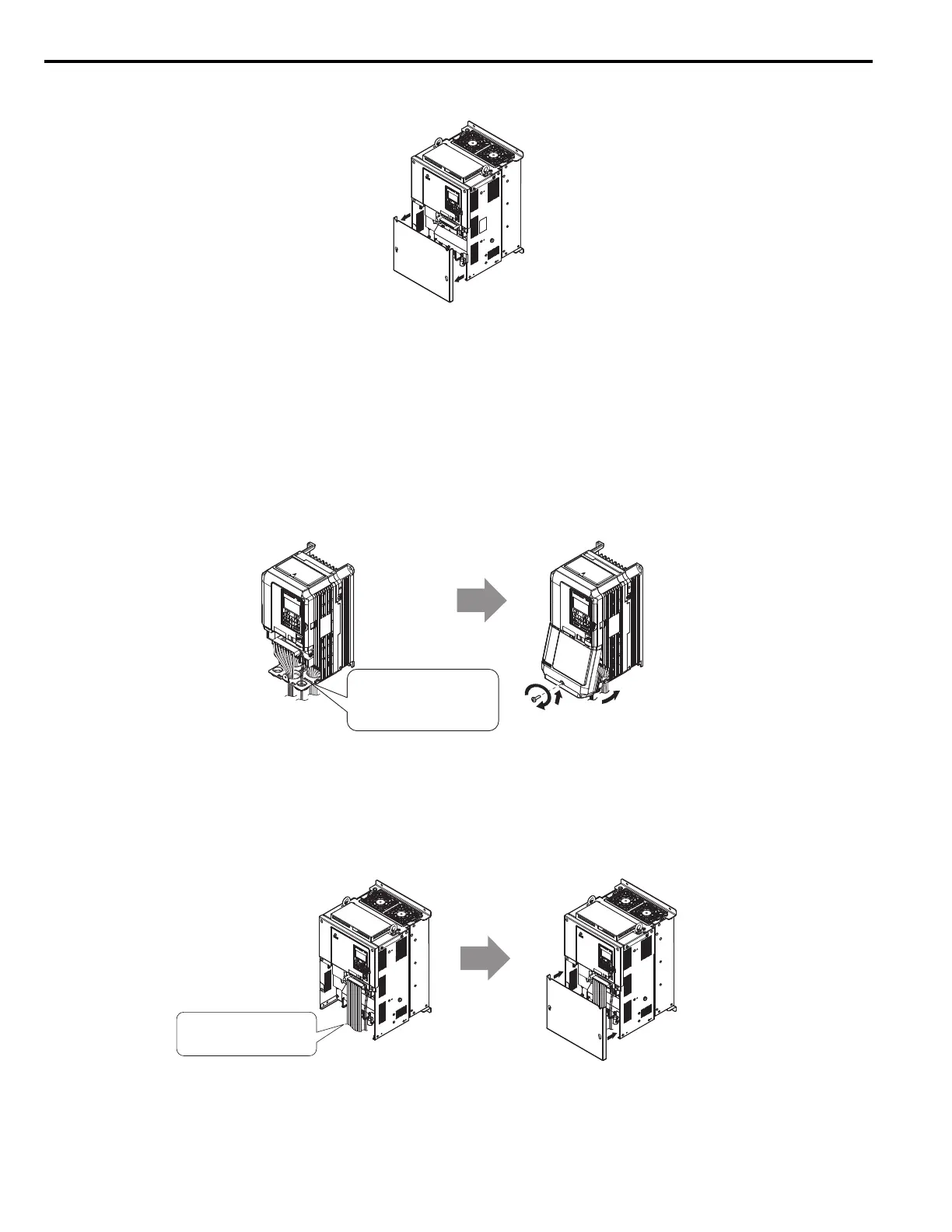

Figure 13
Figure 13 Removing the Terminal Cover
Reattaching the Terminal Cover
Models 2A0018 to 2A0094 and 4A0009 to 4A0049
Power lines and signal wiring should pass through the opening provided. Refer to Wiring the Main Circuit Terminal on
page 42 and Wiring the Control Circuit Terminal on page 46 for details on wiring.
NOTICE: Equipment Hazard. Separate motor and/or braking circuit wiring (terminals, U/T1, V/T2, W/T3, +3, +2, +1,(-), B1, B2, from all
other wiring. Place motor wiring within its own conduit or cable tray with appropriate divider, and use shielded motor cable where
appropriate. Improper wiring practices could result in malfunction of drive due to electrical interference.
Reattach the terminal cover after completing the wiring to the drive and other devices.
Figure 14
Figure 14 Reattaching the Terminal Cover
Models 2A0106 to 2A0432 and 4A0056 to 4A0260
After wiring the terminal board and other devices, double-check connections and reattach the terminal cover. Refer to
Wiring the Main Circuit Terminal on page 42 and Wiring the Control Circuit Terminal on page 46 for details on
wiring.
Figure 15
Figure 15 Reattaching the Terminal Cover
Connect ground wiring first,
followed by the main circuit,
and then wire the control circuit.
Power lines and signal wiring
exit through the opening provided.
Connect ground wiring first,
followed by the main circuit,
and then wire the control circuit.
