5 Installation Procedure
26 YASKAWA ELECTRIC TOBP C730600 75B YASKAWA AC Drive Option PG-B3 Installation Manual
3.
Insert the option card (B) into the CN5-B (H) or CN5-C (I) connector on the drive
and fasten it into place using the included screws (C). Tighten both screws to 0.5 to
0.6 Nm (4.4 to 5.3 in. lbs).
Use the CN5-C connector (I) when connecting only one option to the drive; use both
CN5-B (H) and CN5-C when connecting two options.
Note: Installing the option card on a GA700, CR700, and CH700 drive requires only two screws and
does not require a ground wire. The option package ships with three screws and ground wires for
installation on other drive series. Do not use the ground wire or the extra screw.

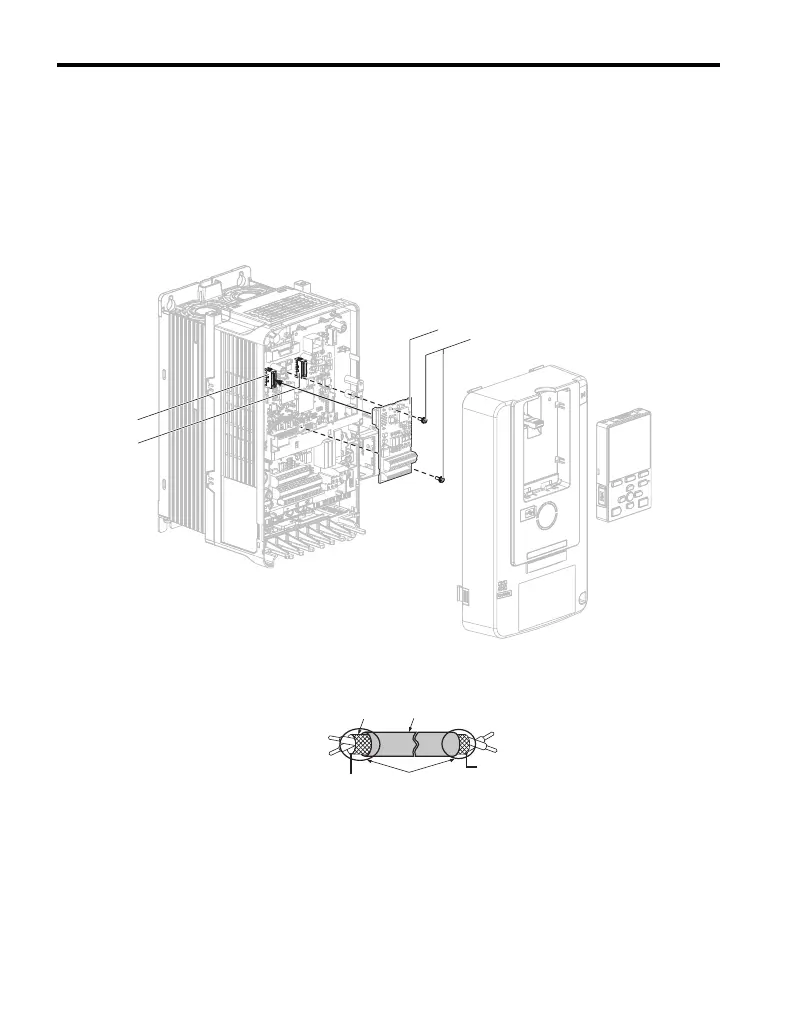

Figure 15
Figure 15 Insert the Option Card
4.
Prepare the wire ends as shown in Figure 16.
Figure 16
Figure 16 Prepare Ends of Shielded Cable
C
I
B
H
Insulation
Shield sheath
Shield
PG option terminal
PG at moto
FE/SD
Ground Terminal
(Insulate with electrical tape
or heat-shrink tubing)
